Sub Fuel Tank swap over.

My TB42 GQ maverick lwb has a 70ltr sub tank. due to lpg.
And my TD42t GU lwb has the std 32 ltr sub.
Wondering if They could be swapped over?.

Obviously the transfer pump needs to stay in GU, custom bracket I suppose.
The idea is, would be a cheaper way of increasing range on GU than installing expensive long range or rear bar carrier.
This would also put load between the axles not increase weight behind rear axle, or decrease ground clearance or departure angle.
Just an idea, some input please peoples. :gossip:

I'm looking at doing b the same..
Unfortunately it's not a simple swap due to floor differences..

From initial looks the gq tank had a top peice that is the expansion area..
The stock gu don't have this..
So I'm thinking that's why people say the fit if you have a body lift in to fit the gq Long Range tank to a gu..

I plan to remove mine..
I'll also insert the fast fill breather a touch lower to allow expansion..

But this is reducing tank capacity.. so it may only be 70l in the end..

Quote:

---

Originally Posted by bigguwesty

I'm looking at doing b the same..
Unfortunately it's not a simple swap due to floor differences..

From initial looks the gq tank had a top peice that is the expansion area..
The stock gu don't have this..
So I'm thinking that's why people say the fit if you have a body lift in to fit the gq Long Range tank to a gu..

I plan to remove mine..
I'll also insert the fast fill breather a touch lower to allow expansion..

But this is reducing tank capacity.. so it may only be 70l in the end..

---

My GQ tank is basically rectangular with the round riser on top for gauge & expansion.
It doesn't have the extensions at the rear of tank like some larger sub tanks.
Thanks for the heads up on top floorpan clearance issue.

Quote:

---

Originally Posted by Robo

My GQ tank is basically rectangular with the round riser on top for gauge & expansion.
It doesn't have the extensions at the rear of tank like some larger sub tanks.
Thanks for the heads up on top floorpan clearance issue.

---

What brand is that one?

Quote:

---

Originally Posted by bigguwesty

What brand is that one?

---

Not sure & don't remember any brands or stickers on it when I cleaned it out a couple yrs ago.
has filler and drain on rear end , breather on top expansion.

Fair enough.
I think brown Davis are much square'er than LRA.
I also noticed the gu tank mounts on both ends.
My Lra mounts to the cross member and the to 2 other chassis points..

Actually I think it holds something like 73 ltrs but I just rounded it to 70.
I'm going to be replacing GQ rear lower arms soon so I plan to measure and take pics same time.
I need to remove, or partially remove tank to do arms anyway.
wont be this weekend.

U bracket on tank front, u open end facing forward.
bracket and saddle on the rear.
& they both fit onto the cross bars.

Just looked a D browns site its a bit like it but DB has the extension at the rear mines shorter.
front mounting is identical to mine.

Attachment 67028.
pic is db lr tank longer than mine

Yeah as Kallen said about the riser part on the GQ Aux tank. This part fouls with the floor on a GU, and I think the hole in the GU floor to access the sender unit doesn't line up with the GQ LRT.

Quote:

---

Originally Posted by mudski

Yeah as Kallen said about the riser part on the GQ Aux tank. This part fouls with the floor on a GU, and I think the hole in the GU floor to access the sender unit doesn't line up with the GQ LRT.

---

Yes, the holes are located in different places.

Sent from my XT1033

The gu had a hatch??
Well there ya go

Quote:

---

Originally Posted by bigguwesty

The gu had a hatch??
Well there ya go

---

Hope it hatches out a dirty big V8 diesel

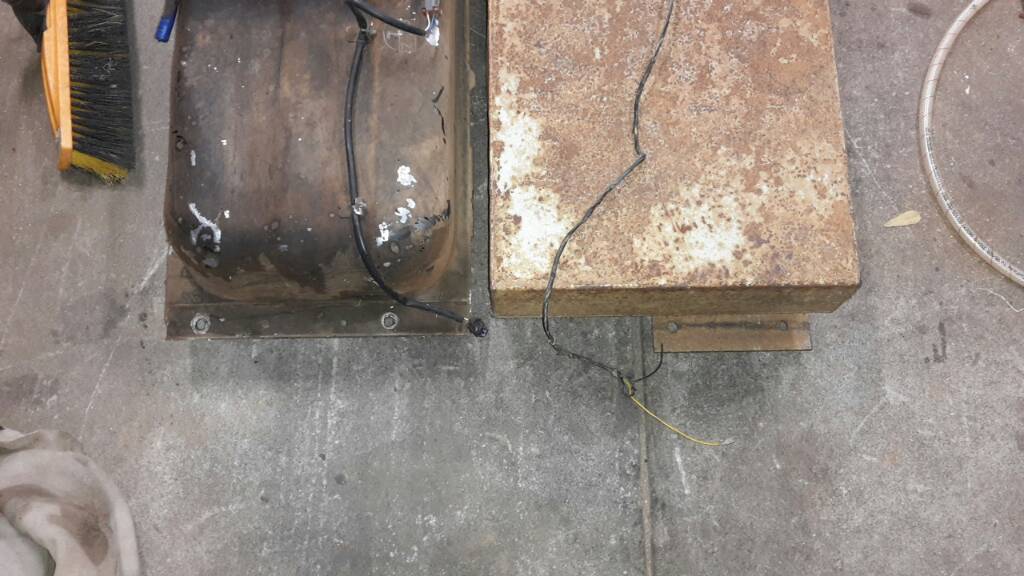

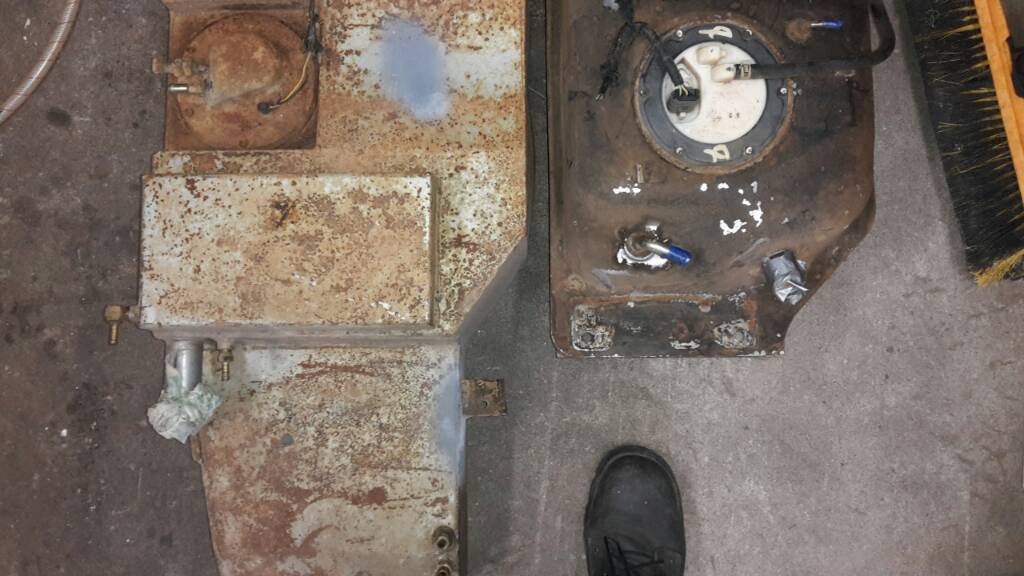

Ok so taken some pics today side by side..
Unfortunately it's going to take more work than I deem worthy imo..
The Lra tank needs to be shortened as the back of the tank will foul the cross member, the top hatch needs modifying, and then breather lines moved..

Then (and I've never really niticed this) they hang hell low!!!
Imo a tank needs to be level with the chassis.. the sub tanks seem to sit 50-60mm below...

http://www.nissanpatrol.com.au/forum...2016/06/56.jpg
http://www.nissanpatrol.com.au/forum...2016/06/57.jpg
http://www.nissanpatrol.com.au/forum...2016/06/58.jpg
http://www.nissanpatrol.com.au/forum...2016/06/59.jpg

Have a pic some where of the sub tank when I replaced the sender unit.
but have attached a mod of your pic.
Attachment 67351

Found partial pic of my GQ sub tank.
Attachment 67352

Quote:

---

Originally Posted by Robo

Found partial pic of my GQ sub tank.
Attachment 67352

---

Is that sender on a raiser?

Quote:

---

Originally Posted by bigguwesty

Is that sender on a raiser?

---

Yes and guessing also the expansion area as it's completely flat otherwise.
