If you look up the part # it says for GQ / GU 1995 on-wards, but my 1992 GQ has this setup and don't think it was done by the previous owners before me, Say maybe it was only done on the TI's up until 1995, but in saying that doesn't explain why yours doesn't being a 97Quote:
Originally Posted by PeeBee
Hi MudRunner, first of brilliant thread thanks for taking the time to do this. I've read this thing from start to finish but I can't seem to find if you actually did replace the parts from the first pic with the white crosses like the O'ring, Lock washer and snap ring? My kit doesn't have them and am wondering if you can get away without replacing them?
Thanks
Gday mate. I just had a look at the diagram and you will be fine mate. Snap ring is fine unless you damage it. The l9ck washer is the same, only replace if you have killed it. It just bends over t9 lock the nut so not too concerning. If you bought a good kit like Terrain Tamer it will come with everything you need. If your kit did not come with Wheel Bearings you should invest and do them too.Quote:
Originally Posted by Duggoo
Good luck. Any dramas yell out mate, happy to help.
amazing<<<
Darren, Well presented mate and would offer something to many of us. The pics are certainly an improvement on those in my trusty old Haynes.
I will not be doing a a complete teardown of knuckle flange assy. A few yrs back replaced wheel bearings and recently changed out rotors and pads. What I will be doing is going in and replacing the inner axle seal, repacking wheel bearing and replacing the hub dust seal.
Looking for a heads up of method to remove the inner axle seal "only", with knuckle flange assy still in place. Have not yet stripped it down and no worries in getting to it. Any comment for inner axle seal removal would help?
Just follow MRs steps up to number 4.... Last time I did my seal, we left the knuckle on. Just undid the king bearing plate so we could also repack those bearings with grease and cleaned out all the diff oil that had leaked in.Quote:
Originally Posted by Bidja
Sounds like the go, thanks for that.Quote:
Originally Posted by Clunk
Clunk, I have had the CV/axle out previously to inspect/re grease but did not pop the seal. Can U go in and get in behind seal and hook it toward you?
Yes but the CV must be taken out first. Once out your good to go. Then the Lip Seal removal tool featured in the first post is your best friend.Quote:
Originally Posted by Bidja
Yeah do the job nicely, where a screw driver just won't do this one.Quote:
Originally Posted by MudRunnerTD
Thanks so much for this post mud runner! Good to see the comments are still going strong after all these years!
I just finished rebuilding my swivel hubs only on a GUII with manual locking hubs.
Love ya work
Finding this thread very helpful so thank you Mudrunner.
But would you happen to know the part number for the CV brass washer? I cant find it anywhere :(
Hi mate, If your struggling i would re-use the one you have mate. they are not really a wear item.Quote:
Originally Posted by Hash1112
It's damaged pretty bad due to breaking the cv, I'll try to hammer and straighten it may be.
Thanks for the reply bud I really appreciate what you have done in this thread.
Dunno where you are mate but I have a pair of them at home in Gippsland VictoriaQuote:
Originally Posted by Hash1112
Sent from my SM-G960F using Tapatalk
Hey Winnie, thanks mate, I just bought a second hand CV and the bloke gave the washer with it :D
Thanks so very much for this. So easy to follow :)
After doing all this I'm not sure what oil for the front diff. The hub is an auto locking thingo ma Bob... how can ya tell if the diff is lsd or not? Just worried about using the wrong oil :)
Cheers
as far as i know there is not front lsd patrol diffs, only rears. mechanics have told me you can put the same rear lsd oil into the front so thats what i do. i think its more expensive because its lsd but i dont pay for it
Thanks a billion MD. Your posts helped me rebuild my swivels. I bought my 96 gq with serious diff oil leak comin out swivel. I think i did it right cause its not leakin any more😅
Ok so i took these pics last year and thought i had uploaded them but did not.
Here are dome pics for removing the king pin bearings 2 different ways.
Option 1 needs a bearing removal clamp and a vice.
http://www.nissanpatrol.com.au/forum...019/03/284.jpg
http://www.nissanpatrol.com.au/forum...019/03/285.jpg
http://www.nissanpatrol.com.au/forum...019/03/286.jpg
http://www.nissanpatrol.com.au/forum...019/03/287.jpg
Install in vice loosely so it is just sitting in there hanging from the clamp
Punch and hammer.
http://www.nissanpatrol.com.au/forum...019/03/288.jpg
http://www.nissanpatrol.com.au/forum...019/03/289.jpg
http://www.nissanpatrol.com.au/forum...019/03/290.jpg
http://www.nissanpatrol.com.au/forum...019/03/291.jpg
http://www.nissanpatrol.com.au/forum...019/03/292.jpg
Easy job.
Lmm grease is great for the wheel bearings and CV
http://www.nissanpatrol.com.au/forum...019/03/293.jpg
Option 2 is to use a pair of pointy nose pliers and a flat screw driver. 3 points of contact make light work of it
http://www.nissanpatrol.com.au/forum...019/03/294.jpg
Remove the lip seal under the bearing. Just wreck it and rip it out. This makes space for the pliers
http://www.nissanpatrol.com.au/forum...019/03/295.jpg
http://www.nissanpatrol.com.au/forum...019/03/296.jpg
http://www.nissanpatrol.com.au/forum...019/03/297.jpg
http://www.nissanpatrol.com.au/forum...019/03/298.jpg
http://www.nissanpatrol.com.au/forum...019/03/299.jpg
The taper on the pliers will do the work here. Wedge in and work it.
http://www.nissanpatrol.com.au/forum...019/03/300.jpg
Screw driver from the other side.
http://www.nissanpatrol.com.au/forum...019/03/301.jpg
http://www.nissanpatrol.com.au/forum...019/03/302.jpg
Wahlah.
http://www.nissanpatrol.com.au/forum...019/03/303.jpg
http://www.nissanpatrol.com.au/forum...019/03/304.jpg
Sent from my SM-G955F using Tapatalk
I have a also embedded the above post into post 5 of this thread where it should be in the process. Hope it helps gent.
Cracker write up, helped out heaps!
Great write up, thank you MudRunner. One question for the experts, can you test the preload of your kingpins with the removal of the brake disk and rear wiper seals with just the CV and front dust guard in place?
Yes i would think so. To be honest i always just check them by Hand and Feel and have been pretty happy to do it that way.Quote:
Originally Posted by timmay556
Thanks mate. you are super helpful.
Cheers
Thanks for taking the time of putting this up
Great info. Thank you champ.
I’m going to be doing the wheel bearings on GU this weekend. I saw a vid by terrain tamer where he tensioned the wheel bearings then he hit the edges of the tyre with a sledge Hamer then checked for movement. Which there was then he tightened them again.
Is that a good method of seating them????
Any ideas would be great. Cheers
Thanks for the detailed step by step with pics. Much appreciated
Just to add more clarity the copper washer all so needs greasing
Thanks Heaps Mudrunner ,,just made the whole job that much easier!! appreciate it!
Hi there, awesome detailed write up, been studying this thread & doing my GQ at the same time getting all the necessary info from the write up, 2 thumbs up for taking the time to share MudRunner....
Now there’s a question coming...
Attachment 79668

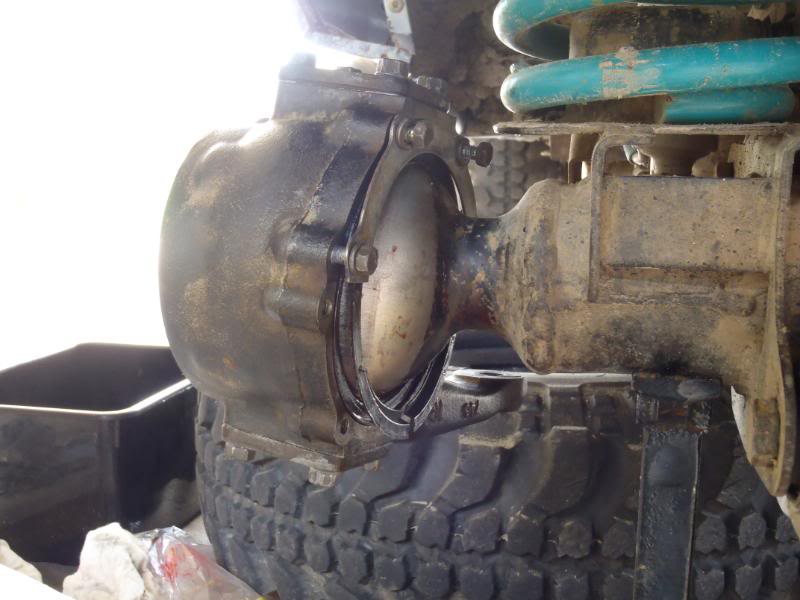

The Nissan GQ Patrol manual shows the seal guard(s) being inserted vertically, not horizontally (your pics shows it inserted horizontally), can you plz clarify & confirm?
That is interesting. Where did you get that pic?? If you refer to the first page you will see.the diagram I use is horizontal. Note also there is a pic clearly showing the back of the swivel hub with them bolted up. The bolt pattern will dictate them anyway. They will only go 1 way.Quote:
Originally Posted by Kon
I believe it’s from the Nissan Patrol GQ/GU manual that Nissan released...Quote:
Originally Posted by MudRunnerTD
Interesting because mine are also like yours in the picture...., horizontal...
Here is the full page of the screenshot
Attachment 79670Attachment 79669
As you can see in these pics the bolt pattern suggested in the image is clearly not correct either.Quote:
Originally Posted by MudRunnerTD
As you can see there though, it will only go 1 way.
Yup my actual GQ is exactly like yours as shown in the above post...Quote:
Originally Posted by MudRunnerTD
With respects to the scraper seal & supporting ring, do you have the incision facing up or down?
The manual shows it facing down, others have mentioned it should face up, one member has mentioned to me that it should face down to allow any water to be dispersed in case it enters the swivel knuckle area.
What are your thoughts?
P.S.
Which bolt hole do you use for the 1 special/different looking bolt (stopper bolt) at the back for the scraper seal guards?
I fit them to the bottom as per the photo above but the swivel hub is sealed and there should be No Water ingress. If water gets in there then your stripping it out anyway for the contaminant.Quote:
Originally Posted by Kon
Which bolt hole do you use for the 1 special/different looking bolt (stopper bolt) at the back for the scraper seal guards?Quote:
Originally Posted by MudRunnerTD
Just went out and grabbed some photos for you mate.Quote:
Originally Posted by Kon

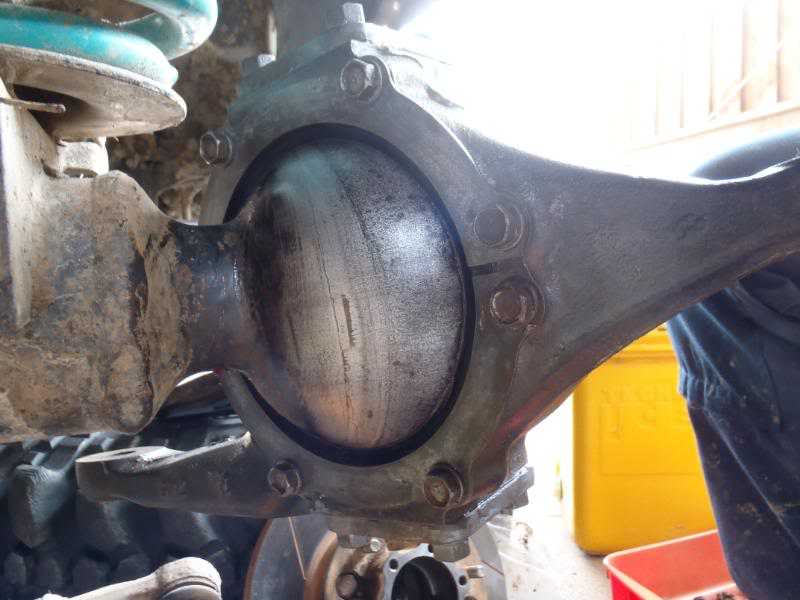

View from behind diff on GU
http://www.nissanpatrol.com.au/forum...2019/11/97.jpg
The steering stop bolt in on the front side on both sides. Clearly visible in these pics.

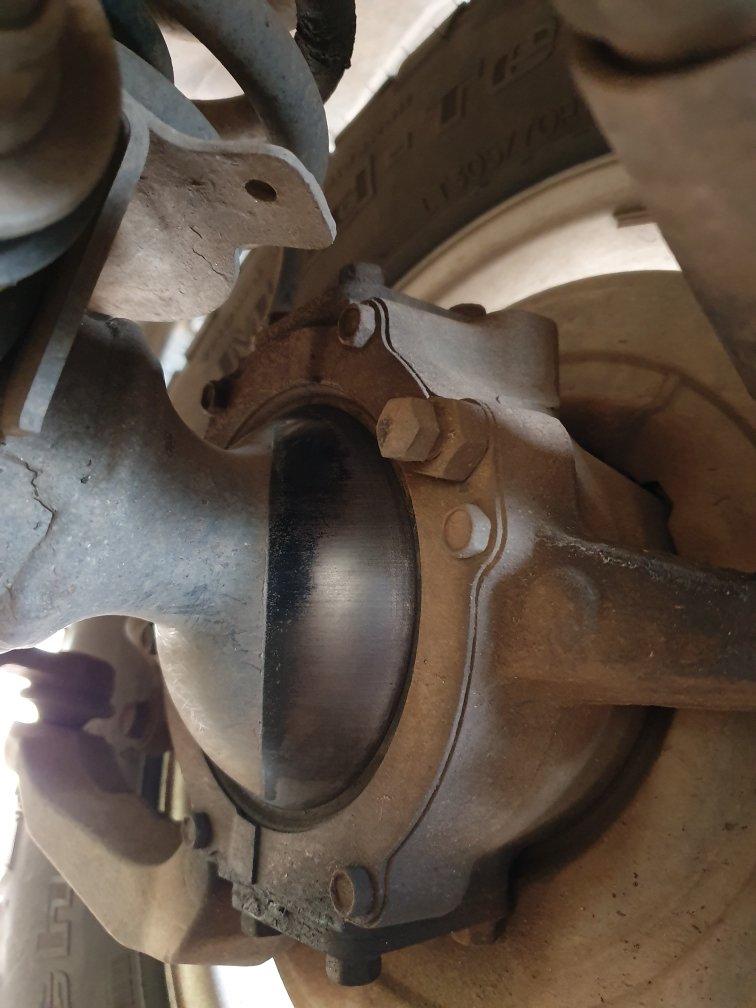

http://www.nissanpatrol.com.au/forum...2019/11/98.jpg
http://www.nissanpatrol.com.au/forum...2019/11/99.jpg
And my GQ also runs a GU diff with that same setup.

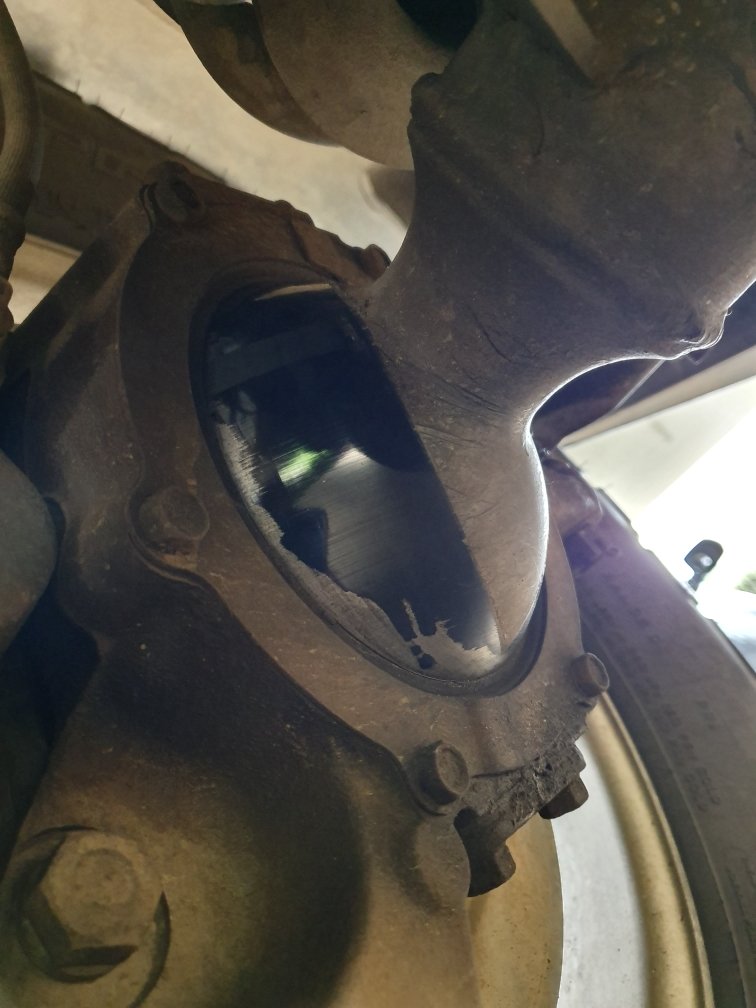

http://www.nissanpatrol.com.au/forum...019/11/100.jpg
Sorry I can't confirm the GQ is the same but I'm nearly 100%
Sent from my SM-G977B using Tapatalk

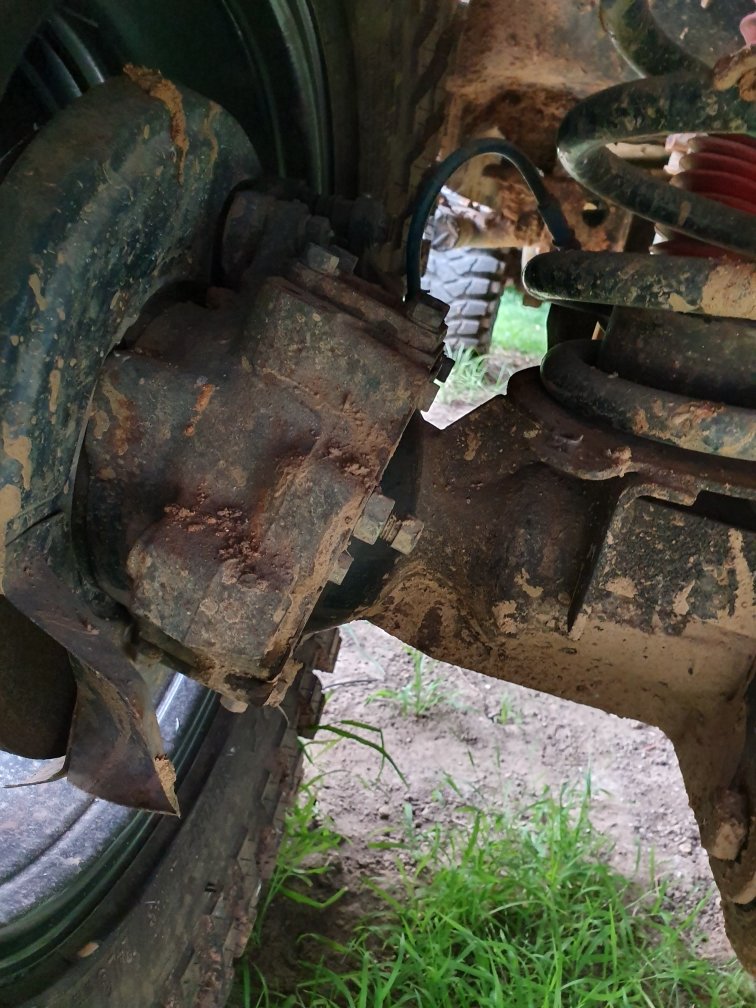

Note from this photo of my GU that Nissan changed from Horizontal to Vertical from GQ to GU. Learn something every day.Quote:
Originally Posted by Kon

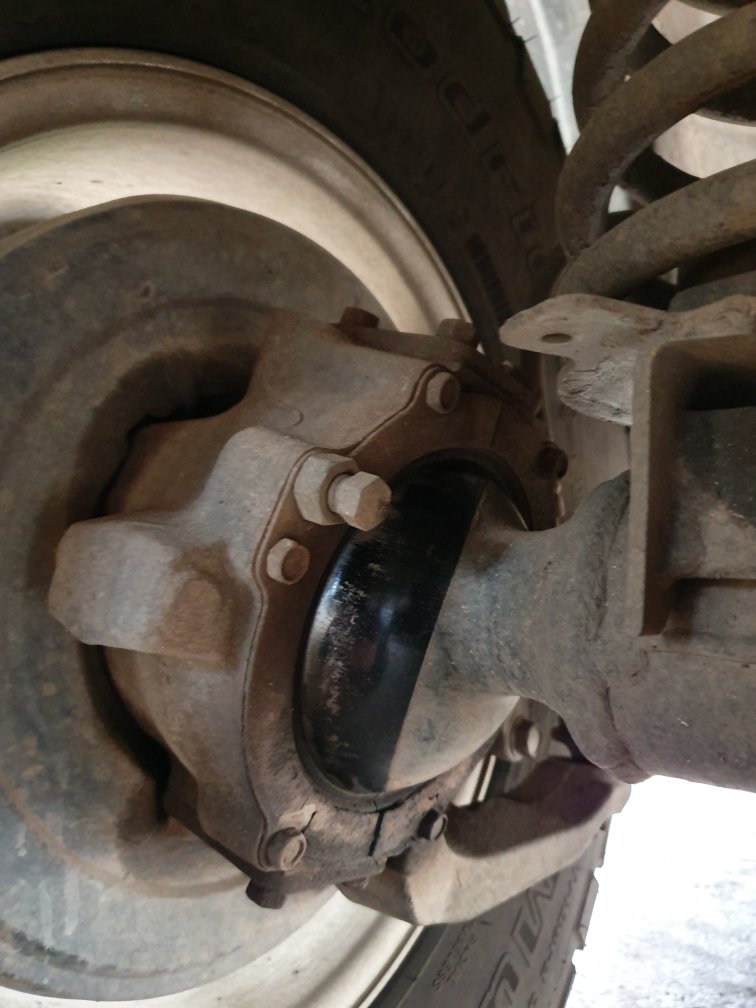

http://www.nissanpatrol.com.au/forum...019/11/101.jpg
Sent from my SM-G977B using Tapatalk

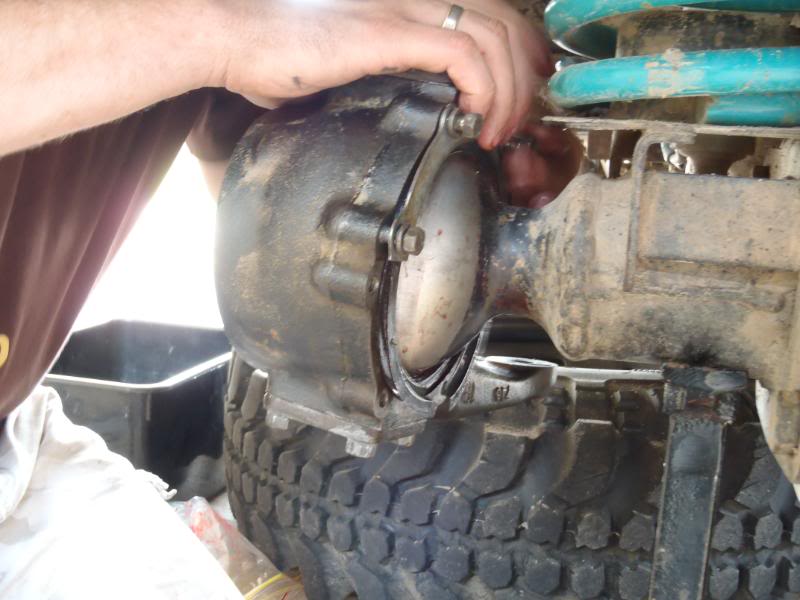

http://www.nissanpatrol.com.au/forum...019/11/102.jpg
Ok, so I thank you for assisting with the above pictures...Quote:
Originally Posted by MudRunnerTD
Seems like mine are exactly like yours...
I am about to do the rebuild (I’ve got everything just want to get my head around things before I attempt)...
