Belvo Twin locked gu coilcab re build

After selling my gq coilcab I needed another patrol asap so found this 99 gu coilcab in rough condition but with heaps of extras so jumped right on to it.
It is a 99 dx coil cab td42 twin locked 4.6 diff gears warn high mount 5 inch lift custom bullbar and tray.

The paint was terrible on the car when I got it most of it was peeling and surface rust on the roof.
Also had a bent tierod arm some flogged out bushes and leaking swivel hub.
So far I have stripped back all the flogged paint and fixed any rust and dents
Ordered new tierod extended bump stops new paint sound deadening and underlay
And a few other things.

Put up some photos mate .

When I picked it up
Attachment 74614Attachment 74613

True iron, das monstro!
Looks great mate!

OH the dreaded Nissan Paint ! I don't wash mine with the steam cleaner ! ( it all falls off 2005 GU11)

The paint was terrible striped back the roof in no time and most of the doors and bonnet.
Painting it with lic40 so should be nice and durable once it's done.

A few pics of the worst of the damage.
Striped it all back and was only surface rust so that was a bonus. http://www.nissanpatrol.com.au/forum...018/02/146.jpghttp://www.nissanpatrol.com.au/forum...018/02/147.jpghttp://www.nissanpatrol.com.au/forum...018/02/148.jpghttp://www.nissanpatrol.com.au/forum...018/02/149.jpghttp://www.nissanpatrol.com.au/forum...018/02/150.jpg

Sent from my SM-G950F using Tapatalk

Managed to remove the tray and bullbar my self and while the tray was off I re rained the chassis in kill rusthttp://www.nissanpatrol.com.au/forum...018/02/151.jpghttp://www.nissanpatrol.com.au/forum...018/02/152.jpghttp://www.nissanpatrol.com.au/forum...018/02/153.jpghttp://www.nissanpatrol.com.au/forum...018/02/154.jpghttp://www.nissanpatrol.com.au/forum...018/02/155.jpg

Sent from my SM-G950F using Tapatalk

The high mount the ute cane with just going to leave it the way it is seems to. Work fine.
Painter the diff yesterday and the rest of the chassis.
And applied some stone guard on the underside of the car so hopefully painting this week. http://www.nissanpatrol.com.au/forum...018/02/156.jpghttp://www.nissanpatrol.com.au/forum...018/02/157.jpghttp://www.nissanpatrol.com.au/forum...018/02/158.jpg

Sent from my SM-G950F using Tapatalk

Installed a new steering arm today and 80 series extended bump stops.
Tried to install the rear bump stops. But every bolt was snapped so will have to sort that out.

And also discovered my shocks are are in need of updating. If anybody has shocks to suit a 5 inch lift let me know. http://www.nissanpatrol.com.au/forum...018/03/101.jpghttp://www.nissanpatrol.com.au/forum...018/03/102.jpg

Sent from my SM-G950F using Tapatalk

Looking good mate. can you post another pick of the HiMount winch showing detail of the Drum end? is that a Freespool of some description or just a bearing end home made or something. Its clearly done some work and has a 6HP motor on it and extended Drum so keen to see what else.

Quote:

---

Originally Posted by MudRunnerTD

Looking good mate. can you post another pick of the HiMount winch showing detail of the Drum end? is that a Freespool of some description or just a bearing end home made or something. Its clearly done some work and has a 6HP motor on it and extended Drum so keen to see what else.

---

Hey mate honestly don't know much about the winch I know it has a 6hp motor extended drum i think the bloke made it his self as he was a boiler maker and it has a pinned free spool. http://www.nissanpatrol.com.au/forum...018/03/118.jpg

Sent from my SM-G950F using Tapatalk

Quote:

---

Originally Posted by Belvo

Hey mate honestly don't know much about the winch I know it has a 6hp motor extended drum i think the bloke made it his self as he was a boiler maker and it has a pinned free spool. http://www.nissanpatrol.com.au/forum...018/03/118.jpg

Sent from my SM-G950F using Tapatalk

---

Kool. Yeah looks like a crude bearing end but it would work great and reduce the friction. Can you show me the brake shaft too.

Looking alot cleaner now ...luv the tray n barwork

Quote:

---

Originally Posted by MudRunnerTD

Kool. Yeah looks like a crude bearing end but it would work great and reduce the friction. Can you show me the brake shaft too.

---

The break clutch thing has a bit of movement in it so I think that might need replacing. http://www.nissanpatrol.com.au/forum...018/03/133.jpghttp://www.nissanpatrol.com.au/forum...018/03/134.jpg

Sent from my SM-G950F using Tapatalk

Quote:

---

Originally Posted by Belvo

The break clutch thing has a bit of movement in it so I think that might need replacing. http://www.nissanpatrol.com.au/forum...018/03/133.jpghttp://www.nissanpatrol.com.au/forum...018/03/134.jpg

Sent from my SM-G950F using Tapatalk

---

Look at that! That's a cracker mate. Grease nipple on your bearing end. I like it. The brake assembly is on a taper shaft and is supposed to be loose when not engaged. The brake shaft is standard on that winch and has not been upgraded and sghou I'd be considered the weakest link. Clearly done some work. Should serve you well.

Managed to fit new 80 series bump stops in the rear all the nuts snapped so just welded studs to the chassis.
And also added some 2 inch coils the 5 inch lift was to big.http://www.nissanpatrol.com.au/forum...018/03/207.jpghttp://www.nissanpatrol.com.au/forum...018/03/208.jpghttp://www.nissanpatrol.com.au/forum...018/03/209.jpg

Sent from my SM-G950F using Tapatalk

Just a few updates.
Installed some fox ifp shocks 10inch from and 12 rears.
Gonna have to raise my shock mounts to get the most out of them with a 2-3 inch lift.
And started painting the cab today I've never painted anything before but it seemed to come out alright just a bit orange peely and some dust fell on the roof but hopefuly I can cut all that out.
And some extra photos of my dodgy extraction fans 1 6 inch in line fan 1 8 inch inline fan.
And a old ducted heater haha.
Works alright but could be better. http://www.nissanpatrol.com.au/forum...2018/04/35.jpghttp://www.nissanpatrol.com.au/forum...2018/04/36.jpghttp://www.nissanpatrol.com.au/forum...2018/04/37.jpghttp://www.nissanpatrol.com.au/forum...2018/04/38.jpghttp://www.nissanpatrol.com.au/forum...2018/04/39.jpghttp://www.nissanpatrol.com.au/forum...2018/04/40.jpg

Sent from my SM-G950F using Tapatalk

looks good like your extraction unit ! what a great idea .I will steal that ... I have to paint mu GU as well as it has the great quality Nissan paint . Mine comes off with the pressure washer !!
Its a 2005 ! . What sort of paint are you using ? don't have to much fun ...

Mines a 99 and the paint was rubbish it was just peeling of.
I'm using valspar lic40 I chose it because it's a industrial paint that's tough as and was realy cheap like $200 for 4 liters colour matched with activator and thinners.
Ended up having a few defects in the paint missed a few spots in the roof and blotchy so I'll. Have to fox that later. http://www.nissanpatrol.com.au/forum...2018/04/49.jpghttp://www.nissanpatrol.com.au/forum...2018/04/50.jpghttp://www.nissanpatrol.com.au/forum...2018/04/51.jpghttp://www.nissanpatrol.com.au/forum...2018/04/52.jpghttp://www.nissanpatrol.com.au/forum...2018/04/53.jpg

Sent from my SM-G950F using Tapatalk

Looking good belvo
Will pop past and check it this week
Georgie

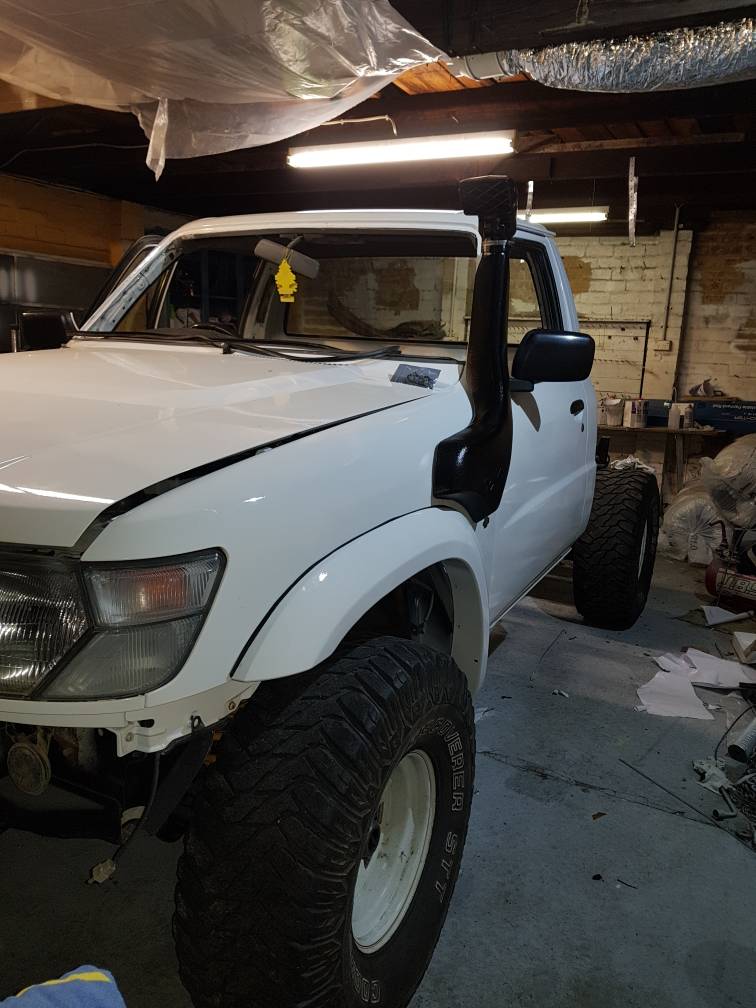

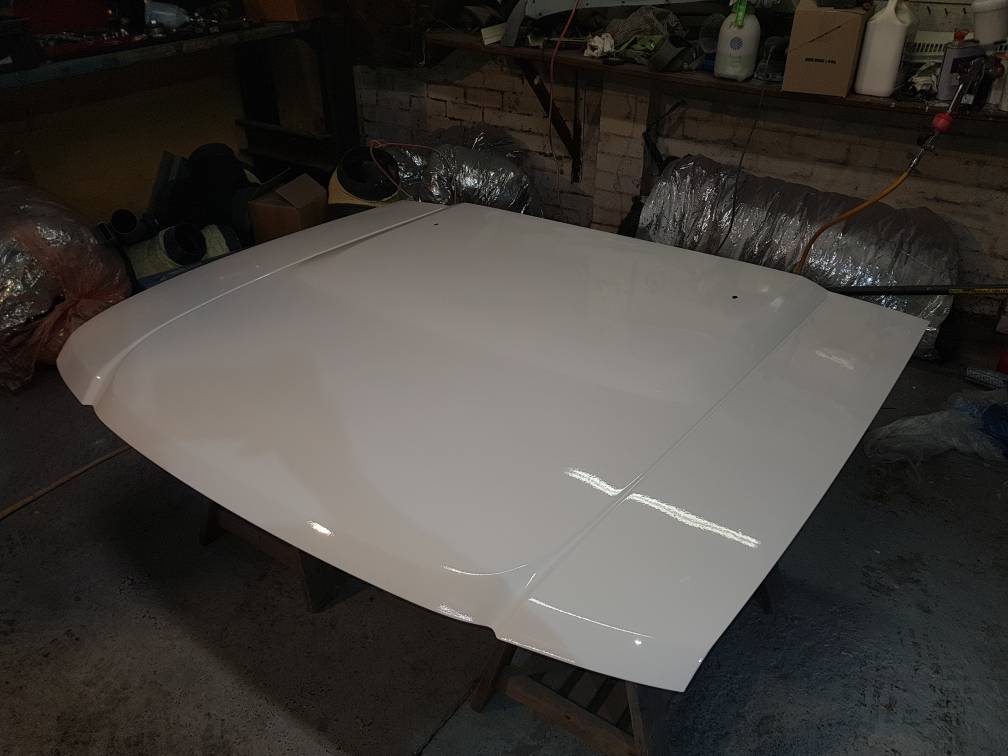

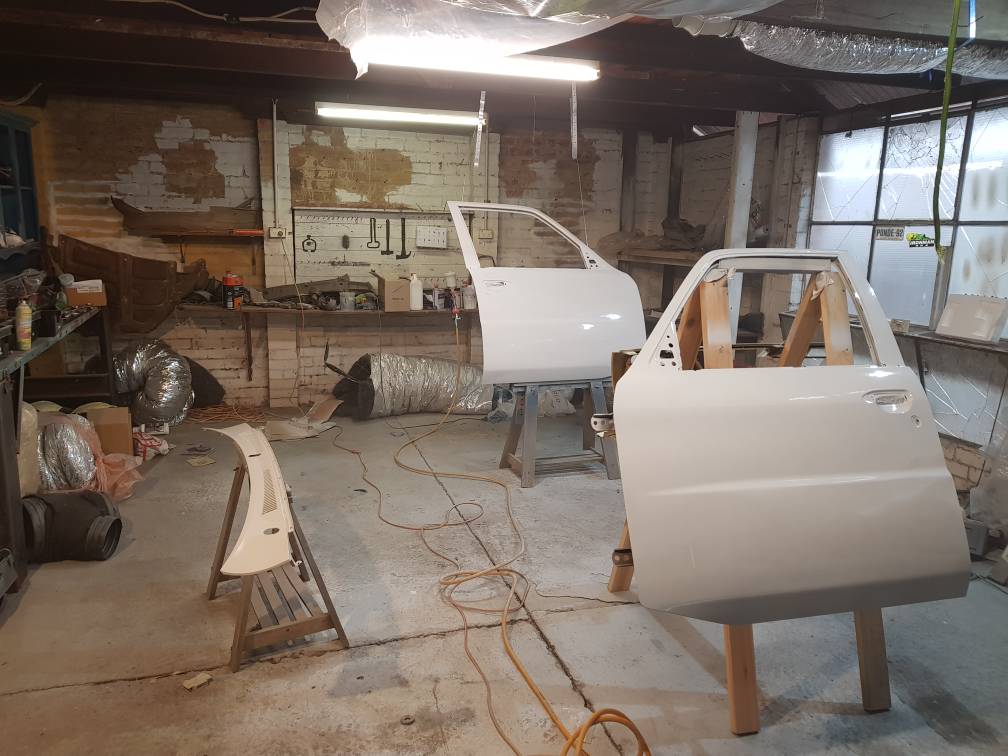

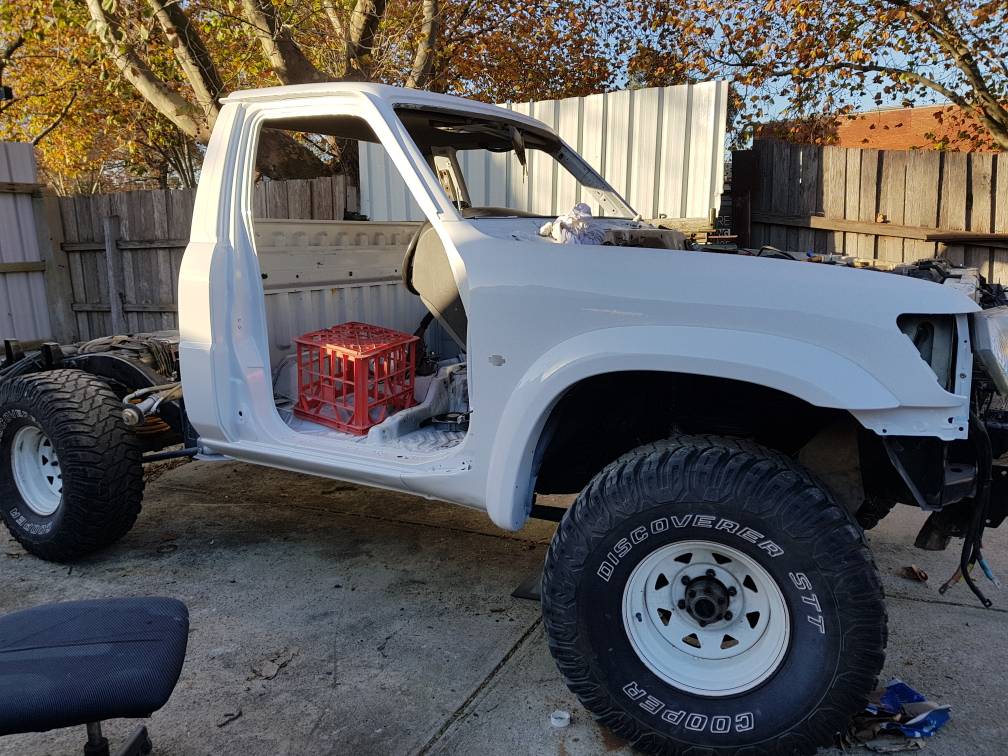

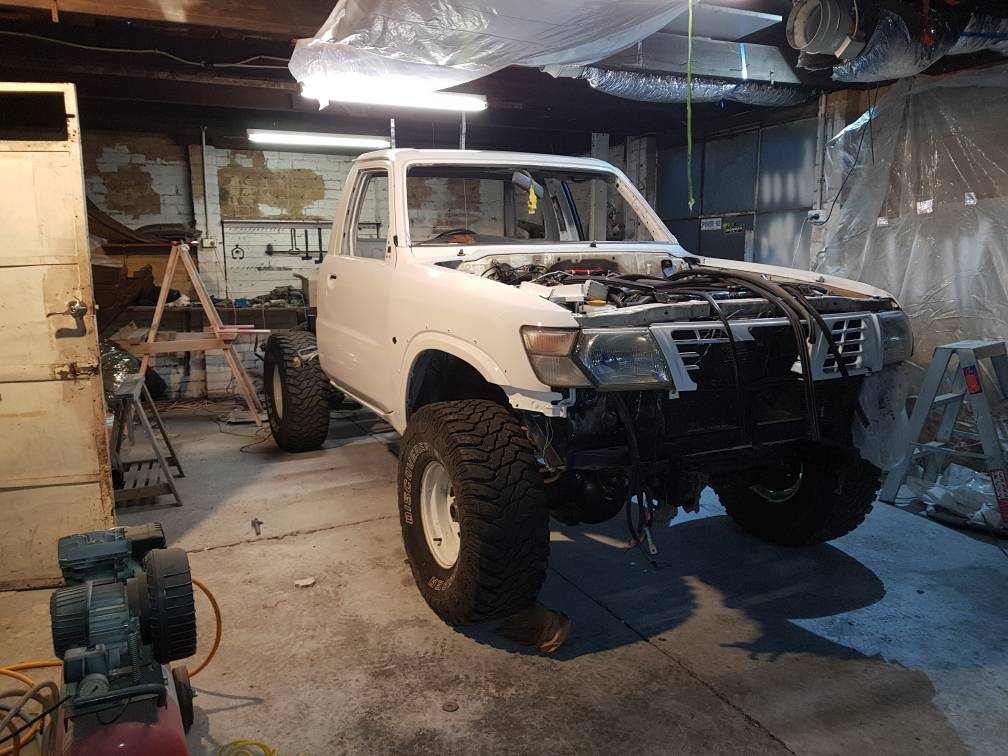

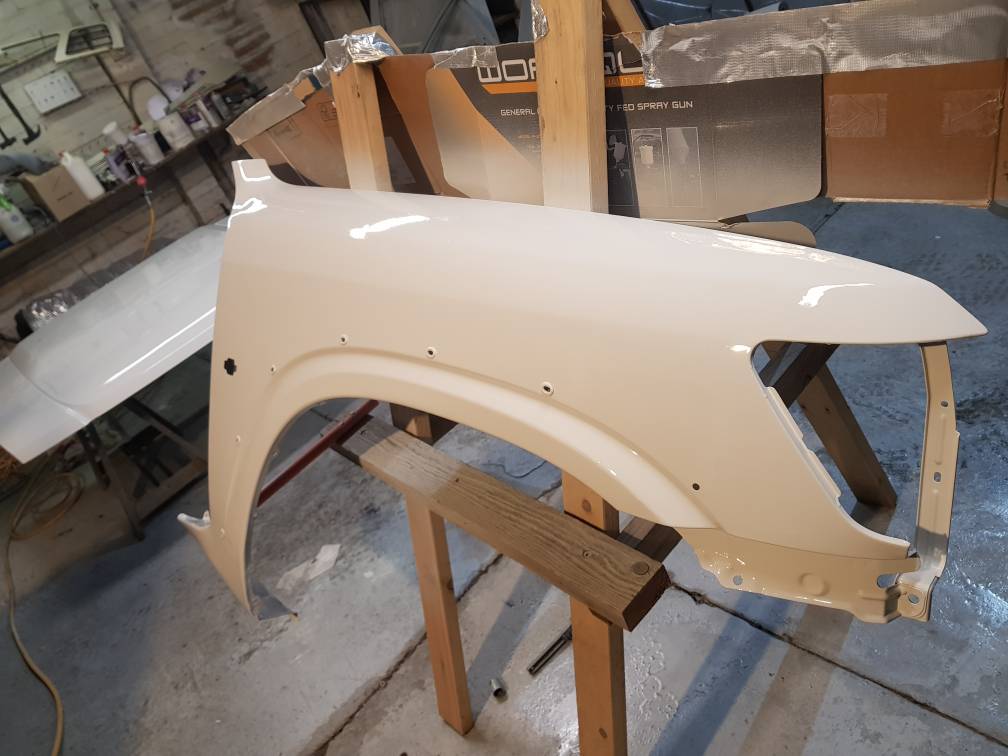

Work had been slow lately but the past few weeks I kicked in and finished a fair bit painted everything the doors bonnet guards.

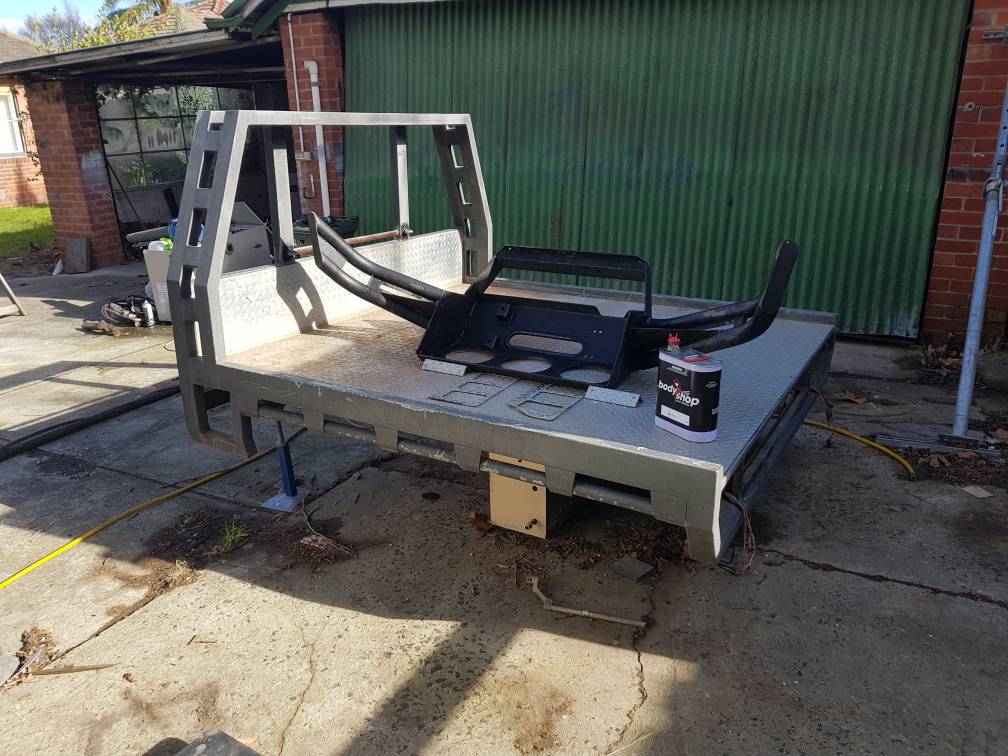

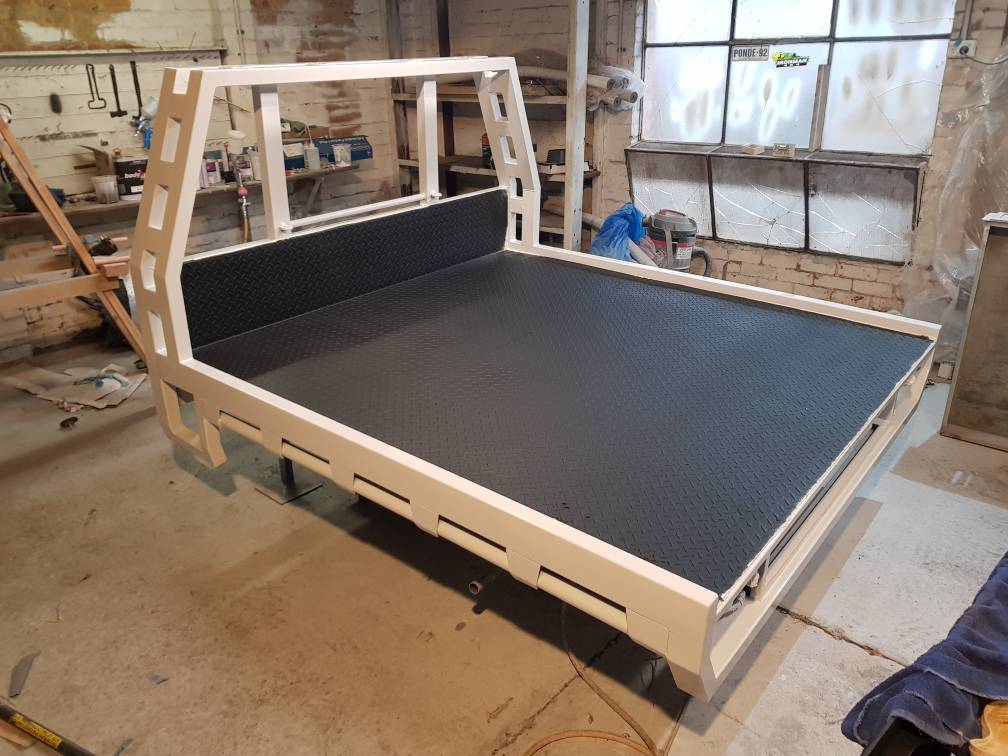

Sand blasted the tray and bullbar.
Painted tray and bar.
Re installed interior new windscreen.
Just need to get a roady and rego it now. http://www.nissanpatrol.com.au/forum...2018/07/86.jpghttp://www.nissanpatrol.com.au/forum...2018/07/87.jpghttp://www.nissanpatrol.com.au/forum...2018/07/88.jpghttp://www.nissanpatrol.com.au/forum...2018/07/89.jpghttp://www.nissanpatrol.com.au/forum...2018/07/90.jpghttp://www.nissanpatrol.com.au/forum...2018/07/91.jpghttp://www.nissanpatrol.com.au/forum...2018/07/92.jpghttp://www.nissanpatrol.com.au/forum...2018/07/93.jpghttp://www.nissanpatrol.com.au/forum...2018/07/94.jpghttp://www.nissanpatrol.com.au/forum...2018/07/95.jpg

Sent from my SM-G950F using Tapatalk

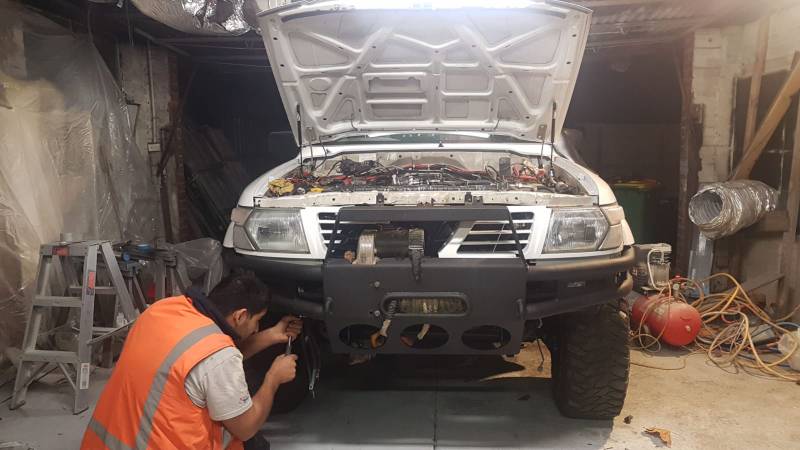

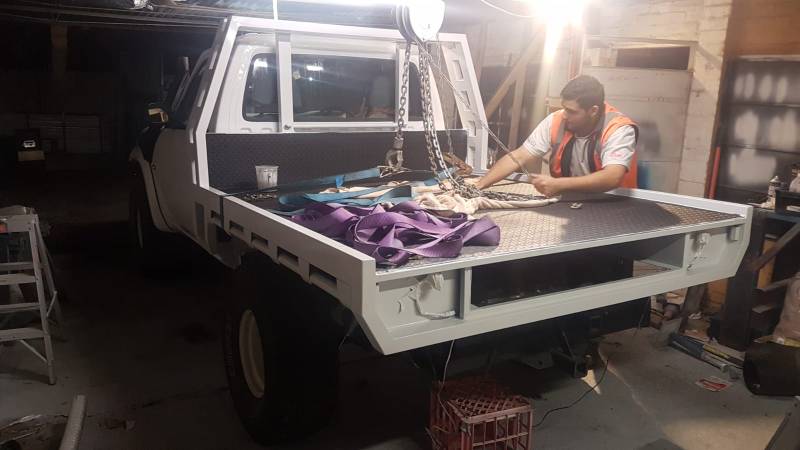

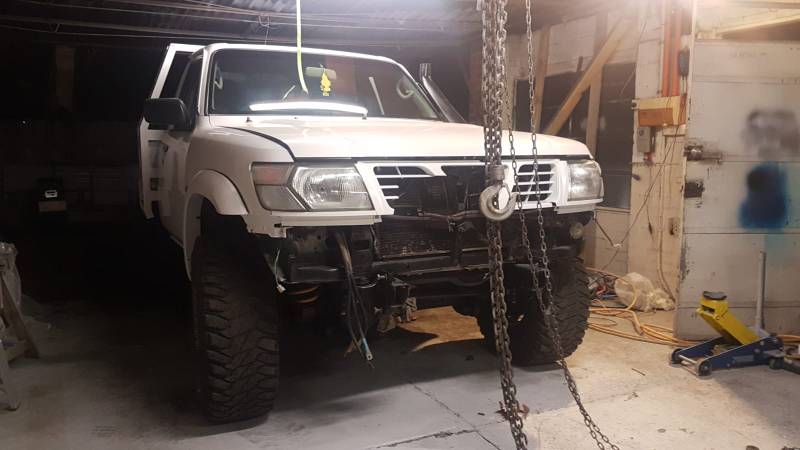

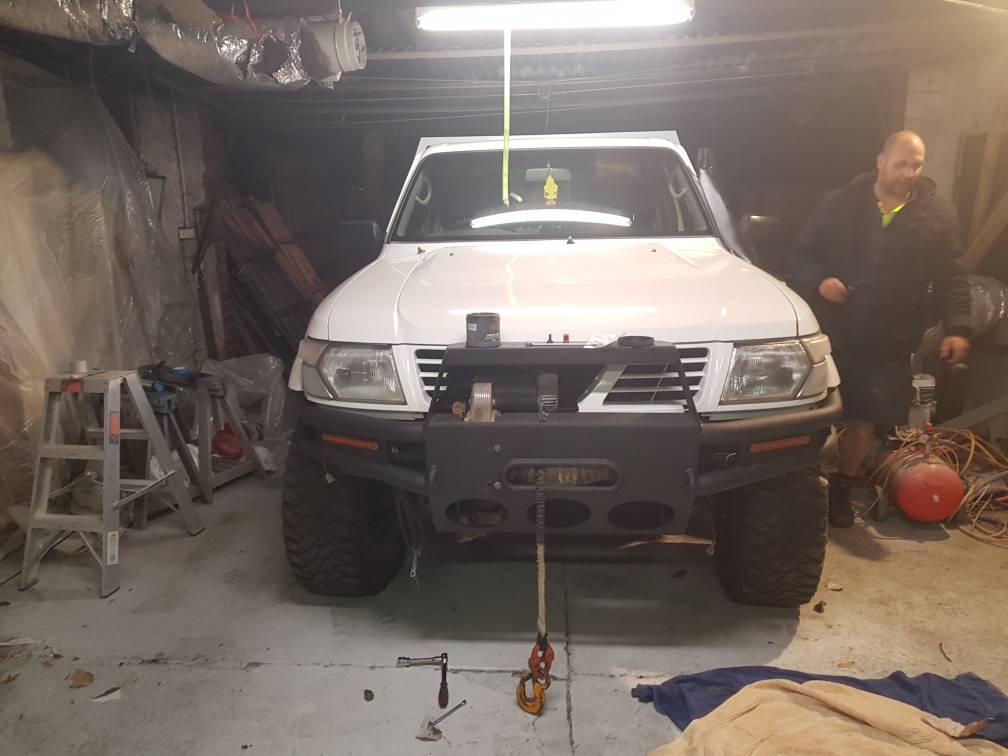

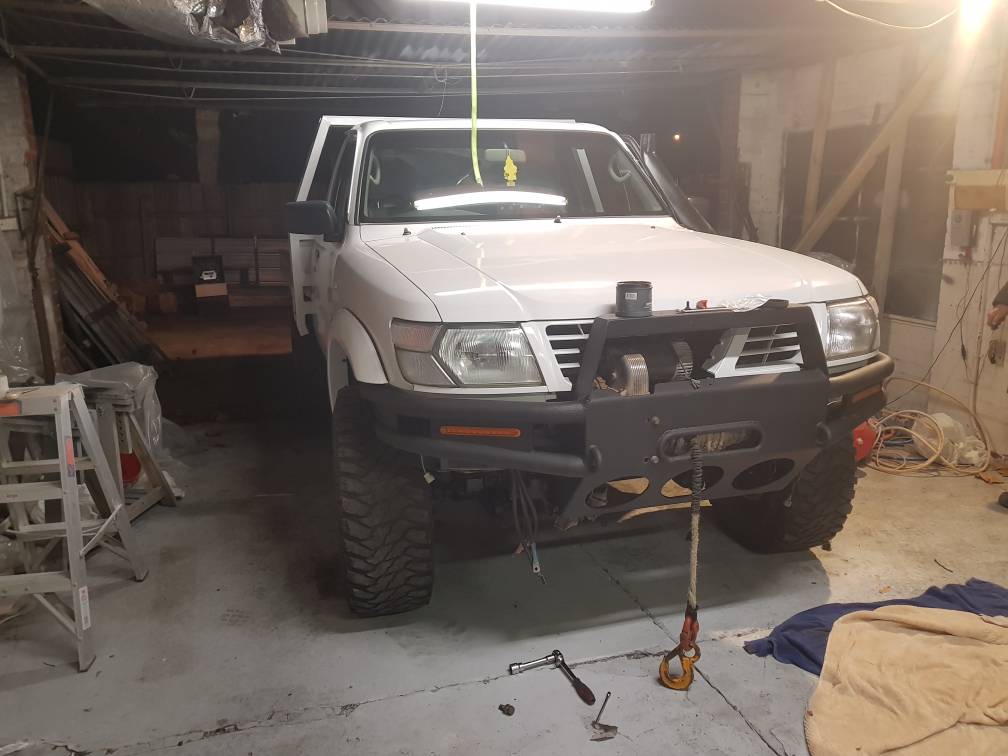

Tray and bullbar on used chain and block to make life easier http://www.nissanpatrol.com.au/forum...2018/07/96.jpghttp://www.nissanpatrol.com.au/forum...2018/07/97.jpghttp://www.nissanpatrol.com.au/forum...2018/07/98.jpghttp://www.nissanpatrol.com.au/forum...2018/07/99.jpghttp://www.nissanpatrol.com.au/forum...018/07/100.jpg

Sent from my SM-G950F using Tapatalk

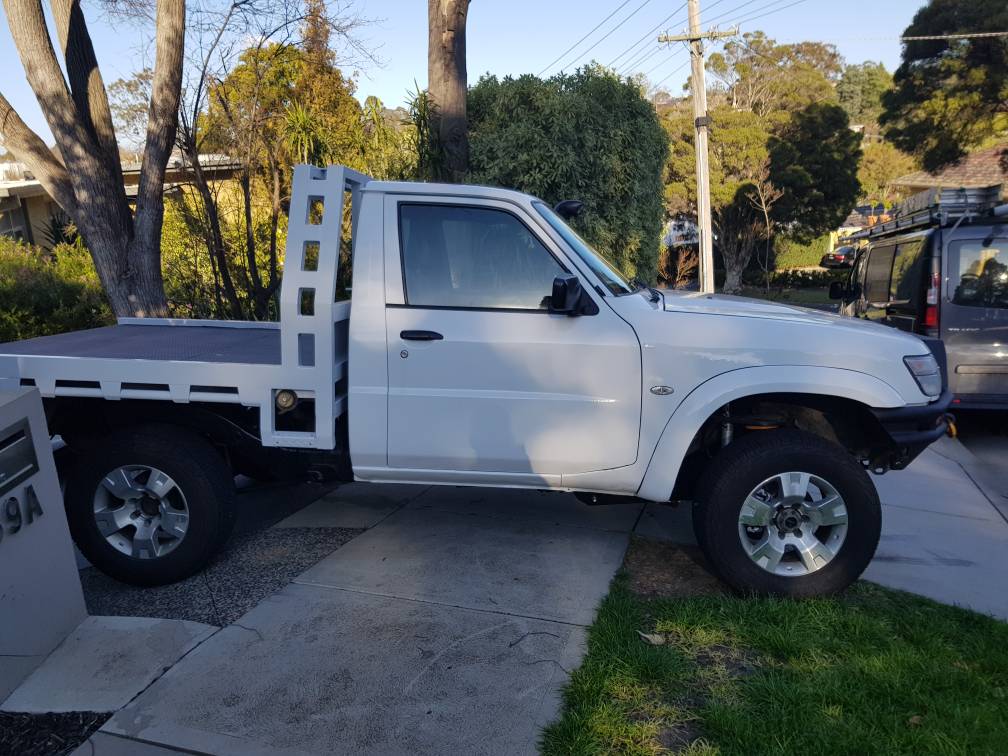

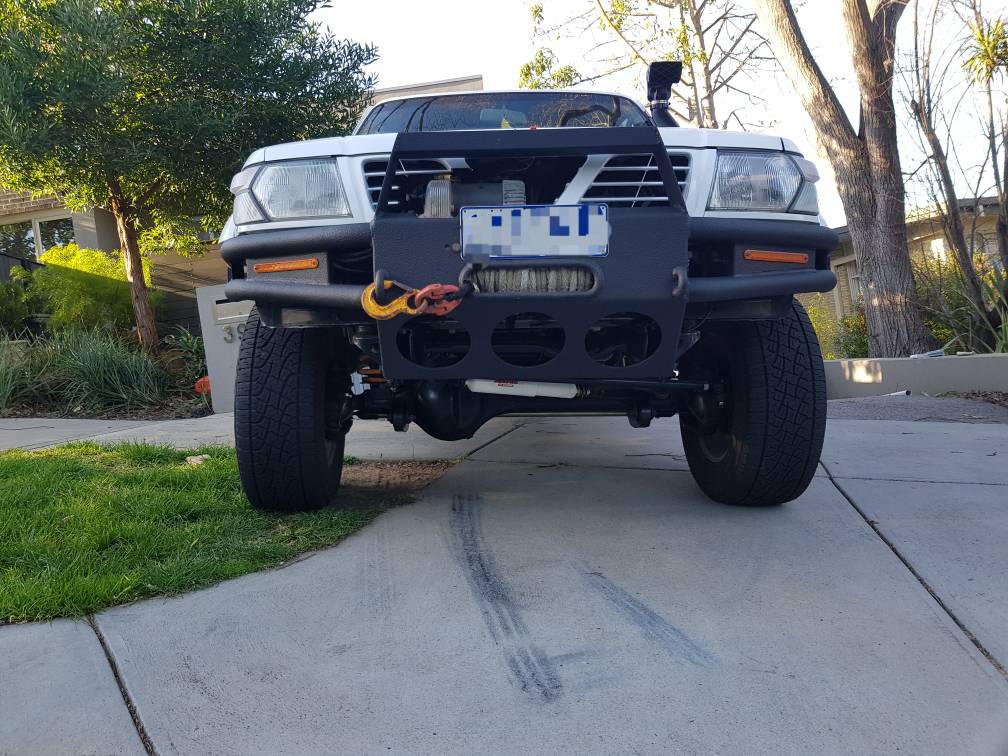

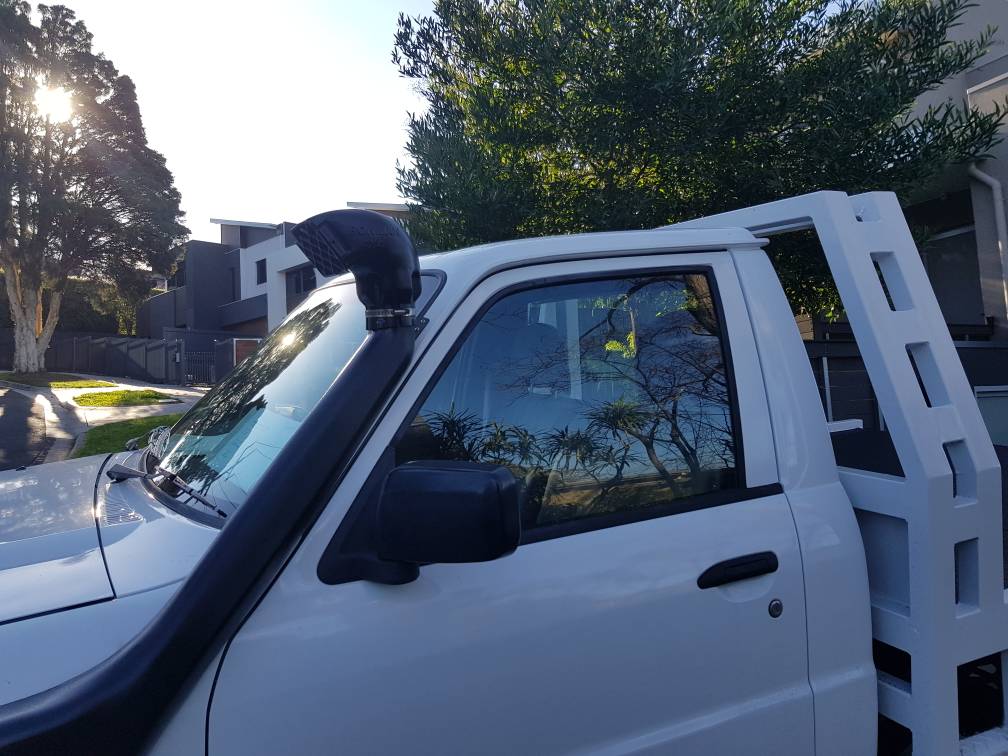

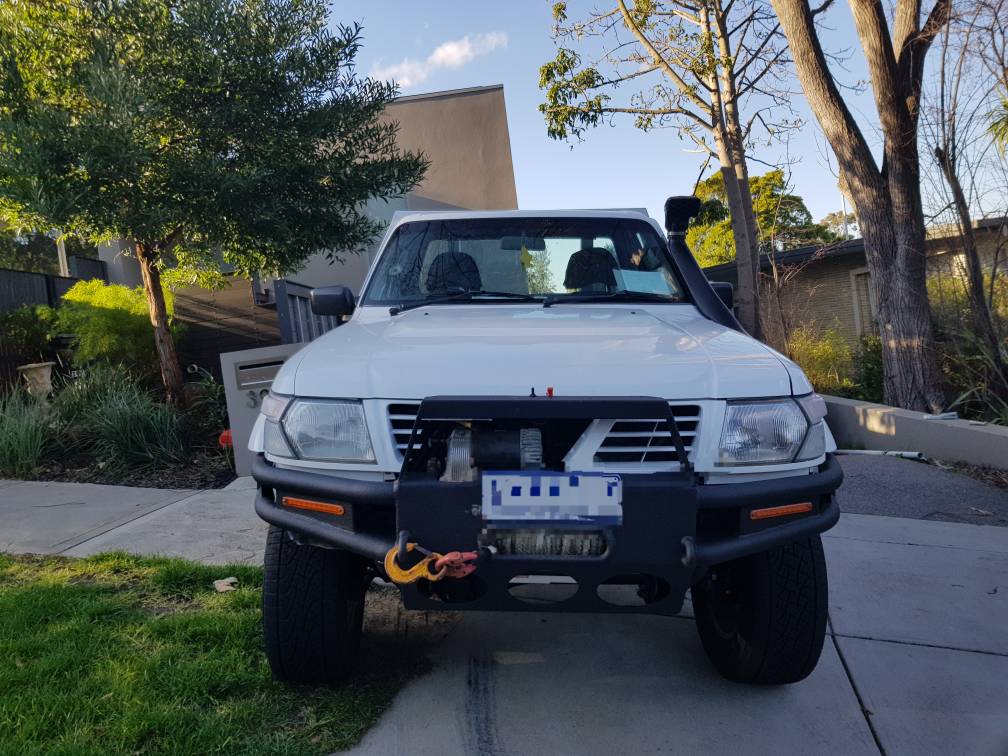

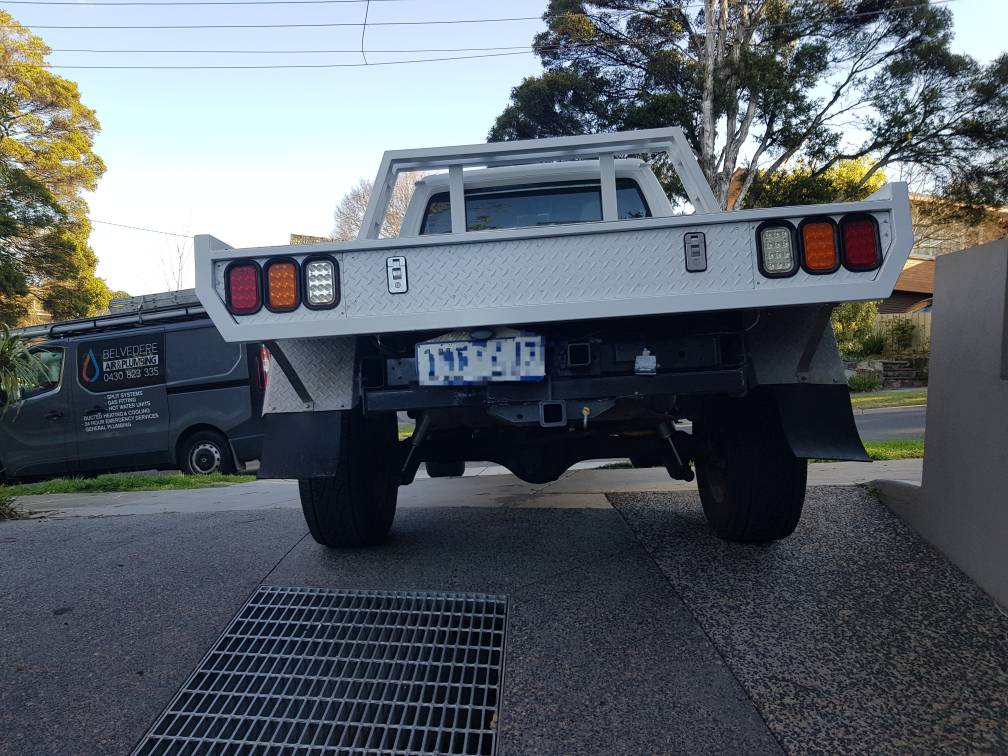

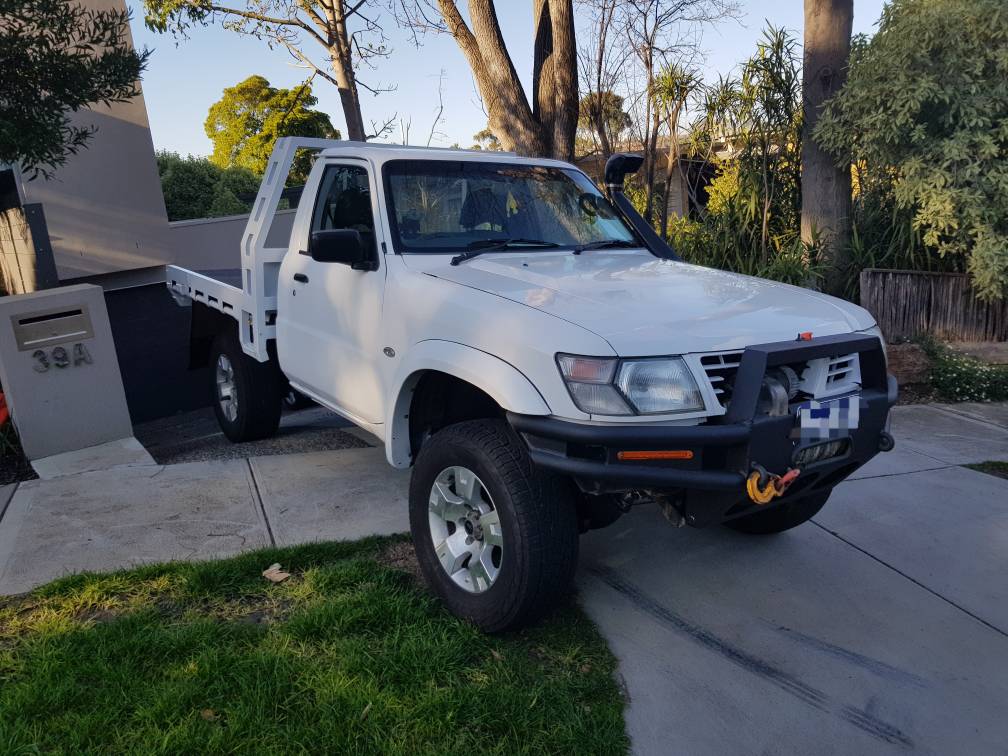

Finnaly finished after a long 8 month all back together and registered.
Works done.
cab and tray re spray.
New shocks and coils.
Paint chassis.
Extended bump stops.
New windscreen.
Hybrid radius arms.
New steering arm.
New steering dampener.
New tie rod arm.
All bushed changed.
Engine and gear box mounts.
Swivel hubs re done.
New front disks and breaks.

http://www.nissanpatrol.com.au/forum...018/08/232.jpghttp://www.nissanpatrol.com.au/forum...018/08/233.jpghttp://www.nissanpatrol.com.au/forum...018/08/234.jpghttp://www.nissanpatrol.com.au/forum...018/08/235.jpghttp://www.nissanpatrol.com.au/forum...018/08/236.jpghttp://www.nissanpatrol.com.au/forum...018/08/237.jpg

Sent from my SM-G950F using Tapatalk

Still need to remove both diff center and replace airlocker seals as they both leak.
Chuck some 35s on UHF and she's ready to hit the tracks.

Sent from my SM-G950F using Tapatalk

Nice mate. What are those side indicators off?

Quote:

---

Originally Posted by mudski

Nice mate. What are those side indicators off?

---

Think there off a vt-vy commo made them fit don't quite fit got to cut a few things off them.

Sent from my SM-G950F using Tapatalk

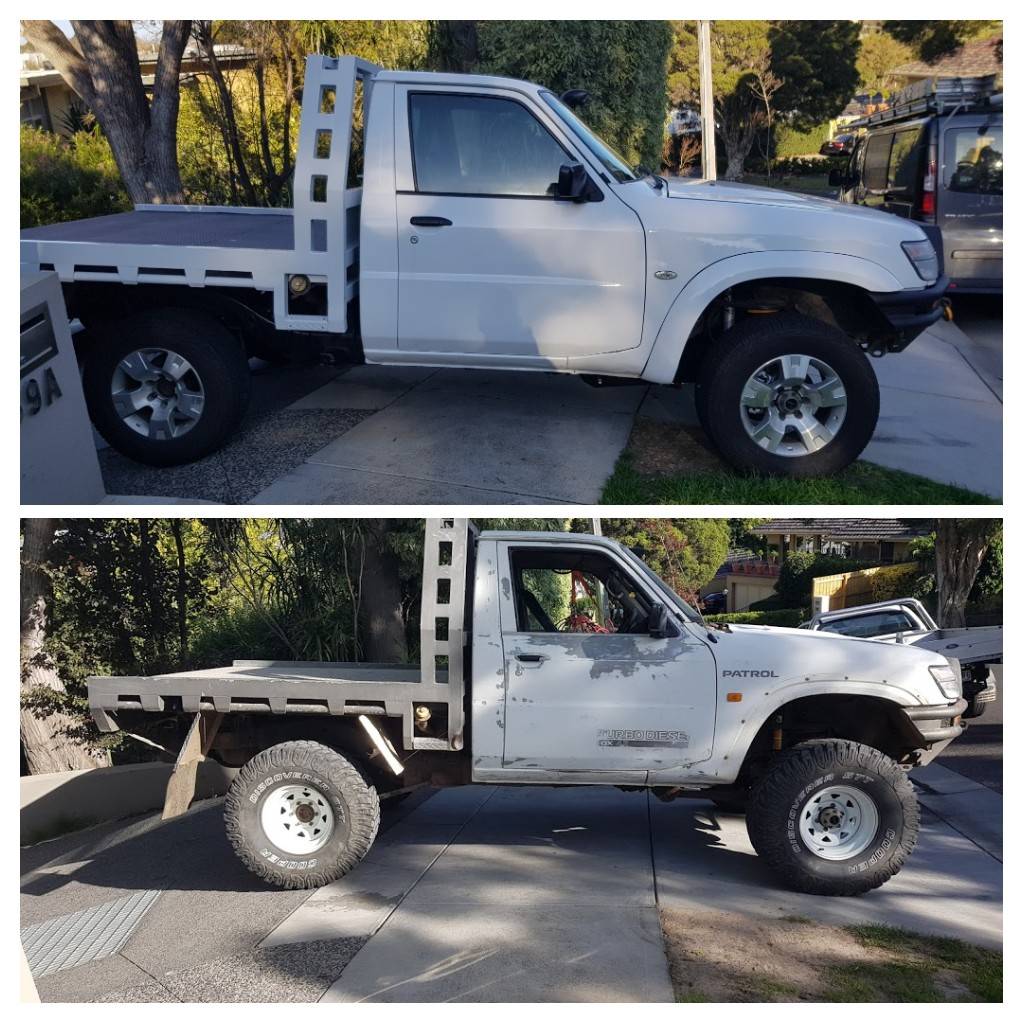

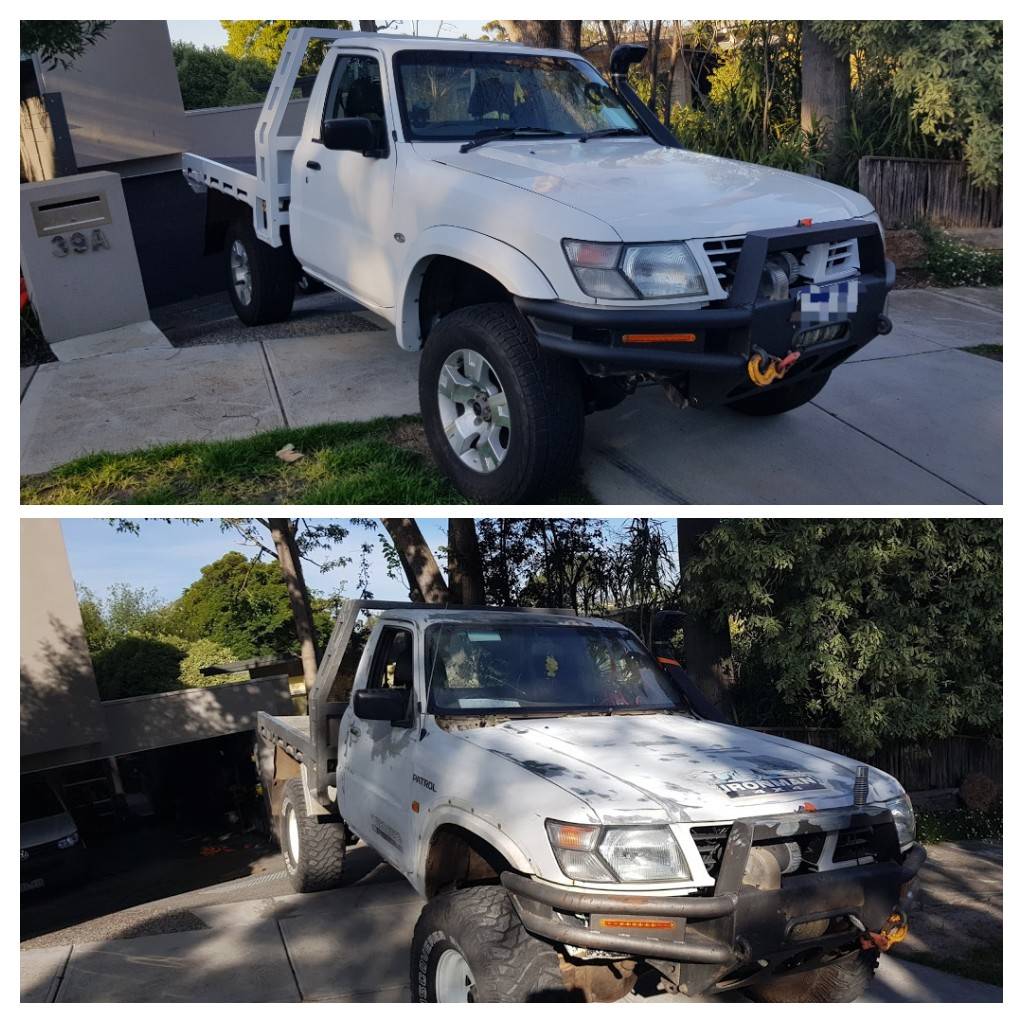

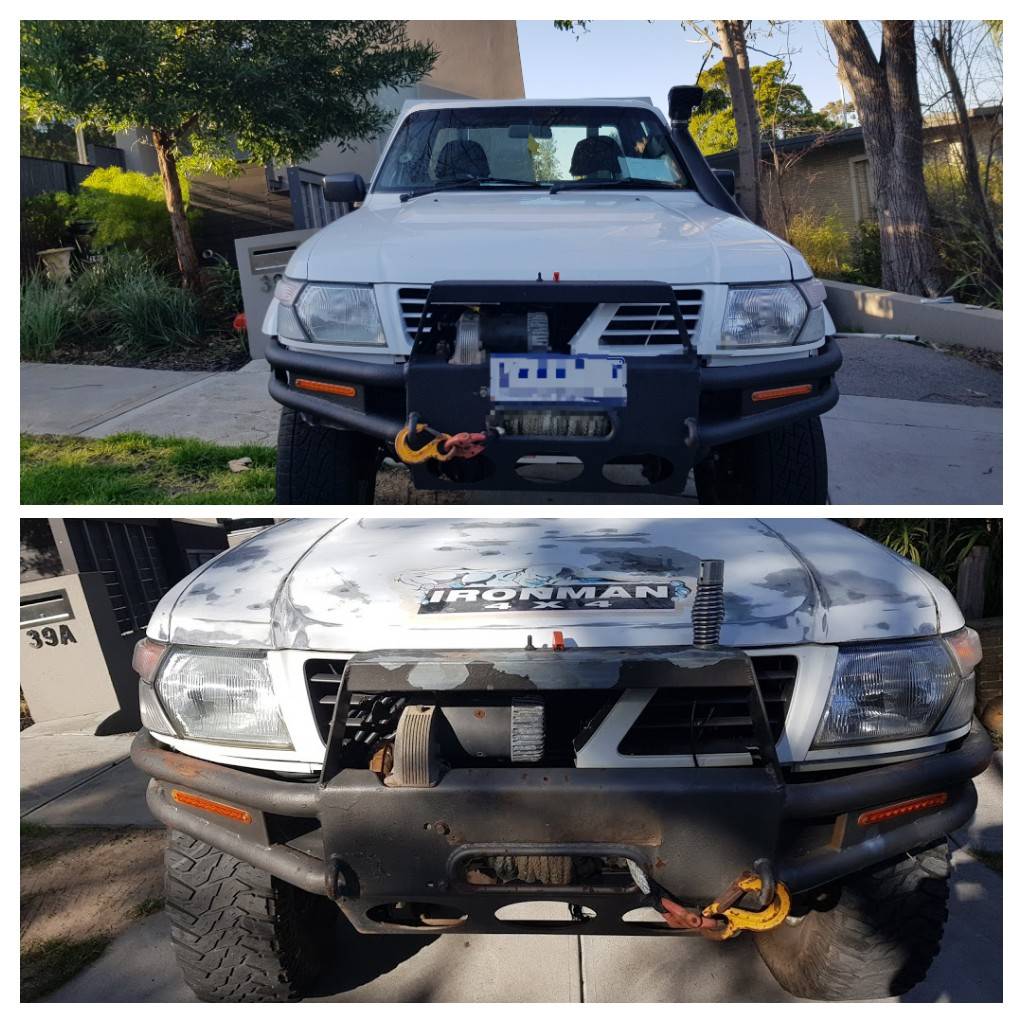

Before and after all got 3unch coils to chuck in so it will sit a bit higher and need some 35shttp://www.nissanpatrol.com.au/forum...018/08/241.jpghttp://www.nissanpatrol.com.au/forum...018/08/242.jpghttp://www.nissanpatrol.com.au/forum...018/08/243.jpg

Sent from my SM-G950F using Tapatalk

Very nice. Must be rewarding admiring the (almost) finished product after all the hard work!
Cheers mate

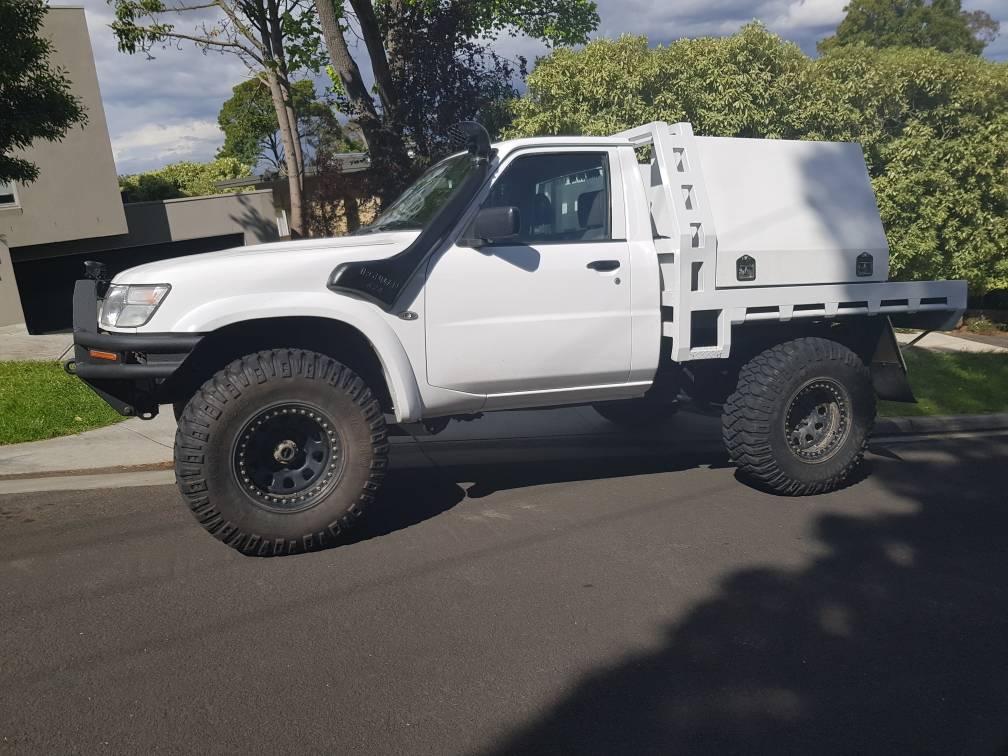

Few things done since last post installed some 3 inch coils to give me a bit more room for mtz 37s on dynamic beadlocks.

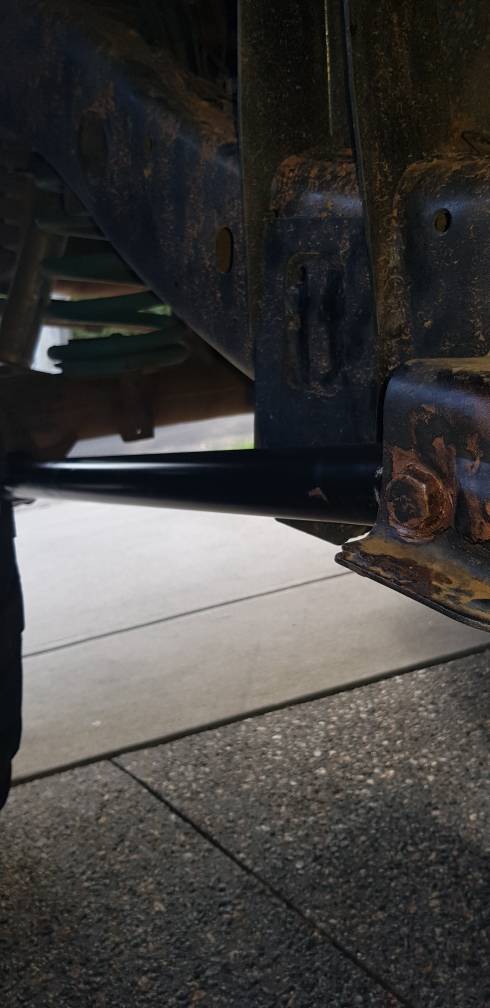

Also added heavy duty lower arms.

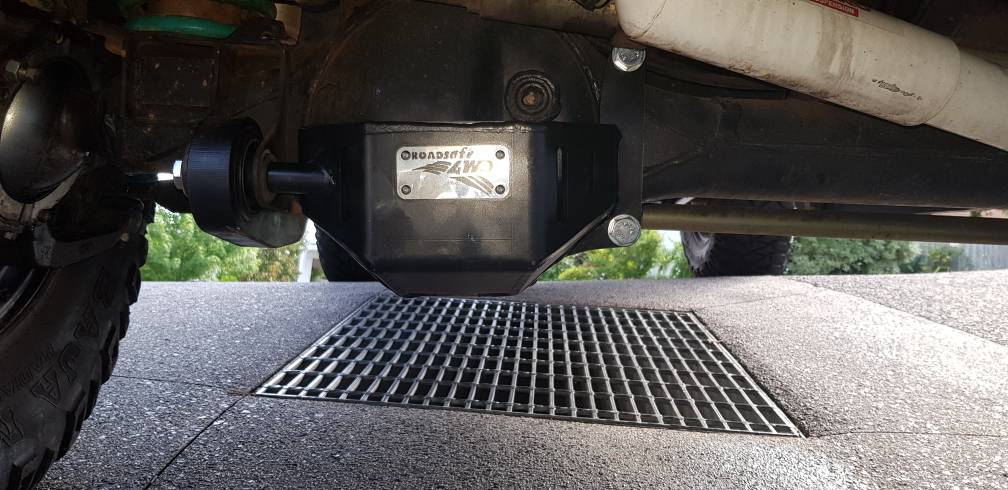

Front diff guard
New alloy radiator after old one broke
New thermostat.

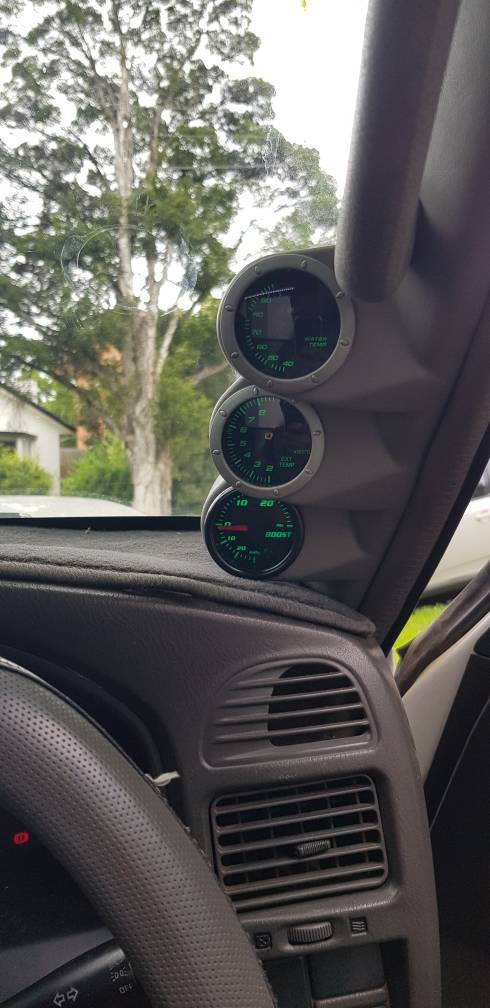

Boost gauge
Temp gauge.
Egt gauge.
And a few other things. http://www.nissanpatrol.com.au/forum...2019/01/10.jpghttp://www.nissanpatrol.com.au/forum...2019/01/11.jpghttp://www.nissanpatrol.com.au/forum...2019/01/12.jpghttp://www.nissanpatrol.com.au/forum...2019/01/13.jpg
