2008 GU VI DX Wagon - aka Bruce v2.0

Pics as promised

First of all I took off the engine cover. Then looking at the cylinder closest to the firewall I thought it better to take off the rear cooler pipework for better access

Then looking at the wiring that came with the unit I decided to cover the majority of it with some corrugated conduit

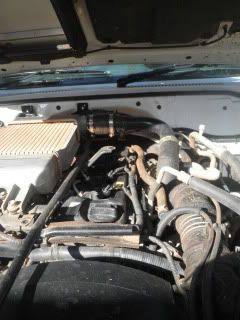

This is the before look at the injector wires and plugs

http://i48.photobucket.com/albums/f2...t_97/007-1.jpg

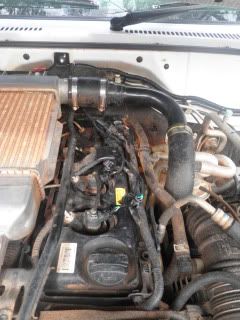

This is the after version with the plugs all wired in

http://i48.photobucket.com/albums/f2...t_97/009-3.jpg

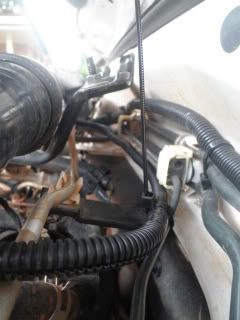

This is the wires going across to the drivers side of the engine bay

http://i48.photobucket.com/albums/f2...t_97/013-1.jpg

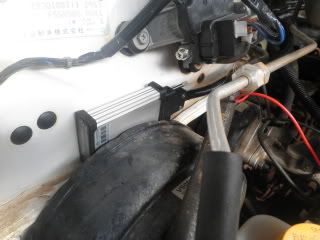

Where the module sits

http://i48.photobucket.com/albums/f2...t_97/010-2.jpg

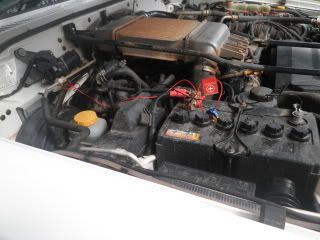

Power to the battery

http://i48.photobucket.com/albums/f2...t_97/011-1.jpg

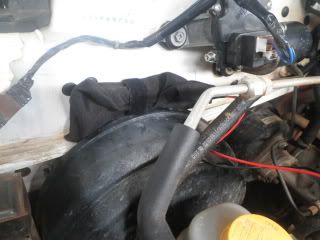

Module in bag. I need to work out somehow of securing it better than it is now but it'll do for the interim

http://i48.photobucket.com/albums/f2...t_97/014-3.jpg

Being a complete novice this took me a bit over an hour and a half. The only real swearing was when attempting to take the plug off the cylinder closest to the firewall.

For whatever reason there are bulges in the head just where you need to get your hands so you can pull the plug out - all other cylinders didn't have this issue so were a piece of piss. When all the plugs were out I gave them a spray with contact cleaner just to tidy them up as they were pretty much caked in red dust.

Then put all the cooler pipes back on.

Once I figure out the location of the module and securing it I will do that and put the engine cover back on.

Now all I'm doing is enjoying the extra power..............cooooool!!

Cheers

Looks great Nick, well done mate

Thanks mate - got a bit loose in the wet coming to work this morning which was pretty funny!!

Did some stuff on the Pootrol over the weekend

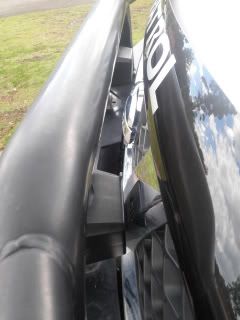

Below is a pic of the lights, you can see the one at the bottom is closer to the grille than the other one. This was because the bar had moved. That has now been realigned (thanks JK) and the lights now line up correctly - haven't got a pic of the result tho

http://i48.photobucket.com/albums/f2...t_97/007-2.jpg

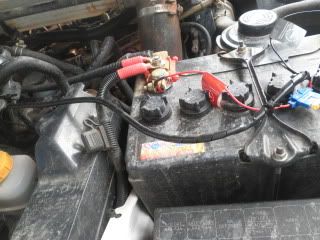

This next one is a pic of the power cables for the chip after I tidies them up

http://i48.photobucket.com/albums/f2...t_97/009-4.jpg

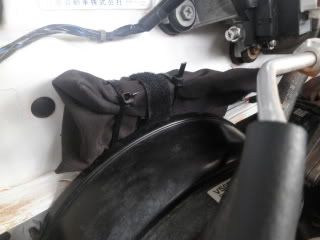

And here is the module itself in it's now permanent position

http://i48.photobucket.com/albums/f2...t_97/010-3.jpg

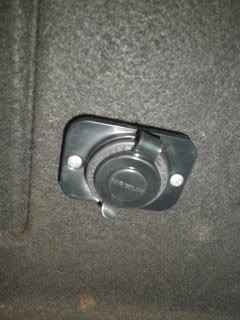

And here is the Narva CIG point I put in the cargo area

http://i48.photobucket.com/albums/f2...t_97/011-2.jpg

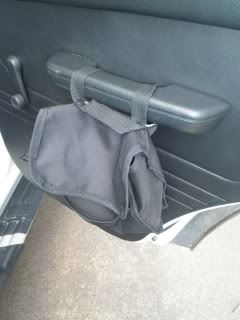

And here are the pockets I put on the doors for the kidlets so they have something to put crap in. These used to hang off the seats but the DVD players will go there from now on

http://i48.photobucket.com/albums/f2...t_97/012-1.jpg

Still need to get the caster bushes in and then align the head and spotlights properly

Cheers
Nick

One the first tank of diesel after the power module I did 681klms on 100.46L of diesel.
This gives me 14.75L per 100K. Which is no different to before really. Taking into consideration I gave it a bit of a flogging though I think it's okay. Bruce now churns out some black smoke under load which he did not do before.

On Saturday morning I had the middle muffler removed and replaced with straight pipe and then did a lap between home and Sydney over the weekend. I will get the figures for that tomorrow when I fill up

The only time I can tell the exhaust sounds different is at idle, it is probably different all the time but you can't hear it over the motor and wind noise. So for $70 I'm hoping to get a gain in economy

Cheers
Nick

Be a well spent 70 if it improves your economy mate won't take long to get that back I wouldn't think

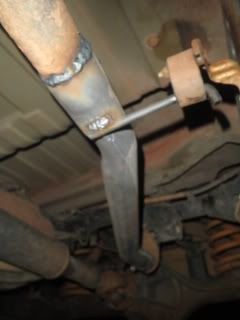

Here's a pic of the new pipe. Here's hoping it's an economically viable decision!

http://i48.photobucket.com/albums/f2...t_97/002-2.jpg

Cheers

The numbers are in and not very pretty >:(

Did 491 klms with the empty camper trailer in tow between Newcastle and Sydney. Was keeping up with traffic and had the cruise control set at 110 on the F3. This was on 92.56L of diesel which gives us 18.85l per 100K. That is with teh module and the deleted muffler.

Not sure where to go to now but will decide after this weeks normal commute rather than freeway driving. But teh more I drive it the more I reckon if i want to get decent numbers I'm going to have to opt out at 90km/h

Cheers
Nick

Some more fuel numbers from recent travels, which like above aren't the best. Only change from above to the car is putting in a new fuel filter.

First lot was only 205klms on 35.74L of diesel just doing my normal to and from work commute. I got 17.43L per 100klms

Second lot was towing the loaded CT from home to Boggabri. I travelled 397klms on 71.14L of diesel and sticking to 100kmh and I got 17.91L per 100klms

Third lot is backroads between Boggabri and Maleny towing the loaded CT. This too was sticking to 100kmh but whichever direction I travelled seemed to be a headwind. I travelled 566klms on 116.44L of diesel and got 20.57L per 100klms.

Fourth lot is a mix of towing CT and not towing CT. I travelled 375 klms using 65.99L of diesel. This gives me 17.59L per 100klms

Not quite sure what to make of these numbers.......

Cheers
Nick

Got back this arvo from the rest of my road trip. Last two fills are below and are a mix of back roads, and freeway between Maleny QLD and Newcastle NSW all towing the CT and pretty much sticking to 100k speed limit.

Traveled 412klms on 72.80l of diesel which gave me 17.66L per 100klm
Traveled 553klms on 109.17L of diesel which gave me 19.74L per 100klm

So over the 2508klms with the CT in tow for 85% of it I averaged 18.48L per 100 klm

Really with the CT on board I'm happy with those numbers but the thing so far is without the CT the numbers aren't that different. I'm going to take the roof rack off as well to see what that does for me.

Cheers
Nick

Quote:

---

Originally Posted by Nick74

Got back this arvo from the rest of my road trip. Last two fills are below and are a mix of back roads, and freeway between Maleny QLD and Newcastle NSW all towing the CT and pretty much sticking to 100k speed limit.

Traveled 412klms on 72.80l of diesel which gave me 17.66L per 100klm
Traveled 553klms on 109.17L of diesel which gave me 19.74L per 100klm

So over the 2508klms with the CT in tow for 85% of it I averaged 18.48L per 100 klm

Really with the CT on board I'm happy with those numbers but the thing so far is without the CT the numbers aren't that different. I'm going to take the roof rack off as well to see what that does for me.

Cheers
Nick

---

Hmmm, not the best figures I've seen but definitely not the worst either.
Unfortunately the economy figures with the CRD's are a bit of a lottery .

Hope the trip went well anyways.

I just don't do it 2 myself, fill her up and away I go, would get 2 depressed if i knew what the fuel consumption was!

And to add to my fuel consumption issues the turbo is making some nice noises as are one (or more) of the bearings in the pulleys at the front of the motor so it has to go back to Nissan....................ohhhhh the humanity!!

Can anyone tell me if the turbo needs to be replaced is there any benefit to upgrading the turbo without having to make exhaust or injectors/pump changes? In case u haven't guessed this is my 1st turbo motor...... ???

Cheers
Nick

Quote:

---

Originally Posted by NissPat

Hmmm, not the best figures I've seen but definitely not the worst either.
Unfortunately the economy figures with the CRD's are a bit of a lottery .

Hope the trip went well anyways.

---

Trip was awesome - just love getting away. Will download some pics and post em up later

Cheers
Nick

Here are some pics of the trip away.

Here are some pics of the Boolumba Creek Falls - I heard about these from reading another forum and they were worth the drive out - made a nice day trip.
http://i48.photobucket.com/albums/f2...t_97/038-1.jpg
http://i48.photobucket.com/albums/f2...t_97/034-1.jpg
There were 4 separate camp grounds around there which I will explore properly next time I'm there as it was flogging down too much to get out of the car.

Here we are at the top of the Blackall Ranges
http://i48.photobucket.com/albums/f2...t_97/039-1.jpg

And here is the set up at Maroochy Palms
http://i48.photobucket.com/albums/f2...t_97/043-1.jpg
http://i48.photobucket.com/albums/f2...t_97/042-1.jpg
http://i48.photobucket.com/albums/f2...t_97/044-1.jpg

And here are some shots taken down at Mooloolaba
http://i48.photobucket.com/albums/f2...t_97/062-2.jpg
http://i48.photobucket.com/albums/f2...t_97/063-1.jpg
http://i48.photobucket.com/albums/f2...t_97/071-2.jpg

Cheers
Nick

Great pics there Nick, looks like you all had a good time

Finally, respectable fuel numbers!!!!!!!!!

Did 502klms between here and Sydney on 67.3L of diesel which gives me 13.4L per 100klm.......................not the best, but pretty much what I was aiming for at the start.

Those figures were done keeping up with the speed limit, no roofrack, chip express on tune 1(out of 4), deleted middle muffler and the 33" KM2s at 35PSI

Cheers
Nick

geez you guys dont muck around...
Nice
Dr Drift...

No point stuffing around is there................hehehehe

Plus a turbo...........Nissan advised me today that my turbo noise is terminal and they will fit and supply a new one for the measly sum of $3218..........how lucky am I????

The above quote is using genuine parts and they will provide me with another quote using aftermarket stuff which should be cheaper. So we'll see what those are.

The service manager said he will make an application to Nissan to see if they are willing to pay for some of the cost - I've never heard of that for a car out of warranty but ya never know. It will be interesting to see Nissan's reply

I've already rung Berrima Diesel and they said they do not do any aftermarket stuff for the ZD30 so all they would do is buy genuine Nissan gear and use that - therefore they would be more expensive as they have to add their margin.

Does anyone know a workshop in Newcastle and surrounds that they would recommend to do the job?

I would like to get a second opinion but no diesel experts in my local area seem to answer their phone............d'oh!

One guy who my normal mechanic found said the CRDs are starting to lose turbos - problem is if the turbo goes it's usually cos of the impeller blades contacting the housing which means metal on metal contact, which means tiny bits of metal being ingested by the ZD30 which means that it could go bang as well................SH1T!!!

So I'm gunna start negotiating with Nissan for them to pay for the repair and then warrant the motor for the next 12 months. Wish me luck!!!!!!!

Oh, and the non genuine quote was $450 ish cheaper based solely on the cost of the turbo.

Does anyone know what exact type of turbo is in the CRD ZD30?

Cheers
Nick

Things have changed a little - the lease company will not approve the replacement of the turbo - tooooo expensive they say.
So I'm gunna bite the bullet and buy one of these

http://www.ebay.com.au/itm/120732722...84.m1423.l2649

And put the bastard on my self. I will then bill the lease company for the parts and my labour.
Just trying to find out the VIN, will have to wait till Pootrol gets back home tonight, and then ring Nissan to get part number to ensure it is the same as the one in the ebay link

Never done anything like a turbo before so this should be fun!!

Please keep an eye out for requests for help on this forum

Cheers
Nick

On the bright side of things, I have just done another 944klms on 120.86L of diesel which has given me 12.81L per 100klms which is quite good. This is without the roof rack and I have taken the chip express module off. The module will go back on when I put the new turbo on.

Cheers
Nick

Here are some pics of a recent trip............WARNING there is a Toyota and Mitsubishi in this post

Bruce on 35s
http://i48.photobucket.com/albums/f2.../P1010906a.jpg

My mate in his 80
http://i48.photobucket.com/albums/f2...e/P1010911.jpg

Another mate in his Challenger
http://i48.photobucket.com/albums/f2.../P1010909a.jpg

Emerging from filth
http://i48.photobucket.com/albums/f2.../P1010933a.jpg

and I don't know who this person is
http://i48.photobucket.com/albums/f2...e/P1010924.jpg

Being Xmas, saving for my turbo is not going so well so that won't be put on till late January. I'm hoping that by doing it myself with the help of some mates I might be able to get the turbo, an exhaust plus boost and EGT guages all for under the original Nissan quote

Here are some pics of a recent trip up to Coolah Tops NP

http://i48.photobucket.com/albums/f2...ucester011.jpg

http://i48.photobucket.com/albums/f2...ucester050.jpg

http://i48.photobucket.com/albums/f2...ucester063.jpg

http://i48.photobucket.com/albums/f2...ucester071.jpg

http://i48.photobucket.com/albums/f2...ucester072.jpg

http://i48.photobucket.com/albums/f2...ucester079.jpg

http://i48.photobucket.com/albums/f2...ucester081.jpg

http://i48.photobucket.com/albums/f2...ucester084.jpg

http://i48.photobucket.com/albums/f2...ucester097.jpg

Okay - finally after a long wait MTQ rang me today and advised that my shiny new Garrett turbo is on it's way.

It should arrive tomorrow. I have all the gaskets required for the job plus a new air filter

It won't be going in this weekend as I'm going to Sydney - but it will go in the weekend after. I'm going to take the cooler off and clean the oil residue out of it as well.

Then I'll need to save some more cash for my boost and EGT gauges and then I'll whack the chip back on and wind the boost up a pooftenth to take full advantage of the extra fuel shoved in my injectors.

Never done a job this big before so with the help of mate (and the use of his shed) I hope it goes smoothly

Cheers
Nick

Would have to agree white is a great colour, Have noticed some package deals for exhaust and chips in 4wd action magazine. maybe check that out

Well surpise, surpsie it's not the turbo that is shagged. I have spent approx $2k on a new turbo - put it on and the noise did not change......................FFFFFFFFFFFFFFFFFFFFF
So took it back off to take a close look at manifold and it's leaking between the block and the manifold - this is what the friggen noise is.
6 out of the 8 studs came out sweet, the other two we are in the process of drilling out.
Plus I need 2 new batteries and the intercooler needs replacing as well
Truck will stay in the driveway till Monday - I'm going off to tuff trucks

OH THE HUMANITY!!!!!!!!!!!!!!!!!!!

Cheers
Nick

Quote:

---

Originally Posted by Nick74

Truck will stay in the driveway till Monday - I'm going off to tuff trucks

OH THE HUMANITY!!!!!!!!!!!!!!!!!!!

Cheers
Nick

---

Plenty of pics at Tough Truck please Nick, damn wish I was going.

Oh wow so jealous of you guys out camping cant wait

Still not at tough truck

Front two studs are out and replacements are in. We have entered the reconstruction phase!!!!

Might get to the mud runs a bit late.................but will be there tomorrow for sure

Will do some pics and a proper story later

Cheers
Nick

Well well well.......................the plot has thickened.

The Turbo arrived and unfortunately I had no time to put it in so it stayed in the shed for a bit before I could get the bugger in. Also the day before I was due to put it in the bloody noise got waaaaaaaaaaaaaaay worse - it now sounded like a tractor

My mate Kev came up to help me put it in and another mate, James, lent me the space in his shed to do the job.

So engine cover comes off, batts disconnected, cooler off, hoses to turbo and cooler off, second battery out - All of this gave us pretty good access to the huffer.

So then it came time to take the heat shield off. There are six bolts that hold it on. and as luck would have it the first one we touch (on the back of the dump pipe) seems to not want to budge one bit. So we WD40 it and do the others all with relative ease. We get back to the stubborn one and it just won't move, eventually our efforts round the head so we have no choice to grind it off. At this point my mate James says "if you have hit this trouble already maybe you should take it to a shop for them to do" James was right, but not to do with the turbo install......................

Once the shield was off, the dump pipe came off easy as did the turbo from the manifold. We did snap one of the dump pipe studs so that means we had to get new studs from Nissan - being Sat arvo this was not going to happen. So we put the turbo back on with new gaskets and all, the oil lines were a total bitch to get back on but after many swears we got them on. The mission was to then install the dump pipe back on using the two good studs, which we did, and then when I had the new three from Nisan on Monday I could replace one at a time taking out the old ones as I went.

Kev returned to Sydney with the job at that stage. I went to work on Monday and at lunch got my three studs and bolts from Nissan for $75 (FFFFFFFFFFFFF) and came back to James's shed on Monday night and put the whole thing together. It went pretty well which was a pleasant surprise. Cooler and piping all reinstalled. Started it and the noise was still there along with the new tractor noise........FFFFFFFFFF. Killed it and went to look over the job to see where the noise was coming from. next possible cause was the piping as we thought we found a shady bit on the pipe that runs under the part off the intake that goes back to the airbox. Took that off did a silicone repair on that and was just about to start it when I noticed this green fluid in the pots on the rocker cover all around 3 and 4 cylinders.

My initial thought was coolant, as I had moved some of those hoses. But upon tasting it was discovered that it was diesel......................FFFFFFFFFFF Gave it another kick in the guts whilst James inspected the area. The leak was easily spotted. There is a low pressure fuel return line that runs down the middle of the rocker cover which was spitting out the diesel. One of the TEE pieces that goes into the cylinder had snapped. This then jogged my memory that whilst getting the new turbo on we were leaning on top of the motor, at one point we heard this plastic snap/crack noise but couldn't see what it was - we now know that it was one of our hands resting where it shouldn't have.

James and I decided that we might be able to do a shady repair in case Nissan did not have the part in stock that we needed. We got a water bottle top, cut sleeves through it so that the low pressure fuel line could sit in that and then we filled the cap with epoxy to see if that sealed. Called that the end of the day................

Went to Nissan the next day and they had the whole line just for $38 so I snaffled that and headed home after work. In the arvo at work James texted me to advise that our shady repair had not worked - it had sealed the join but also the line so no diesel could get through. I was very happy that Nissan had the part so I told James I would be there after dinner for another crack at getting the Pootroll functioning.

Once at the shed I put the new low pressure line in (twice as I put it in wrong the 1st time) and chucked all the piping and cooler back on. Started up on the second attempt and the noise was still there....................... FFFFFFFFFFFFFFFFFFFFF.

The possible intake noise had been rectified and the turbo had been replaced so it wasn't one of those. James then diagnosed that it may be the bearing in the alternator as it was in the same area we thought the noise was coming from. So I packed up all my tools, thanked James for his help and drove the 5 mins home with the Pootroll making shedloads of noise.

The next day I rang the local auto elec and managed to get my job squeezed in. This was now early Thursday morning. I would like to thank Steve Mudge Auto Electrics Medowie for pushing my job to the top of his list. If anyone in my area needs work done then give Steve a ring as he is a bloody legend.

It may now be pertinent to point out that I have a mate, Dave, flying down from QLD to go to Tuff Trucks with me on Friday - he is off the plane at 1.30pm on Friday and I'm hoping to have the Pootroll back together by then. I rang Steve back at 9.30am on Friday and he said it wasn't the alternator but there was other things he would like to talk about. So now, scared as buggery, I rode my pushie over to his place to get the bad news

Steve said the alternator was fine. But there appears to be oil weeping from the cooler - I knew that was happening and was trying to save to get a new one. He also said that both of my batteries were shagged and that by the time a cold winter gets here they wouldn't work................yay more expense for me!!! Most importantly he told me that there was an exhaust manifold leak on the front cylinder and this was most likely where the noise was coming from.

I ring Dave hoping that he had not left for the airport as I was going to tell him not to come..................he was already at the airport. I told him the crappy news and he said not to worry, he'll get it going for me. A few hours later after ringing Nissan and finding out that they had no $78 gaskets in stock I picked up Dave from the airport - the Pootroll was making so much noise he could hear me long before he could see me. We got it back home and started to pull it apart.

Turbo and cooler and all that stuff came off pretty easy. Had to take alternator, heater hoses and exhaust manifold guard off which were all a PITA.........but they did come off in the end. We also had to drain the radiator. Speaking of a PITA the manifold itself would not budge off the studs - it took a lot of levering and swearing to get it off. This did not bode well for the straightness of that part - it seemed like it was no longer flush mounting with the gasket - and this would've been the source of our leak. The soot around number one cylinder confirmed this. There are 8 studs holding the manifold on and the 6 closest to the firewall came out pretty easy. The front two also required no effort to snap - we didn't even look like leaning on the spanner and they freaking snapped - the job just turned to SH!T

I had no car to get anywhere at this stage so I rang my mate Sean at about 3.30pm and he left work to get me 8 studs from Nissan which they had in stock - these cost me less than $40. Sean also got me some easy outs to remove the two studs. Once they arrived and Sean stopped laughing at me the easy outs went on but they were not doing the job for some reason. We were no left with no choice but to drill the bastards out.

At this point we called an end to our Friday and planned to go to Tuff Truck over the weekend and get the Pootroll back on the road on Monday when parts places were open as we needed a few things to get the job done.

Woke up Saturday morning packed what we needed into the spud peelers Vectra and headed out..........................it started to drive a like shit - it's done this before and it was a blocked fuel filter - this is because the spud peeler will often run the tank dry ish rather than fill up at the 1/4 mark. So that meant we had no choice but to get the Pootroll working if we wanted to get to Tuff Truck - it then started to rain so we had to tarp up the front of the Pootroll so we didn't get soaked..... OHHHHH the humanity!

So we needed parts but had no car to go and fetch them. After some ringing around places we found a place that had all we need. Newcastle Nuts and Bolts was them and they were open late enough for us to get there on Saturday. I called in another mate Dash to give us a lift into town - he was very obliging on the horrible rainy day to drive us in.

Once back at home with the bits and the constant rain we started drilling into the side of the head of the Pootroll where the busted studs were.....................from my novice point of view this was getting pretty scary, but luckily for me Dave took it all in his stride and said we could get the bastard going. Not long after starting drilling we decided we had to remove the 2nd battery tray but could get the nut on the guard off so we had to grind it off - and as of right now I still have no second battery or battery tray! Once that was out we drilled into the two busted studs and the head - you will be glad to hear that Dave had a plan.

We had bought an appropriate tap and die set, a few drill bits and 2 M14 HT Bolts. The plan was to drill a 14mm hole into where the studs were, then whack a thread into them using the tap and die set. This worked and worked quite well. It did take some time patience and skill - all showed by Dave. I was a passenger at this stage.

Next part was to drill a 10mm hole into the threaded end of our M14 bolts - this hole was going to be long enough to take the end of the standard 10mm stud which would normally go into the head. After settling on a substantial guide hole we were able to drill into both bolts quite successfully - this was all done with a normal Bosch drill with the bolt clamped to the drawbar of a trailer......................... Once the hole was in the M14 we threaded it as well. We then cut the head end of the M14 bolts off to leave us only with the threaded and holed part.

Next job was to put the two studs into the prepared sleeves (which used to be M14 bolts) and then whack that into the 14mm holes in the head. I could not believe my eyes, but this all worked like a charm. Dave was quite rightly well pleased with himself - I coulda gave the bugger a kiss.

As I told the spud peeler "we had just entered the reconstruction phase!!!!!!!!!!!!!!" This was about 2pm on Saturday. We then filed back the manifold face to try and get a better fit which in the end seemed to work.

At this point Dave had been here for just over 24 hours and has done nothing but bust his arse on my POS truck - I felt like shit for doing this to him but like a true mate he had no qualms about getting this job done for me. Everything went back together pretty well apart from the friggen turbo heat shield.

Parts that were put back on in loose order were ; refilled coolant, refitted heater hoses/lines, reconnected EGR, put alternator back on, manifold and heat shield, turbo and heat shield and dump pipe back on, cooler and piping back on. We started it at about 8pm on Saturday night............................it worked and the praise be to JEEBUS the tractor noise was gone. What was the "turbo noise" was still there. I didn't give a sh!t about that at this stage, I just wanted to get to Tuff Trucks - so after looking for my ticket for 30 mins we arrived at the gates at 10pm and got to see the last bit of the mud runs - which was waaayyyy cool.

After the mud run finished we drove back home that night at 1am and then headed back out at 7.30am on Sunday for a full days TT

Soooooooooooooooooooooooo where does that leave me????

The Nissan diagnosis of shagged turbo was completely wrong as the install of the new $2000 turbo made no difference to anything. I will be ringing Nissan to have a freaking go at them about that. I will also be booking it in to have the blistered/bubbled dash replaced just so it costs them some friggen money. This will most likely be the last Nissan I ever buy.

I have a second hand GU CRD ZD30 Turbo with 133000klms on it which will be up for sale very soon if you know anyone who is keen lemme know!

As for the "turbo noise" after driving ir for 180klms or so Dave and I agree it has to be boost related so it will be coming from somewhere after the turbo. It has to be turbo to cooler piping, the cooler itself (my main suspect) or the piping after the cooler. So I will start testing them with soapy water and stuff this weekend. I may even see if another friendly local GU owner who doesn't have a noisy truck will lend me the bits I think are suspect just to trial it before I but it at the very cheap................cough cough.........................Nissan prices

I would like to thank all my mates, Kev, James, Sean, Dash for all chipping in what they could. I really appreciate it your help fellas and I owe you bulk beers!!!

I would also like to thank Dave for his ballsy repair job and positive attitude which has helped us get to see TT this year and get the Pootroll back on the road. Thanks Dave I owe you a million million thanks. You are a rare and true gentleman and your help is not a thing I take lightly and will never forget.

I didn't really take any pics but Dave has - I will post them up when Dave gets them to me or posts them up himself.

Below is Dave's version of event with pics - part I

Bit of a story to this so hope you don't mind the read.....

For the last couple of months Nick and I had planned on going to Tuff Truck this year. We'd bought weekend pass tickets and the whole works and were really looking forward to going. I'd bought plane tickets to get from Brisbane to Newcastle too. The plan was to pick me up from the airport and head straight out there.

However. About a month ago Nicks Patrol started having some rather disturbing noises, mostly under power. Nissan dealer says it probably needs a new turbo. $3200 they'd do it!
Nick rang around and could get one for $2300 jumping the order queue or $1800 if he was prepared to wait for the next shipment. So the latter option it was. Once arrived, he and some other mates got stuck into it and swapped it out.

No friggin' difference! Same noises. :crazy:

What the hell is it? Getting desperate now he takes it to an auto sparky friend thinking maybe alternator. Nup, but points out the soot behind the alternator may very well be part of the problem.

By this time I'm waiting for my plane at Brisbane on Friday morning and get a call from Nick. Essentially he's suggesting we call it all off. Well I wasn't having any of that now was I. I thought he said something about intake manifold gasket. I said no worries, we can cut a cardboard gasket if we have to, we'll get it going. No problem.............

So I get down there and Nick picks me up from the airport and I get to hear these noises on the short trip to his place. Sure didn't sound good at all.

Get there, open the bonnet and set up a fan to cool things down so we could work on it asap.
Pull the new turbo off. All looked good. At this point I open up the old turbo. The leading edges had lost the black coating that the compressor has, no big deal. And importantly, there hadn't been any contact with the housings at all. So all in all I wouldn't hesitate to re-install it. It had only done 133k kms.

Now we're looking at the exhaust manifold. And sure enough I could see a tiny gap at the no.1 port.
So the noise that was heard was the exhaust gas leaking out and vibrating the gasket, gum leaf harmonica style.

OK, loose nuts? So I put a socket on them and try to tighten them. Top one, yep loose. Bottom one, same. But as soon as I start getting any tension, snap. Damn that went easy!!!
OK, so the manifold is going to have to come off, drill the broken studs, ezi-outs, new studs, some hi-temp gasket goo just for good measure and we should be all good right?

The other six nuts come off fine, one unscrewed the stud but that's ok we're going to replace them all. And the other "loose" one promptly snaps too. So that's two we've got to extract........ Then the manifold was a bitch to get off. The holes simply didn't line up with the studs and they were binding rather bad. With large screw drivers, chisels and a big lever I manage to pry it off. And could see the marks the threads left in the stud holes, it wasn't a good fit at all. How they fitted it at the factory I don't know.....
In fact, ultimately I believe it greatly contributed to the two studs breaking in the first place. The surface where it broke indicates it had been flexed back and forth in relation to the engine.
You can see how offset the holes are on ports 2 & 4 are.

http://i197.photobucket.com/albums/a...foldstuds1.jpg

Meanwhile Nick has arranged for a set of new studs and mate of his to pick them up from Nissan and bring them home. Nick then pedals the few km's down the road to the local hardware store to get an Ezi-out set. And I do my best at drilling a hole in the middle of the broken bit of stud. I got one of them fairly good I thought, the other I wasn't so confident of. Try the ezi-out but it's not going anywhere and I dare not break it. I really don't want a piece of hardened steel left in the hole. About the only way to fix that is to heat it red hot with an oxy to soften it so that it can be drilled. And with no oxy that wasn't an option. So all I could do is carefully drill out as much as I could and hope to not damage the head too much. Did that and called it quits at 10pm Friday night.

http://i197.photobucket.com/albums/a...foldstuds2.jpg

You can see how far offset the original studs were.

I woke up at around 2am with bit of an epiphany and spent the next two hours trying to go back to sleep but my head is developing a plan of attack.............
Last edited by DJR96 on 21 Mar 2012 00:24, edited 1 time in total.
Cheers, Dave.

Part II

The "correct" way to fix a damaged bolt/stud hole like this is to use a heli-coil or re-coil kit. The hole needs to be drilled to the same size as the stud that's meant to go in it (10mm in this case), tapped, heli-coil inserted, stud screwed in and it's done. A very legitimate repair and when done in alloy it is actually stronger than without the heli-coil. In fact some things are designed and built with them from the beginning.
But the likelihood of me getting all the old stud out without damaging any material beyond the 10mm diameter I rated as buckleys and none. So I'm thinking about making an insert that uses a larger outside thread size. 1/2" perhaps? I search for a tapping/drill size chart and do some maths. There's not a big enough difference between the minor diameter (bottom of the threads) and the 10mm M10 of the studs, even with UNF. So I have to choose M14. Freaking hell, that's getting big!

So Saturday morning another of Nicks mates takes us for a trip to a proper bolt and fastener store that has everything I need. M14x1.5 and M10x1.5 tap sets, a handle to turn them properly, drill bits to suit (12.5mm and 8.5mm), and two M14 x 75mm bolts (that takes care of the outside diameter and no need to get a die and handle to cut those threads.

Get back, file the manifolds bolt holes so that it will go on without any force. You know, fit like it should. Bolt it in place without the gasket and use it to guide the drill bit on the front holes. See, things you think off in the dead of night......
Carefully go at it. Jammed a few times as bits of the old stud broke away. But eventually get a pair of clean holes. Manifold off and carefully tap the M14 threads in the head.

http://i197.photobucket.com/albums/a...foldstuds3.jpg

For reference that's an M8 stud to the left of it. (For a coolant pipe)

http://i197.photobucket.com/albums/a...foldstuds4.jpg

http://i197.photobucket.com/albums/a...foldstuds5.jpg

However, in the last photo you can see I've drilled through into a cavity where there's oil. I don't know if it's an oil gallery or just where oil drains back to the crankcase??????
Too bad. Can't give up on it yet!

Now for the inserts. I was hoping to have access to a lathe to drill and tap the big bolts, but it wasn't happening. I had to just do it by hand. Came up well I think.

http://i197.photobucket.com/albums/a...foldstuds6.jpg

That's them with the new Nissan studs screwed into them before I cut it to length.

Screwed in just fine. I'm very happy with them.

Something else I thought of. The bolts holding the manifolds on the Ford 6.0 Powerstroke engine I've got have an inch long spacer tube between the bolt heads and manifold. I figure this is to increase the length of bolt under tension to give it a bit more elasticity to cope with thermal expansion and contraction.
With this in mind I decided to put four flat washers under the nuts. As many that would fit whilst still allowing the nut to fully engage, just one or two threads exposed out of the nut.
But the manifold has bit of a counter-bore and the holes I filed oblong need two washers filed to match to suit the depth of the counter-bore. Just a bit of fiddling about but a good result.

I put a flat file over the mating surface of the manifold. The ears of the bolt holes seemed to be slightly bent in and I had put a little ding on one edge trying to get it off before. But worse, there was a bend over it's length, particularly between ports 1 & 2. Not being bolted down securely seems to have allowed it to bend!?! I wouldn't have thought that possible. Perhaps it's cast steel not iron?

Anyway, we haven't got much choice but to use it anyway. I separated the four layers of the gasket, clean them and apply some goollygum around the port holes and bolt it up. Tightening it up the manifold appears to have pulled straight and flat against the head just fine. And all the nuts take a fair amount of tension no problems. I'm still happy.

http://i197.photobucket.com/albums/a...foldstuds7.jpg

We bolt all the rest of the turbo and motor back together. Nick chose to put the new turbo on. Only because he had stripped some thread in one of the bolt holes where the elbow on the front goes and thought it detracted from it's saleability. The original bolts only go in 4-5mm so it's easy to strip the thread. We got some longer bolts. The holes are a good 10-12mm deep.

All done! Fire it up and just let it idle to get some warmth into it to help cure the gasket-goo. Tidy up, get changed, and head off to Tuff Truck on Saturday night, getting some dinner on the way and we get there around 10pm.

It still got a little squealy whistling leak somewhere that seems to be directly related to boost pressure. Hoping it's just one of the hoses. It's interesting though because you can hear how quickly it responds and spools up. In fact you can hear it spike for a moment before the VGT adjusts. It's so responsive the ECU and vacuum operating the VGT can't keep up. And that's factory stock. Not that I think it is a problem at all.
At least the manifold isn't leaking at all. Well, except for some oil dripping from the bottom stud from where I penetrated through..... Damn, should have put some gasket-goo on that too. That was a dumb oversight because it means it all has to be undone to do it now. Oh well, maybe in October when Nick comes by my place. And if the manifold is still not flat then I can machine it flat too.

Cheers
Dave

Okay - patrol is still going.

Have done 1031 klms on the last fill up and the litres taken were 135.19

This gives 13.09L per 100k. Which is probably the best results I've had,
* tyres were at 32PSI
* had no spares on the rear bar
* kept revs between 2000- 3500 (a few times I went over)
* mostly did no more than 100 but there was 70 or so klms of 110kmh so I had to do that speed
* AC was on when I needed it

So there you have it. Going to QLD in October and am hoping to have the money together for an exhaust, a pyro and boost gauge as well as two new batteries by then so it can be put together whilst I'm up there. I will turn up the boost (3-4 PSI) a little bit and get it dyno tuned to suit the chip express module I have

Does anyone know anywhere around the Hunter area there is a good diesel place who can tune it for me??

Cheers
Nick

Have done 877 klms on the last fill up and the litres taken were 121.91.

This gave me 13.9l per 100klms

Trip was Medowie - Gloucester - Moonan Flat - Scone - Willow Tree - Gunnedah - Boggabri. Whilst coming over the tops I aired down to 28 PSI and did not air back up till down at the bottom. So a lot of low speed stuff, not in 4wd but many many gear changes and lost of accel and decel.

* tyres were at 34 PSI on tar 28 PSI on dirt
* had no spares on the rear bar
* kept revs between 2000- 3500 (a few times I went over)
* mostly did no more than 100kmh except in the 110k zone on the Kamilaroi Hwy where I did 106kmh
* AC was on when I needed it

Considering the drive/terrain I'm happy with the numbers

Cheers
Nick

This car is the biggest POS C%nt whore of a thing in the universe...................I hate it
That is all

Giving you more grief Nick?

Yeah - the heater wouldn't blow hot air last night. So blow and behold the coolant levels were extremely low. Temp on gauge didn't move tho
So I filled up the reservoir, idles it for 10 mins, filled it up again then drove it for 20 mins. Have had to top it up again this morning - in total since last night it's taken 4L of coolant.

Have requested a payout figure..............if it's feasible I'll get rid of it

Cheers
Nick
