MudRunnerTD's GQ From the Ground Up

Quote:

---

Originally Posted by dakka1

hey dude what page of this MASSIVE thread do I go to for the high mount install. im just trying to see where and what and how when it comes to water or oil lines and drain etc

---

Lol. I assume your talking aout the Himount winch. The first group of Himount winch pics would be in the first 10 pages I reckon depending on how many posts per page your set at. When I started the thread I was basically finished the car so rolled them all out quickly. The winch was done up first then.

I am currently rebuilding the winch again and have it out of the car and completely stripped down. Let me know what you want pics of and I will take a couple for you. The cases have just been painted and I have not reassembled it yet.

Quote:

---

Originally Posted by MudRunnerTD

Next got started on the winch. I pulled it to bits on the bench in the shed to give it a good clean out.

I used this link for a great writeup and how to ==> http://www.pirate4x4.com/tech/billavista/8274/

Then i went about renovating what needed to be done. I Painted the casing using a Charcoal Hammertone paint out of a can

http://nissanpatrol.com.au/images/St...g?t=1294270748

I tapped the casing to run Air lines to pressurise the case for Bog holes etc. You can see also that i used some of that PVC liquid tape on the terminals thinking that i could trim up the mess when dry => NO YOU CANT!!! so after this pic i went and got a very fine brush and neatened it up allot.

http://nissanpatrol.com.au/images/St...g?t=1294271712
I reckon it looks great.

http://nissanpatrol.com.au/images/St...g?t=1294271769

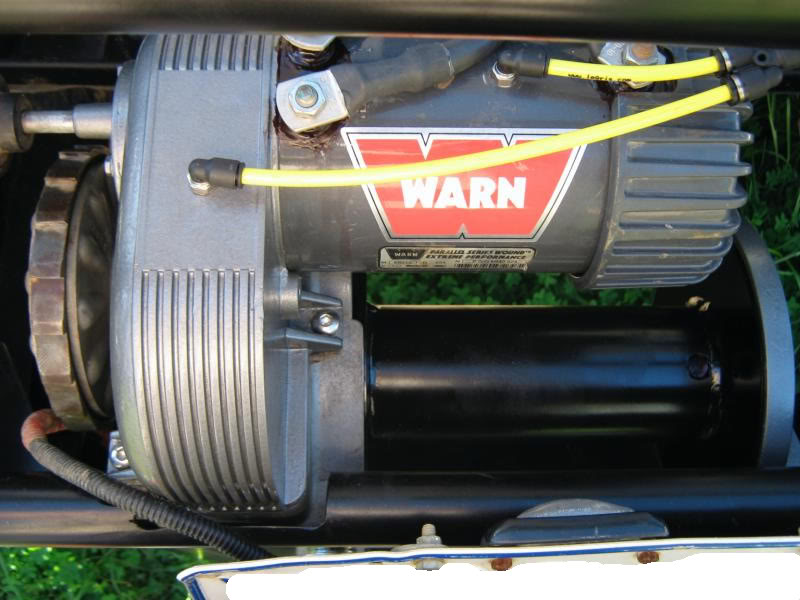

Mounted it back up into the newly painted bar and fitted the air lines

http://nissanpatrol.com.au/images/St...g?t=1294271802

See on the back of the numberplate i have fitted a white LED marker light that is switched with the winch isolation switch in the dash and lights up the winch whenever power is connected to it. F*#king awesome at night for winching.

http://nissanpatrol.com.au/images/St...g?t=1294271930

http://nissanpatrol.com.au/images/St...g?t=1294271930

http://nissanpatrol.com.au/images/St...g?t=1294271930

Attached my home made Nylon Fairlead and Bob's your Aunty.

From this >>>>

http://nissanpatrol.com.au/images/St...g?t=1294271930

To this >>>>>

http://nissanpatrol.com.au/images/St...g?t=1294272155

Mounted up my Lightforce XGTs that i converted to HID and wound on the plasma and ready to go!!

http://nissanpatrol.com.au/images/St...g?t=1278822203

---

Post 44 for a start. Also post 43 had a couple. As I said though I have it on the bench and can take whatever else you want mate.

shit sorry dude was meaning the turbo. sorry should have been more specific

Quote:

---

Originally Posted by dakka1

shit sorry dude was meaning the turbo. sorry should have been more specific

---

Hahaha. Yeah had a feeling you might have been. My turbo is a low mount and is a full MTQ system. I had it fitted by a shop though way back when. If your chasing pics and info on a Hi Mount Turbo setup your best to ask Bloody Aussie as he has just fitted one to his new TD.

Looks like MudRunnerTD's GQ has made it's way onto Facebook courtesy of 4WD TV.

https://www.facebook.com/4wdTV/photo...type=1&theater

Quote:

---

Originally Posted by Majestic

Looks like MudRunnerTD's GQ has made it's way onto Facebook courtesy of 4WD TV. https://www.facebook.com/4wdTV/photo...type=1&theater

---

Yep saw that. I can now stalk all of your Facebook profiles, it's not that hard to do some patrol matching to names!

I must be famous!!! :p

Quote:

---

Originally Posted by MudRunnerTD

I must be famous!!! :p

---

Yea...
Sure......

Ay I was thinking the other day about your gearing issues with the gu and 35's.
Why not swap out the gq centres until the q is ready, or you buy replacements??
Or will 4.6 be to high??

Bump for tappa talk

Thank FARK for tappa!!! Been slack on this thread as I have struggled with pics until now.

Been a busy year, car has been parked up and have been sorting out my 24v for my winch. It's nearlly ready to go but while it's been parked I have also stripped out a heap of junk wiring. I have also made space for a 4" snorkel through the bonnet and big airbox in the future..

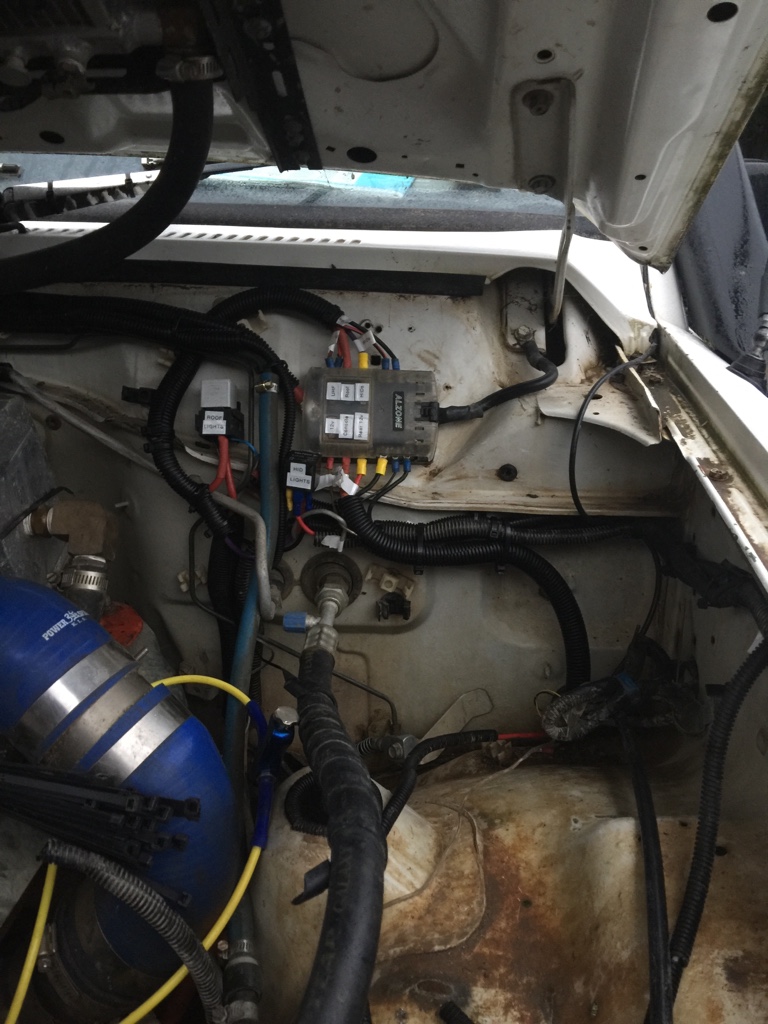

Some wiring mods.

http://www.nissanpatrol.com.au/forum...2015/05/69.jpg

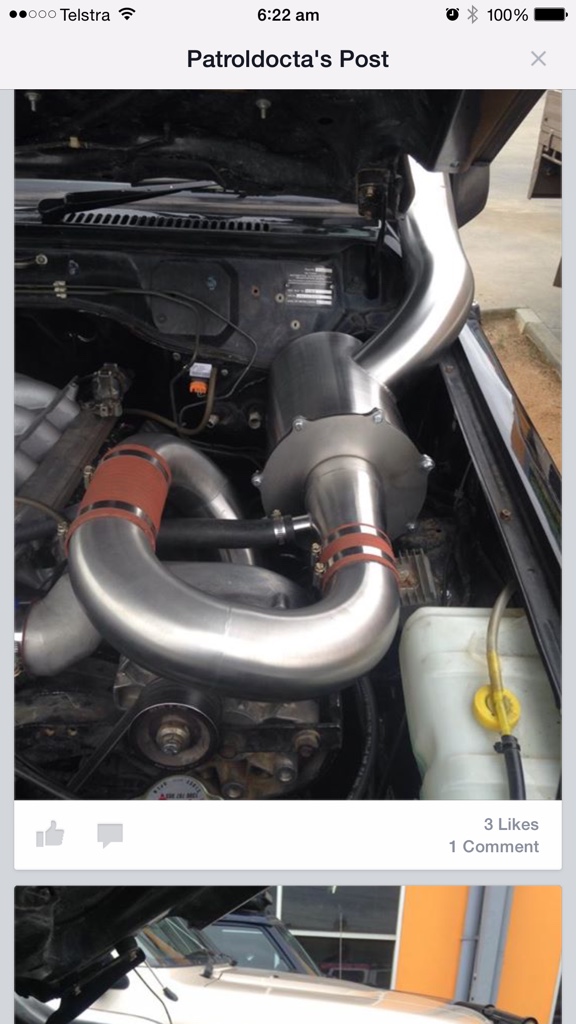

This is a future plan

http://www.nissanpatrol.com.au/forum...2015/05/70.jpg

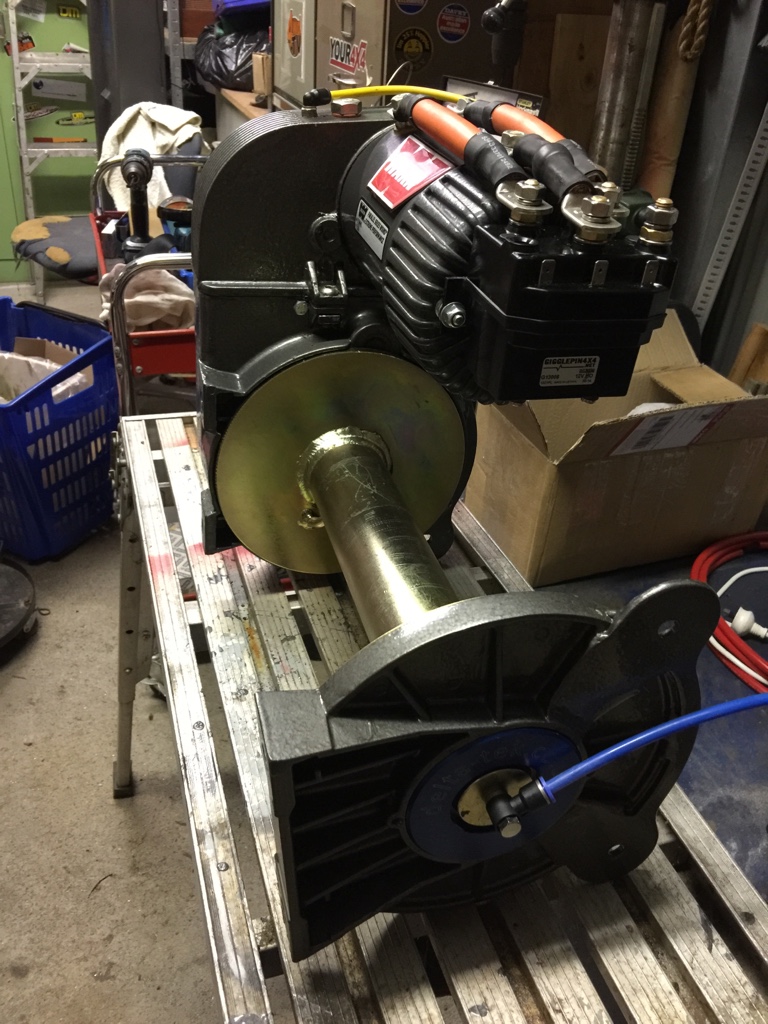

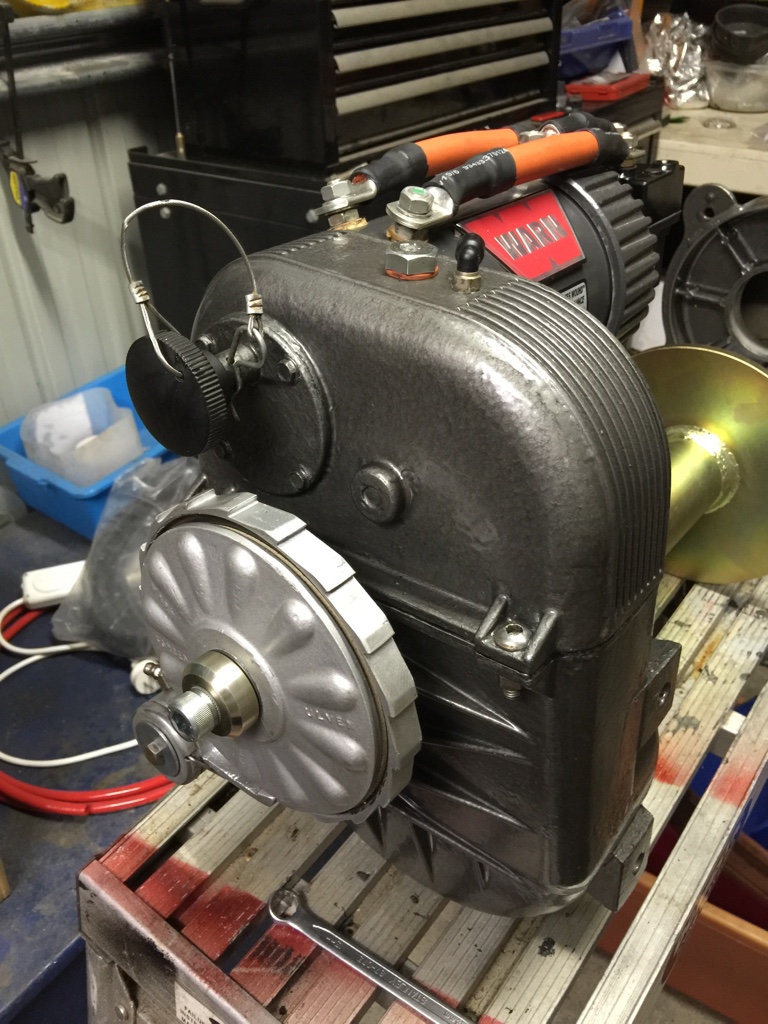

The HiMount is finished and ready to bolt up. 24v ready with +76 Deltatek Freespool and Gigglepin Brake a Shaft. Allbright solenoid. Sexy as Fark!!!

http://www.nissanpatrol.com.au/forum...2015/05/71.jpg

http://www.nissanpatrol.com.au/forum...2015/05/72.jpg

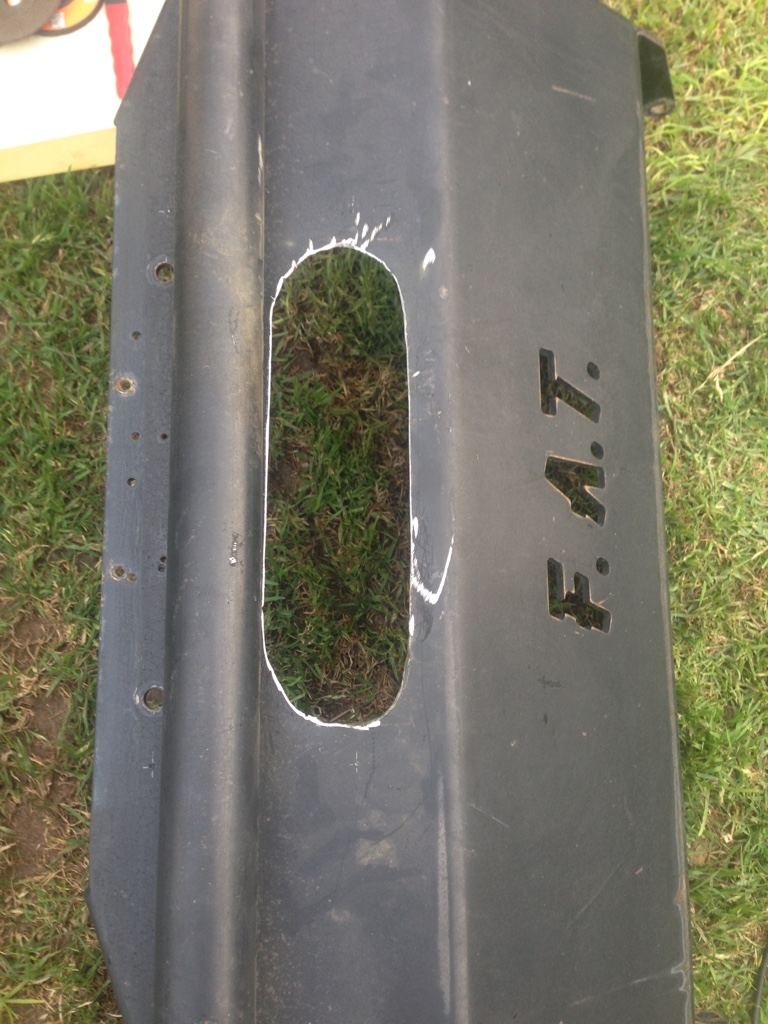

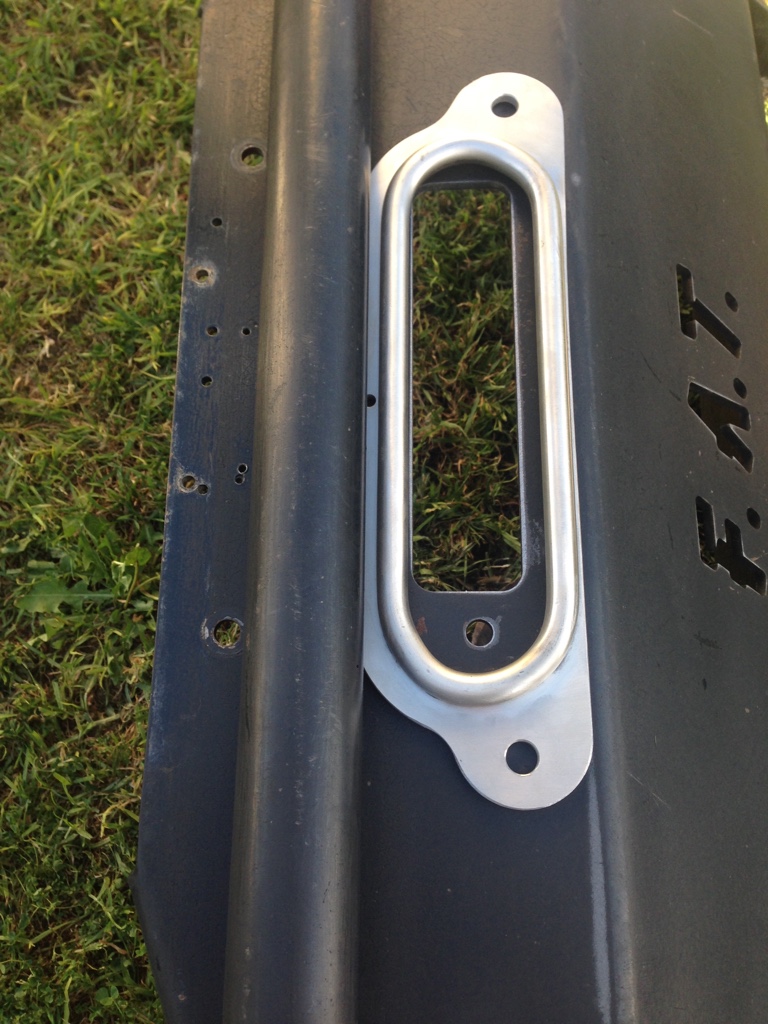

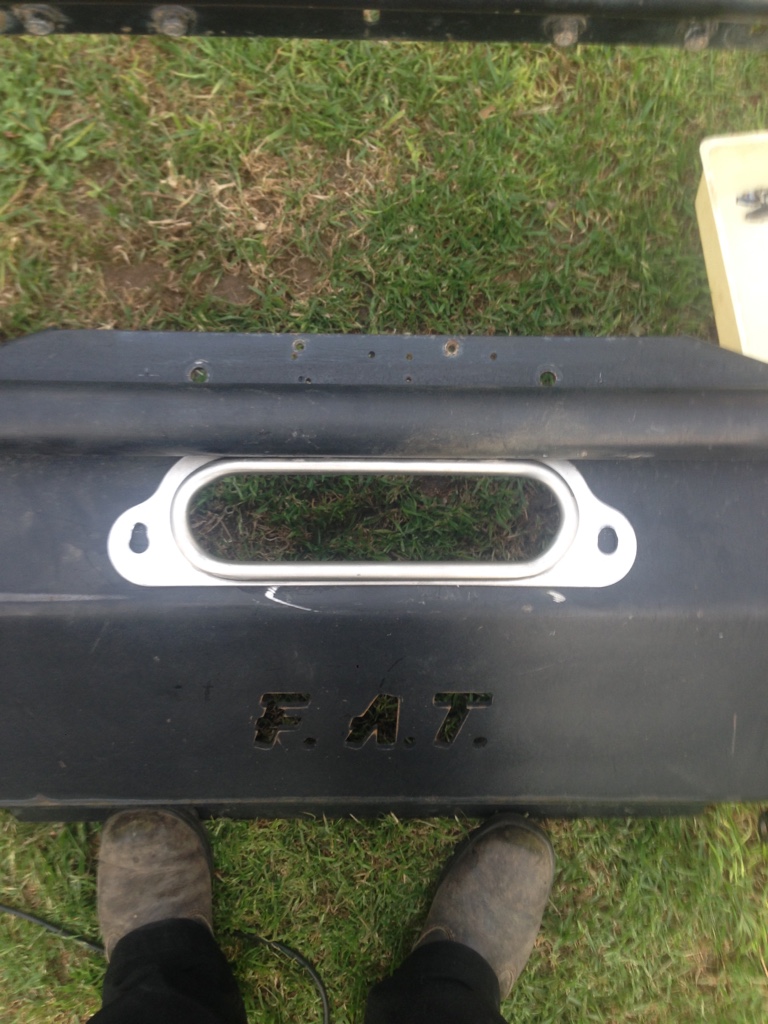

Gone for a Custom made Big Mouth SS fairlead, you can now buy these on eBay, mine is the one in the pic as it was the first one he made in the bigger size. The big mouth will allow a Brocken plasma to have a knot tied in it and still got through the opening

http://www.nissanpatrol.com.au/forum...2015/05/73.jpg

http://www.nissanpatrol.com.au/forum...2015/05/74.jpg

http://www.nissanpatrol.com.au/forum...2015/05/75.jpg




Sent from my iPhone using Tapatalk cause AB turned it back on!!
