    Quote Originally Posted by PeeBee View Post
    You installing @MB - need my tap for the diff fitting? Watch out for the location, sure you won't get caught twice?. Sing out if you need it. Is this for front or rear?
    That would be awesome again thanks Philstar Mate!
    Utes loaded up now and off to the factory to do it down there today

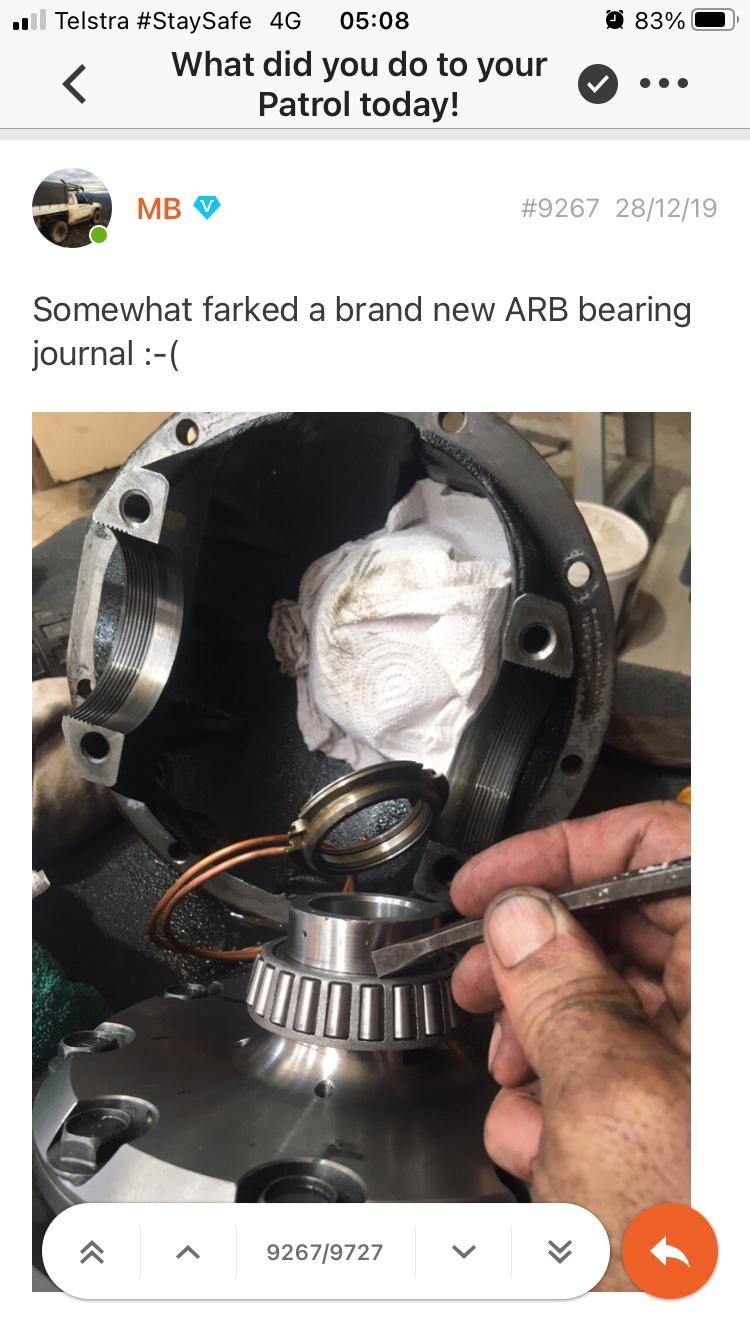

    Finally tracked down where I posted last installation booboos on the family wagon here:

    What did you do to your Patrol today!
    https://r.tapatalk.com/shareLink?sha...5&share_type=t




    Will kindly have access to a proper press today from the mechanic next to work and I’ll be sure to drill the 1/4” NPT bung further away from the crown this time around


    Sent from my iPhone using Tapatalk

  5. The Following 2 Users Say Thank You to MB For This Useful Post:

    Bidja (3rd December 2020), Winnie (3rd December 2020)

  6. #53
    Patrol Guru Bidja's Avatar
    Join Date
    Jul 2017
    Location
    Southern Table Lands, NSW
    Posts
    963
    Thanks
    995
    Thanked 891 Times in 511 Posts
    Mentioned
    30 Post(s)
    Tagged
    0 Thread(s)
    Quote Originally Posted by mudnut View Post
    That was a good display and noted that his lockers were the Terrain Tamer that use the new 4 pin design Harrop Eaton ELocker. Been checking these out and they no longer use the cam ramp disc plate with the ball bearings to provide disc plate separation to move the pins to lockup assy. Harrop now use 4 pins in lieu of the ball bearing and at disc plate rotation/engement,the pins force a lug profiled lock plate to engage with the housing. Harrop claim a more positive lock engagement and axle rotational lag of max 1/8 turn in lieu of 1/2 turn experienced with earlier design.

    For Info: Posted Harrop Eaton ELocker video of current build/operation
    https://www.youtube.com/watch?v=nT_H6rpd-Ck
    Last edited by Bidja; 3rd December 2020 at 08:20 AM.
    2008 GU WAG ST Manual CRD - To do the job

  7. The Following 2 Users Say Thank You to Bidja For This Useful Post:

    MB (3rd December 2020), mudnut (3rd December 2020)

  8. #54
    ......... MB's Avatar
    Join Date
    Nov 2015
    Location
    Yarra Valley
    Posts
    6,491
    Thanks
    16,420
    Thanked 7,815 Times in 3,629 Posts
    Mentioned
    362 Post(s)
    Tagged
    0 Thread(s)

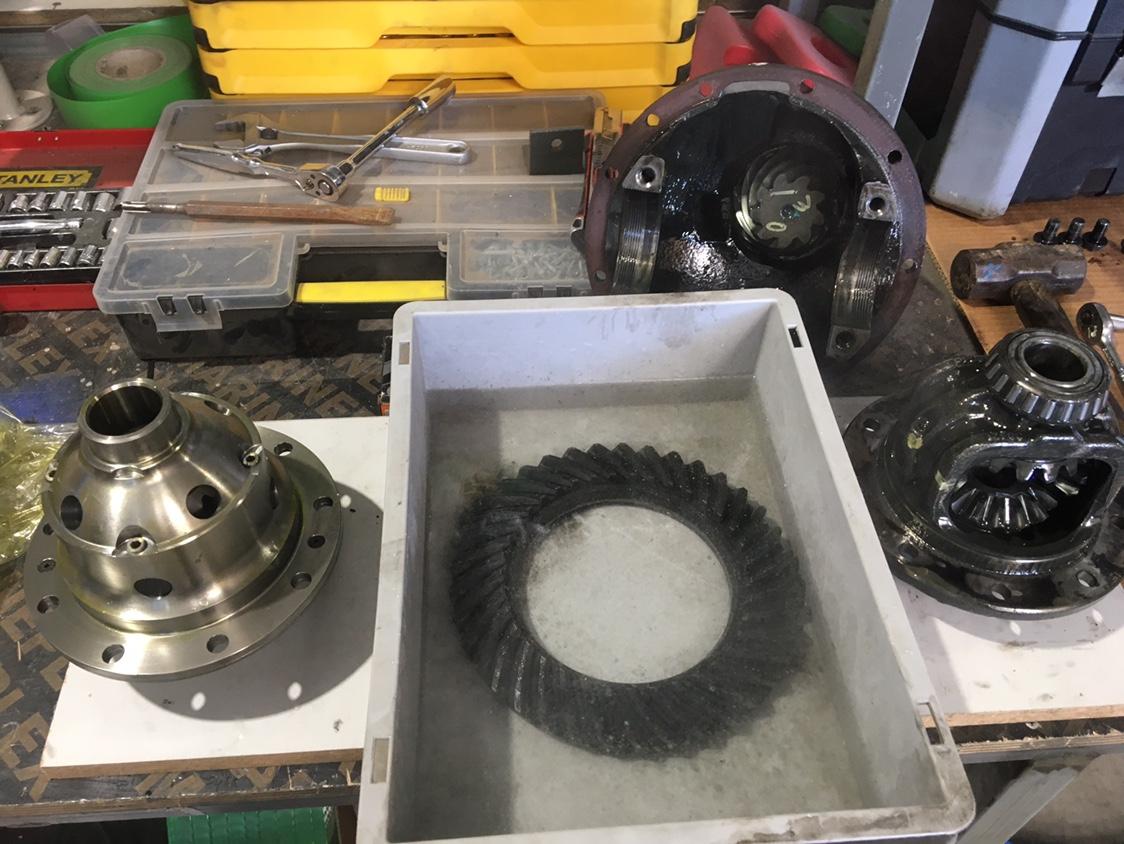

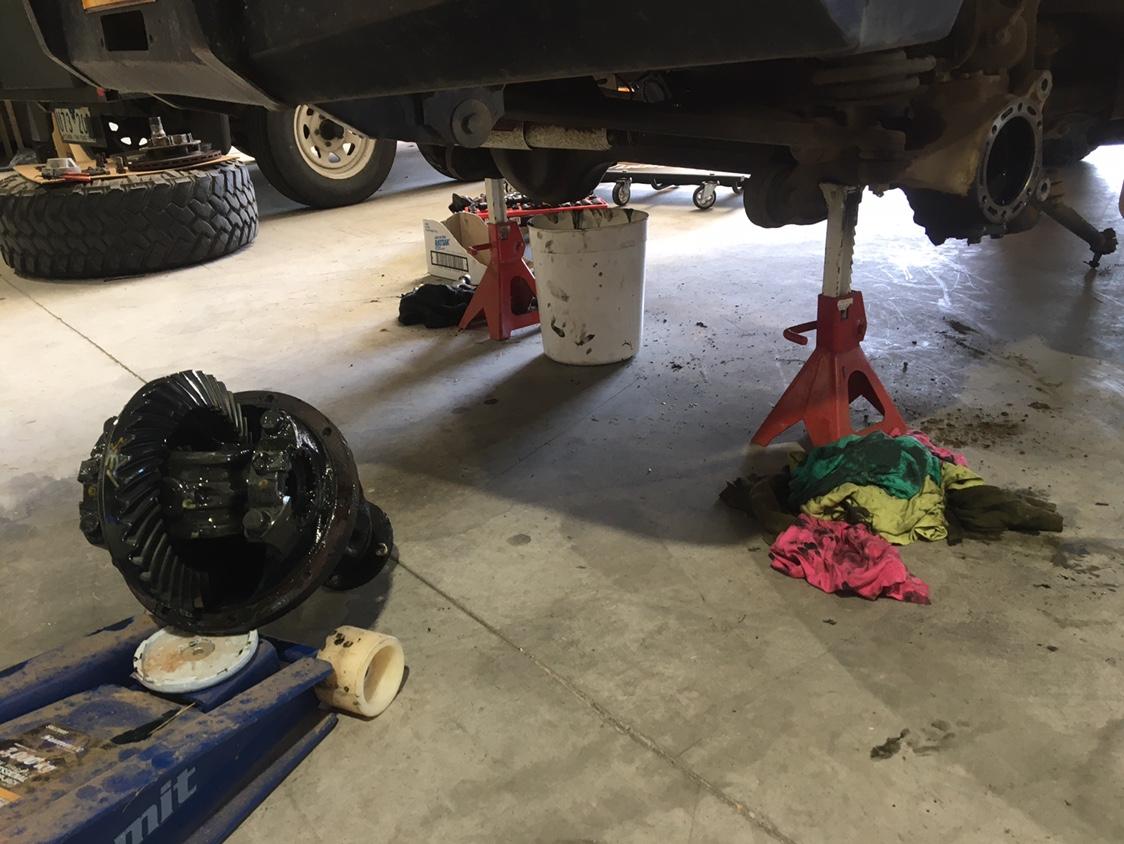

    Step #1 completed

    Crikey some of these 35 year old OEM bolts were tight


    Sent from my iPhone using Tapatalk

  9. #55
    ......... MB's Avatar
    Join Date
    Nov 2015
    Location
    Yarra Valley
    Posts
    6,491
    Thanks
    16,420
    Thanked 7,815 Times in 3,629 Posts
    Mentioned
    362 Post(s)
    Tagged
    0 Thread(s)

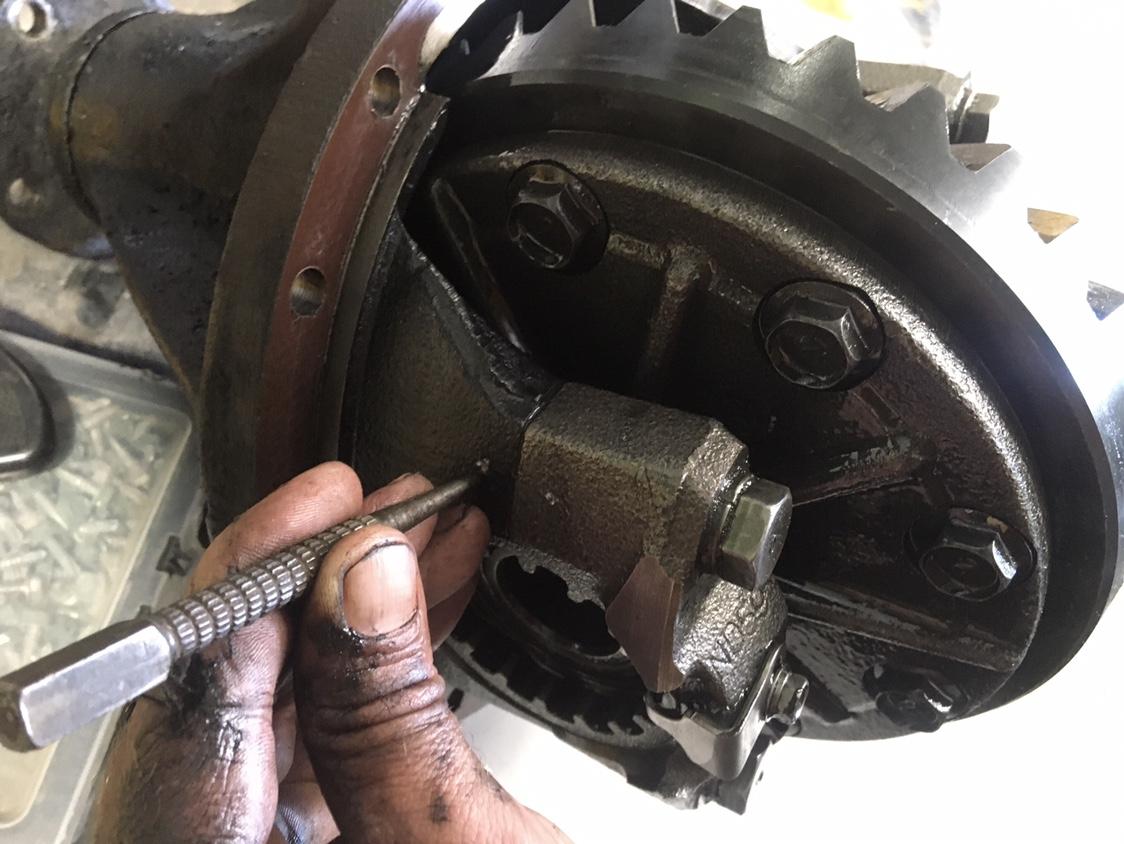

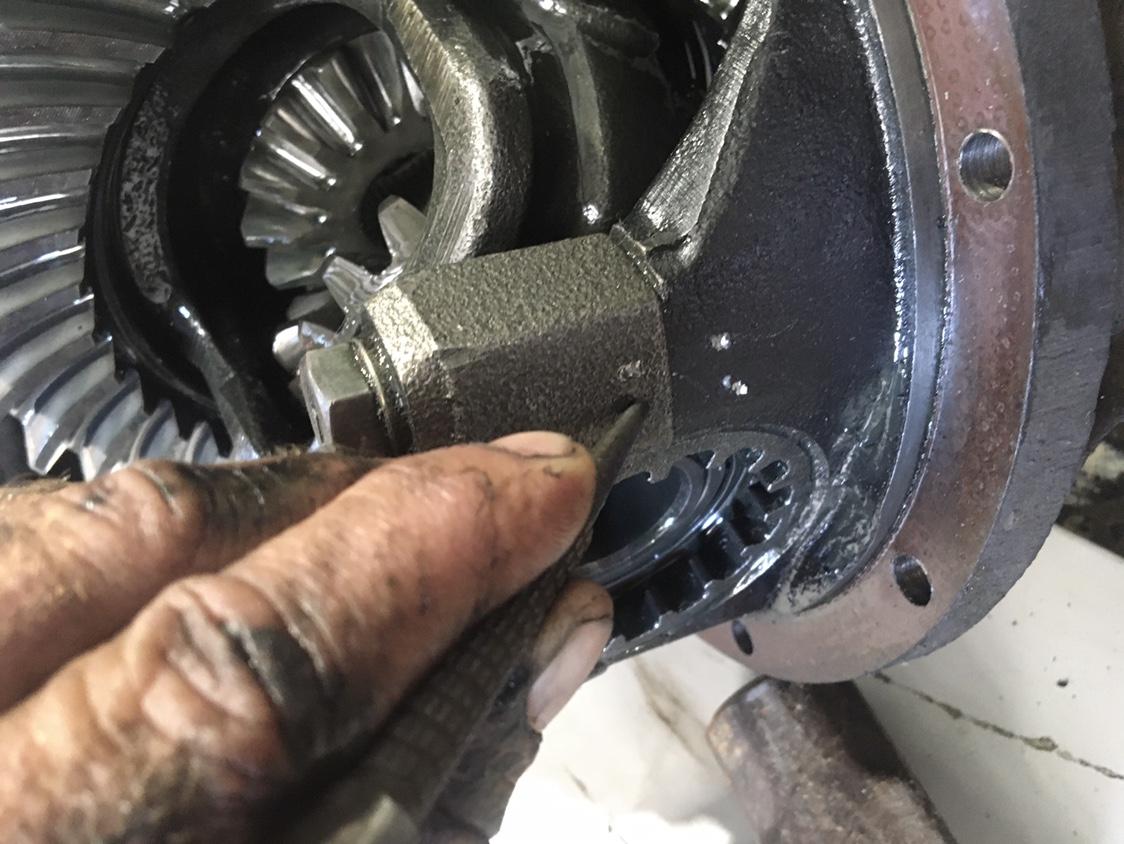

    Mark up the bearing carriers:

    A single ‘snake bite’ left:



    Double ‘snake bite’ right:




    Sent from my iPhone using Tapatalk

  10. #56
    ......... MB's Avatar
    Join Date
    Nov 2015
    Location
    Yarra Valley
    Posts
    6,491
    Thanks
    16,420
    Thanked 7,815 Times in 3,629 Posts
    Mentioned
    362 Post(s)
    Tagged
    0 Thread(s)

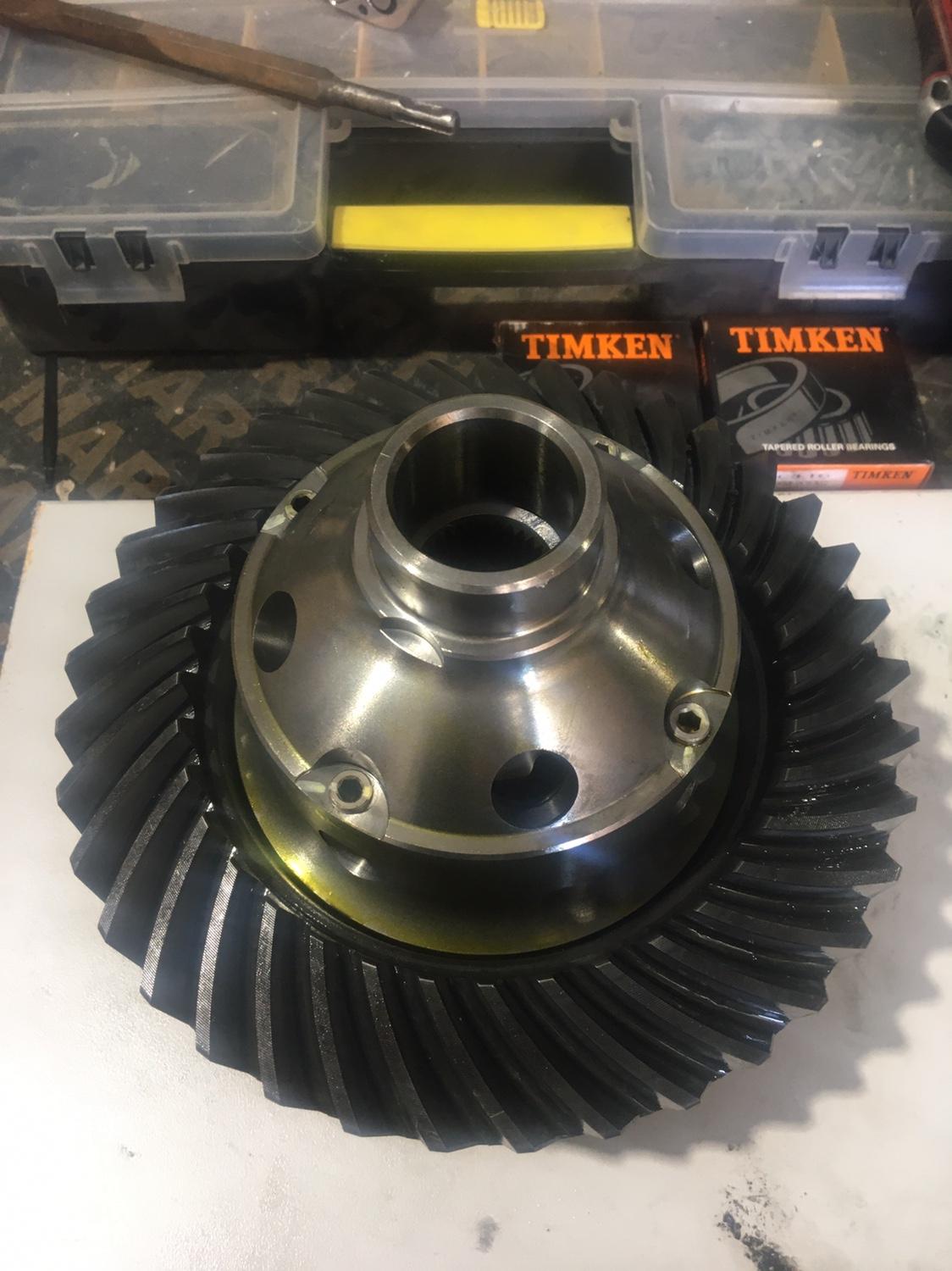

    A quick ‘Boiling Water’ bath expansion for the crown to fit over the new ARB center:

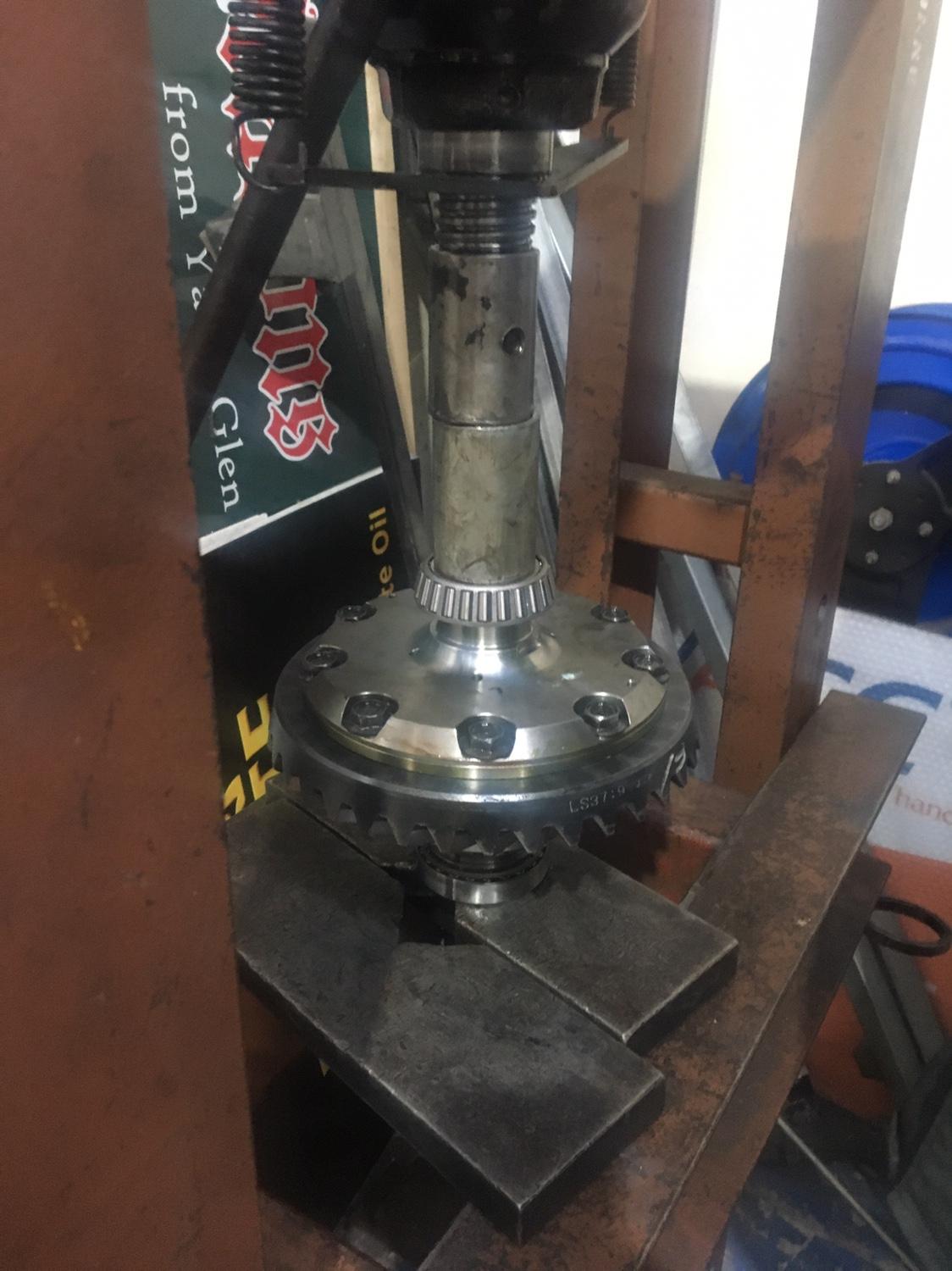

    And....this is where I stuffed up last time, make sure to utilise a correct sized press for the bearings!

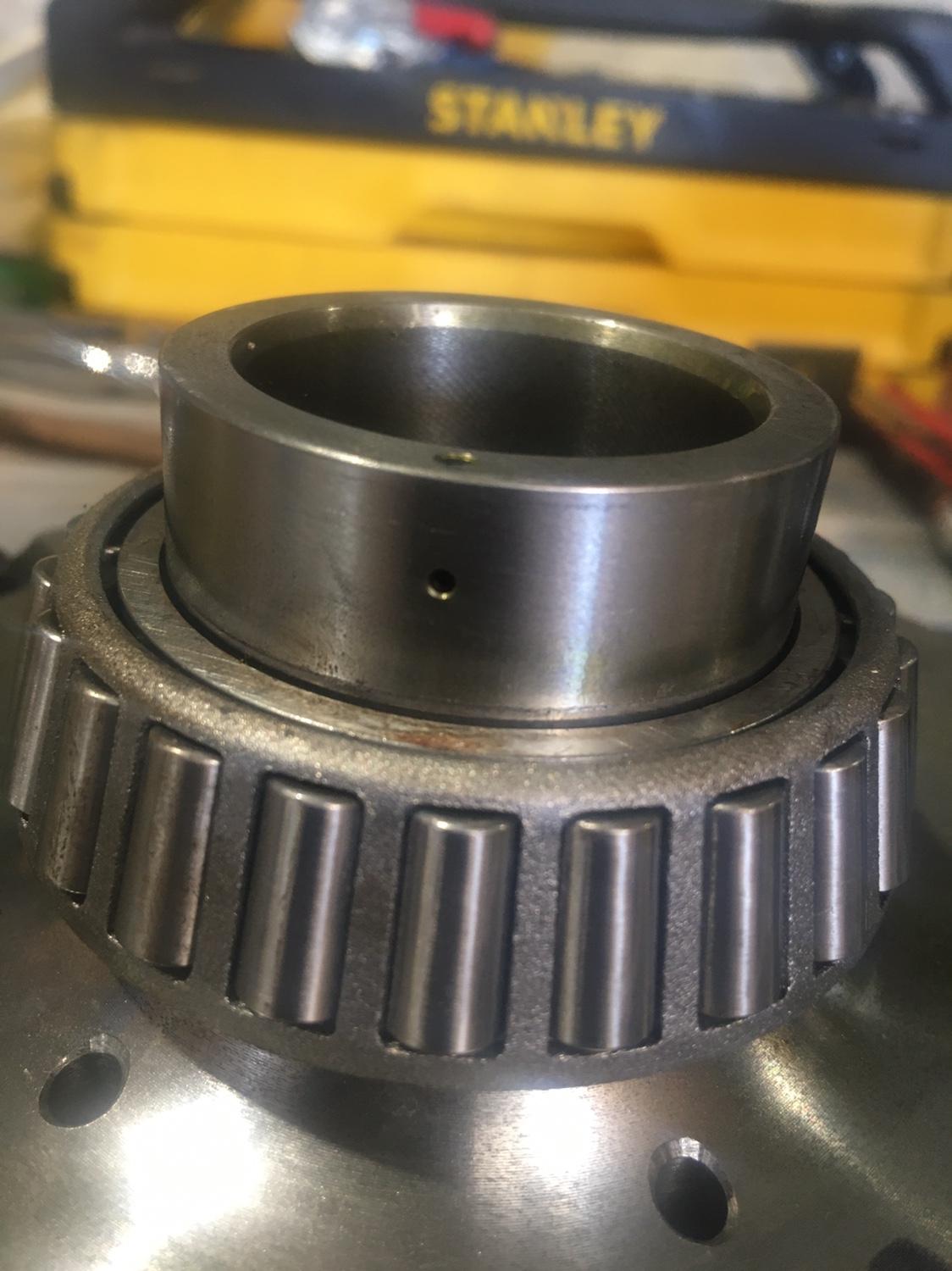

    It’s the tiny air hole area on the journal that needs to be scratch free!!




    Sent from my iPhone using Tapatalk

  11. The Following 2 Users Say Thank You to MB For This Useful Post:

    10G (8th February 2021), Winnie (3rd December 2020)

  12. #57
    The 747 Winnie's Avatar
    Join Date
    Dec 2011
    Location
    Newborough, VIC
    Posts
    15,341
    Thanks
    6,772
    Thanked 11,227 Times in 5,847 Posts
    Mentioned
    182 Post(s)
    Tagged
    1 Thread(s)
    Loving the photo journey, never seen how these are installed before.

    Sent from my SM-G986B using Tapatalk

  13. The Following User Says Thank You to Winnie For This Useful Post:

    MB (3rd December 2020)

  14. #58
    ......... MB's Avatar
    Join Date
    Nov 2015
    Location
    Yarra Valley
    Posts
    6,491
    Thanks
    16,420
    Thanked 7,815 Times in 3,629 Posts
    Mentioned
    362 Post(s)
    Tagged
    0 Thread(s)

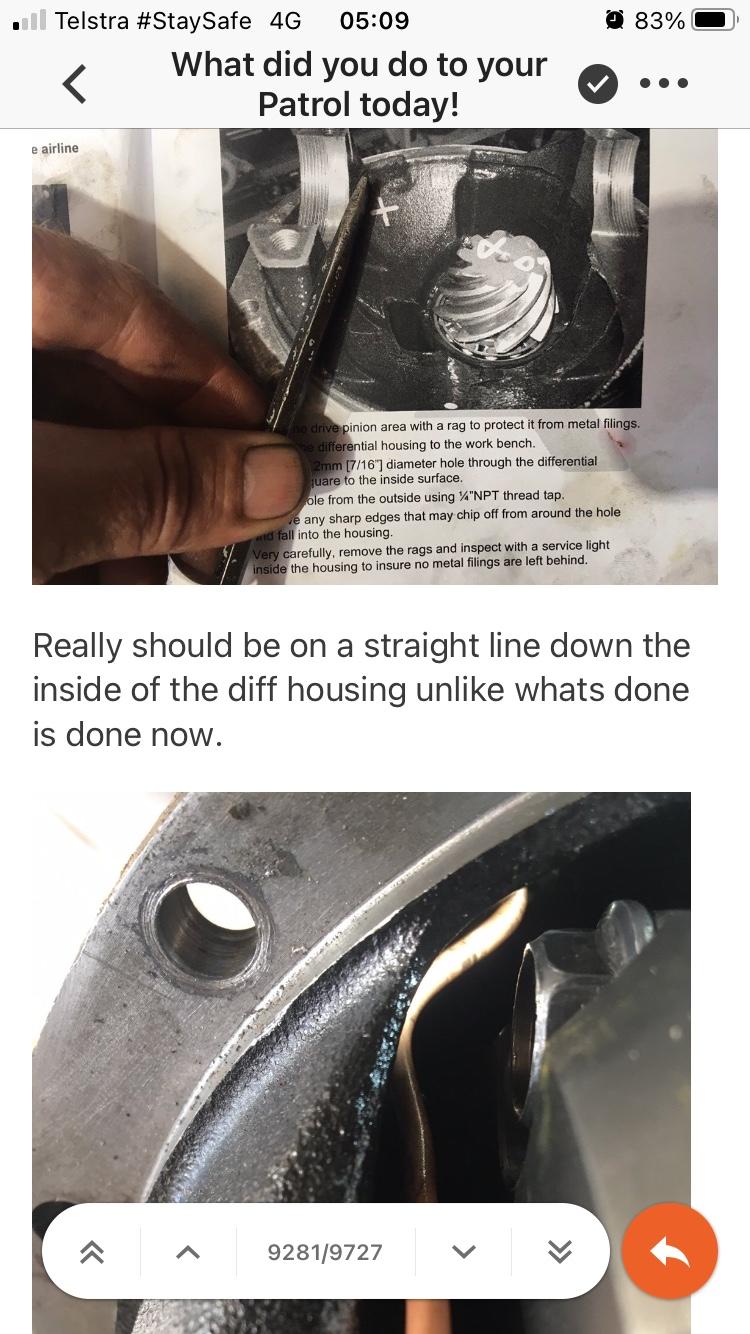

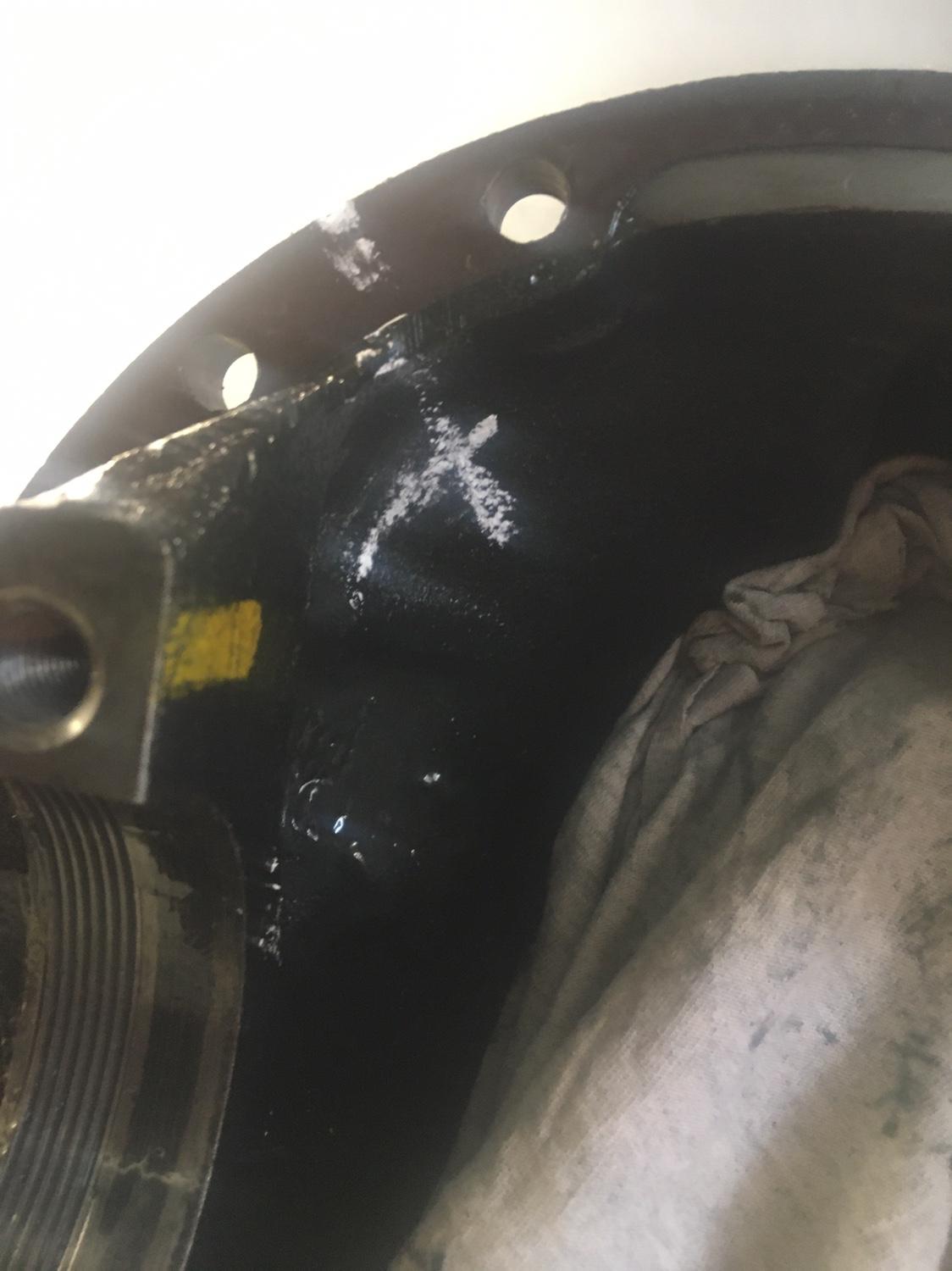

    Remembering from last time, found the ARB instructions a little misleading in regards to drilling and tapping the airline into the housing. Fingers crossed this slightly altered location should create a straight line away from the crown leading edge:

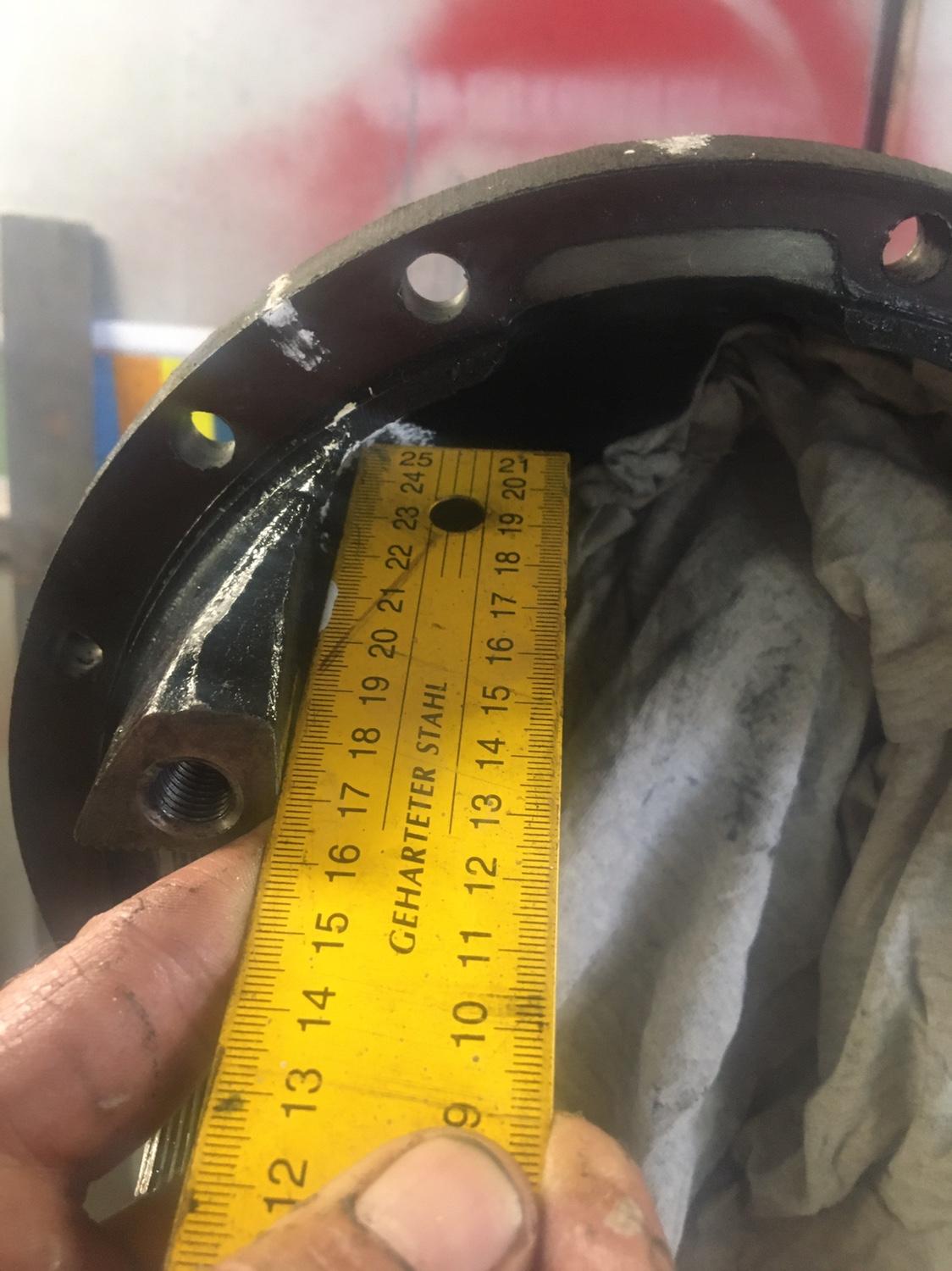

    Chose to centralise the airline between two upper housing bolts for hopefully easier reinstall also:

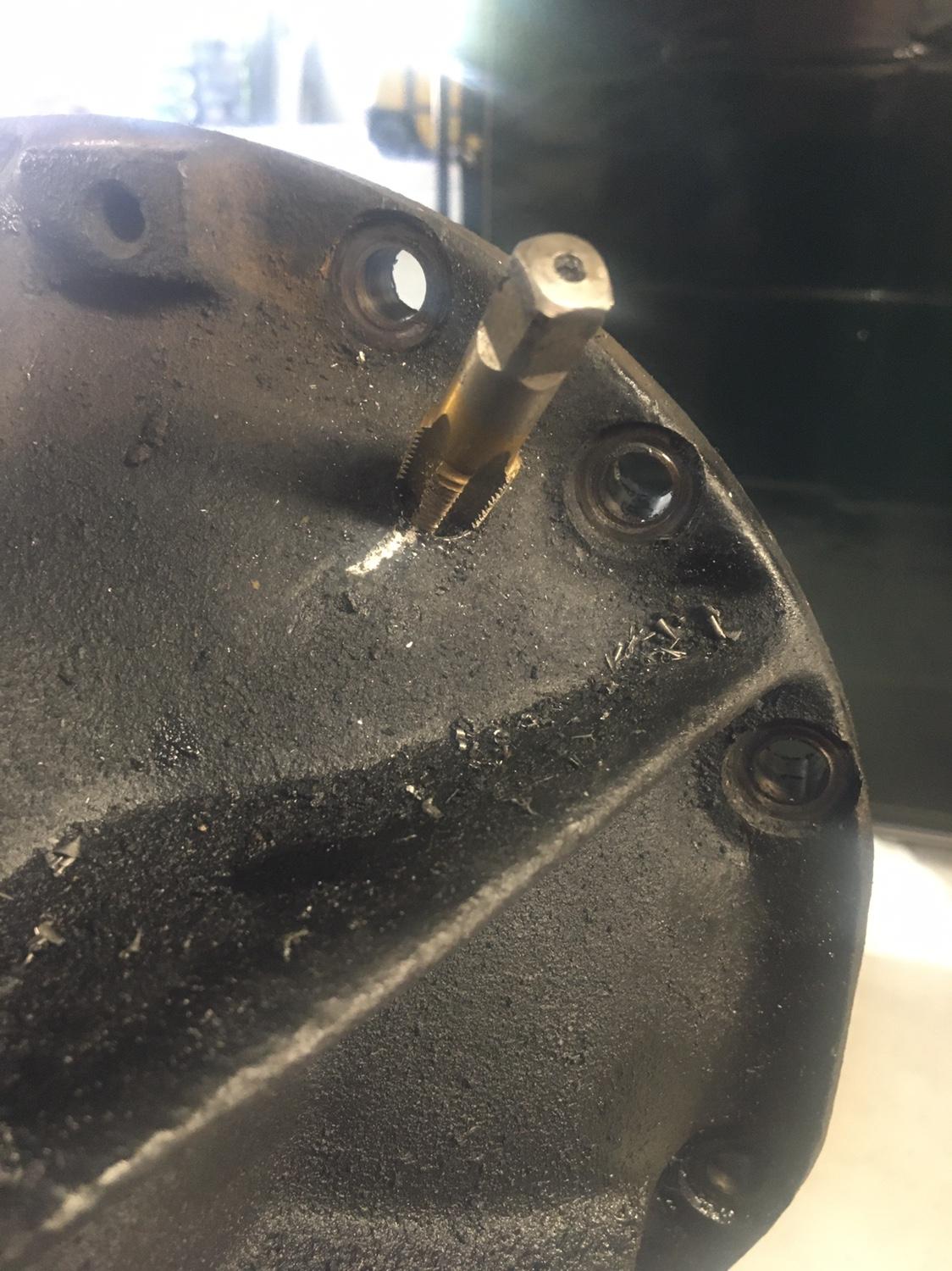

    Thank you kindly @PeeBee Mate for driving your 1/4 NPT tap all the way out again, appreciated heaps



    Sent from my iPhone using Tapatalk

  15. The Following 2 Users Say Thank You to MB For This Useful Post:

    10G (8th February 2021), PeeBee (3rd December 2020)

  16. #59
    Patrol Guru Bidja's Avatar
    Join Date
    Jul 2017
    Location
    Southern Table Lands, NSW
    Posts
    963
    Thanks
    995
    Thanked 891 Times in 511 Posts
    Mentioned
    30 Post(s)
    Tagged
    0 Thread(s)
    @MB Noticed U wiped off the hands for assy_looking good mate

    After 30 yrs of hard yakka, how do teeth look (crown/pinion wear mark / shine) and out of interest did U check backlash with indicator_ nom 0.010"??? is the go not sure there..
    2008 GU WAG ST Manual CRD - To do the job

  17. The Following User Says Thank You to Bidja For This Useful Post:

    MB (3rd December 2020)

  18. #60
    ......... MB's Avatar
    Join Date
    Nov 2015
    Location
    Yarra Valley
    Posts
    6,491
    Thanks
    16,420
    Thanked 7,815 Times in 3,629 Posts
    Mentioned
    362 Post(s)
    Tagged
    0 Thread(s)
    All looks pretty decent inside John Mate, tis only the front diff though so far less wear expected
    Set backlash by feel under mechanics guidance next factory over



    Sent from my iPhone using Tapatalk
