    Fridge wiring.

    I'm now looking at hard wiring the console fridge through a switch.

    I'm going to need some help on what wire and fuse I need to use. My aux battery is behind the back seat and a fuse block is just above that.

    What I want to do is cut off the cigarette plug from the fridge and extend the wires to a switch and then to the battery.

    Any advice would be greatly appreciated.

    Sent from my CPH1979 using Tapatalk
    12/97 GEE YOU
    4.5lt Gas blower. Lots of mods to come.....all in good time.

  2. # ADS
    Circuit advertisement
    Join Date
    Always
    Location
    Advertising world
    Posts
    Many



  3. #2
    Expert Cremulator's Avatar
    Join Date
    Jun 2018
    Location
    Melbourne
    Posts
    212
    Thanks
    368
    Thanked 284 Times in 136 Posts
    Mentioned
    10 Post(s)
    Tagged
    0 Thread(s)
    If you unscrew the cigarette plug end, there should be a glass tube fuse in it. It will have the amperage on it.
    Once you cut the plug off you should then be able to connect your switch and extend the wires to the fuse block near your battery with the same rated fuse that was in the cigarette plug.
    (*I'm not an auto electrician)

  4. #3
    Expert Brissieboy's Avatar
    Join Date
    Jul 2015
    Location
    Brisbane, Qld
    Posts
    167
    Thanks
    58
    Thanked 139 Times in 86 Posts
    Mentioned
    2 Post(s)
    Tagged
    0 Thread(s)
    Not very practical to hard wire the fridge. It will be a PITA when you need to pull it out for any reason - and you almost certainly will need to pull it out. Best option is to use an Anderson connector I reckon. You can still go with the switch and fuse.

  5. #4
    In Moderation
    mudski's Avatar
    Join Date
    Apr 2012
    Location
    Eltham North
    Posts
    13,220
    Thanks
    6,462
    Thanked 8,180 Times in 5,016 Posts
    Mentioned
    344 Post(s)
    Tagged
    0 Thread(s)
    Use what ever fuse its rate for and no higher, for the wire I would probably use 6mm minimum. That will be more that what the OEM cable is anyway so you should be fine. Or do what Brissieboy has said.

  6. #5
    Moderator MudRunnerTD's Avatar
    Join Date
    Jun 2010
    Location
    Geelong
    Posts
    13,955
    Thanks
    10,248
    Thanked 10,914 Times in 5,634 Posts
    Mentioned
    229 Post(s)
    Tagged
    1 Thread(s)
    I would run a circuit from your fuse board at the back to an Anderson Plug under the console fridge and then use an Anderson plug off your fridge. This will give you a fused circuit and flexibility if you ever have to take it out. If you can also put an inline fuse in your new lead off the fridge then you are double protected and take protection with the fridge if you ever take to another car.

    you need to join the lead to the new circuit anyway so you might as well just use an Anderson Plug for that joint.
    Its a Nissan! =====> Its a Keeper!! ....... Got a TD42 in it BONUS!! ....... I'm a lucky bugger! I've got 2 of em!
    Check out my Toy --> MudRunnerTD's GQ From the Ground Up

    Quote Originally Posted by Rogue Dung Beetle View Post
    Wish it was Nissan though, Toyotas just can't keep up with the Pootrol pace.
    The only good thing about an 80 series is..... the front end?? Wrong!!, the Engine?? Wrong!! the Full Time 4WD system?? Wrong!! Its the NissanPatrol.com.au stubby holder fitted over the transfer lever.
    WARNING: Towballs used for recoveries can, and do kill people and damage property.

  7. #6
    Expert Cremulator's Avatar
    Join Date
    Jun 2018
    Location
    Melbourne
    Posts
    212
    Thanks
    368
    Thanked 284 Times in 136 Posts
    Mentioned
    10 Post(s)
    Tagged
    0 Thread(s)

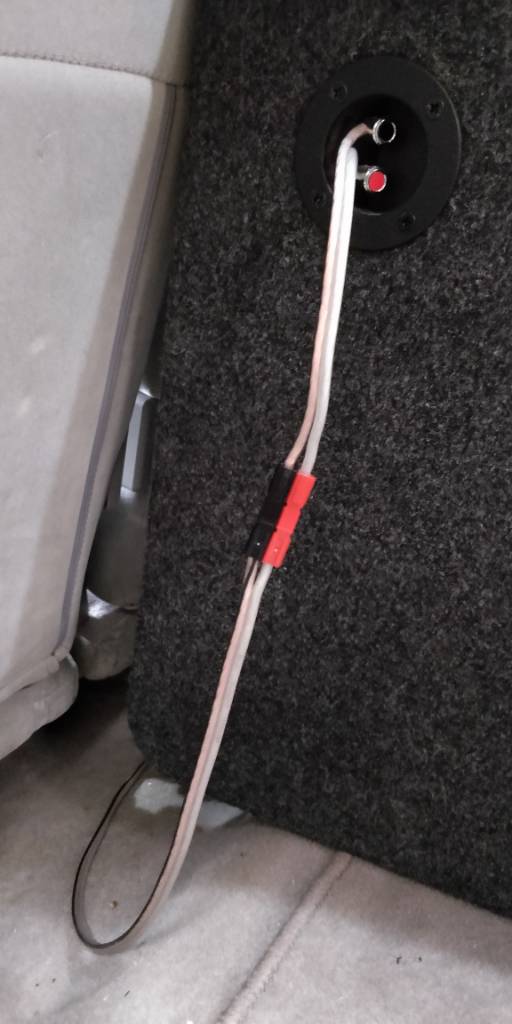

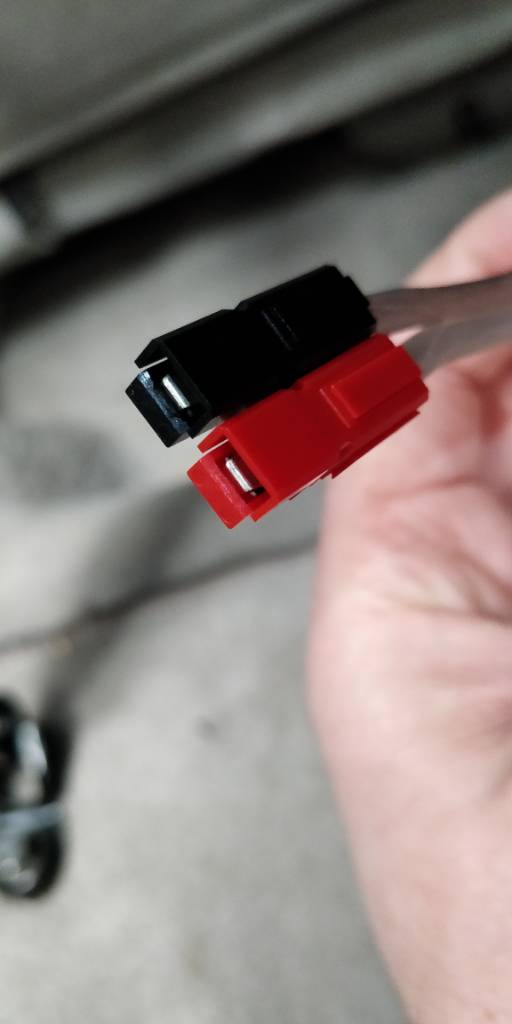

    The Anderson connection is a great suggestion. I'd use some of these Anderson powerpole connectors: https://www.jaycar.com.au/45a-anders...r-set/p/PT4406
    They are more compact than the regular Anderson plugs.
    I used some of these on the 12gauge cable for the sub in my car.

  8. #7
    Moderator MudRunnerTD's Avatar
    Join Date
    Jun 2010
    Location
    Geelong
    Posts
    13,955
    Thanks
    10,248
    Thanked 10,914 Times in 5,634 Posts
    Mentioned
    229 Post(s)
    Tagged
    1 Thread(s)
    Quote Originally Posted by Cremulator View Post
    The Anderson connection is a great suggestion. I'd use some of these Anderson powerpole connectors: https://www.jaycar.com.au/45a-anders...r-set/p/PT4406
    They are more compact than the regular Anderson plugs.
    I used some of these on the 12gauge cable for the sub in my car.
    Yeah i agree, the smaller style of Anderson will be plenty for this application. the problem with the full size anderson is the cable your using is just a bastard to clamp down in an Anderson plug.
    Its a Nissan! =====> Its a Keeper!! ....... Got a TD42 in it BONUS!! ....... I'm a lucky bugger! I've got 2 of em!
    Check out my Toy --> MudRunnerTD's GQ From the Ground Up

    Quote Originally Posted by Rogue Dung Beetle View Post
    Wish it was Nissan though, Toyotas just can't keep up with the Pootrol pace.
    The only good thing about an 80 series is..... the front end?? Wrong!!, the Engine?? Wrong!! the Full Time 4WD system?? Wrong!! Its the NissanPatrol.com.au stubby holder fitted over the transfer lever.
    WARNING: Towballs used for recoveries can, and do kill people and damage property.

  9. #8
    Travelling Podologist Cuppa's Avatar
    Join Date
    Jan 2011
    Location
    Ballarat, Vic
    Posts
    6,169
    Thanks
    1,719
    Thanked 6,226 Times in 2,631 Posts
    Mentioned
    122 Post(s)
    Tagged
    0 Thread(s)
    Looks like Darren's got you covered - Andersen plug is the way to go.
    Doesn't sound like you will have much length of cable - but heavier is better than lighter. More fridge problems are voltage loss problems due to too thin cable than anything else.

    2006 4.2TDi ex-Telstra Remote area Camper. 425w roof mounted solar, 360Ah Aux batts, BCDC1240, Onboard hot & cold pressurised & filtered water, (25 litre hot water calorifier), ARB fridge, ARB freezer, Built in kitchen, 240v, 3 Genie exhaust + dynotune, 2 lift, Lovells GVM upgrade, ROH Blaktrak steel wheels, Bridgestone D697s, Redarc gauges/pillarpod, Hema HX-1, CB, dual rear view cameras, Onboard 30amp Victron mains charger, second glovebox, dual seat conversion, Tyredog TPMS, Boss PX7 onboard air with 9 litre tank, 350w inverter, Steel bullbar, Harrop Eaton diff lock (front), Warn winch, Snorkel, Dual spares , 160 litre water tank, 2010 Tvan Tanami. (incl another 70 litre water tank) with matching wheels/tyres (& 3rd spare)
    A Nomadic Life
    The Big Trip Blog

  10. #9
    Legendary jay see's Avatar
    Join Date
    May 2014
    Location
    Melbourne
    Posts
    3,388
    Thanks
    3,009
    Thanked 2,241 Times in 1,363 Posts
    Mentioned
    35 Post(s)
    Tagged
    0 Thread(s)
    Thank you gents.

    An Anderson plug is probably the way to go. A quick eBay search brought up this.
    I'm pretty sure that's the same as I'm using for my 50l when it's in the back.

    https://www.ebay.com.au/itm/264217037012

    Sent from my CPH1979 using Tapatalk
    12/97 GEE YOU
    4.5lt Gas blower. Lots of mods to come.....all in good time.

  11. #10
    Legendary jay see's Avatar
    Join Date
    May 2014
    Location
    Melbourne
    Posts
    3,388
    Thanks
    3,009
    Thanked 2,241 Times in 1,363 Posts
    Mentioned
    35 Post(s)
    Tagged
    0 Thread(s)
    Quote Originally Posted by MudRunnerTD View Post
    If you can also put an inline fuse in your new lead off the fridge then you are double protected and take protection with the fridge if you ever take to another car.
    When I took off the front cover there was a fuse (I think 10amp) as part of the 12v wiring.

    Sent from my CPH1979 using Tapatalk
    12/97 GEE YOU
    4.5lt Gas blower. Lots of mods to come.....all in good time.
