    Rear Winches - Lowering Down versus Hauling Dead Vehicles Up

    G’day NissanPatrol.com.au,
    Being an electrical nuffy are keen to learn pretty please if lowering a Patrol or any big chunk of great steel down a descent length slippery hill could ruin an off the shelf say 12v rear mounted ute winch.
    Have heard IIRC around the traps that winch motors do not appreciate being spooled out under power for too long?
    Managed to sneak in a quick Google query earlier today and only seemed to come up with winch brakes ‘outwards’ are externally (gearbox) preferred versus inner drum brakes due to overheating/melting new age rope on their drum cores apparently?
    As a secondary usage and more importantly a slow but highly torqued rear winch could hopefully help haul out dead/caput vehicles on super tight 40 point turn impossible tracks?





    Sent from my iPhone using Tapatalk

  2. # ADS
    Circuit advertisement
    Join Date
    Always
    Location
    Advertising world
    Posts
    Many



  3. #2
    Legendary
    PeeBee's Avatar
    Join Date
    Sep 2016
    Location
    Melbourne South east
    Posts
    4,702
    Thanks
    4,571
    Thanked 4,647 Times in 2,645 Posts
    Mentioned
    189 Post(s)
    Tagged
    0 Thread(s)
    MB, only impact is heat within the motor, if the winch is going forward or backwards, under same load, same heat. The issue with the brake is different as you know no doubt. If the vehicle is being backed down a hill via a winch, under power, the weight of the vehicle may exceed the torque, hence it would start to 'run=away'. Your brake then comes into play to decelerate, however the brake is not proportional to load, ie weight x speed if the vehicle is generating a load greater than the winch drive can handle, hence it might slip or stutter to a stop. Over repeated applications it may well glaze up and fail.This is a negative attribute of the electric winch brake set up, however they are generally configured to pull forward where the vehicle is simply arrested at the stop point or when you release the power button. The inertia build up is greatly reduced compared to a run-away condition, hence the brake works well. This is why I like my hydraulic winch - works all day forward and backwards if required, no fade.

    I don't think you would have a problem in 'real world use' using a winch like this, however if you had to go a couple of hundred metres, you might run into trouble or at best need to rest the brake so it cools back down.

  4. The Following User Says Thank You to PeeBee For This Useful Post:

    MB (18th April 2018)

  5. #3
    I am he, fear me the evil twin's Avatar
    Join Date
    Jun 2010
    Location
    W.A. (wandering aust)
    Posts
    6,208
    Thanks
    904
    Thanked 6,640 Times in 3,287 Posts
    Mentioned
    44 Post(s)
    Tagged
    1 Thread(s)
    Depends on the Winch, or more specifically the brake set up.
    Many drum braked eleccy winches (esp low mounts) are not designed to be winched out under power for anything other than unloading/disconnecting IE a couple of metres
    On multiple occasions I've had to replace Dyneema that looks like the last wrap was plastic plates melted around the drum on WARN's.

    Externally braked eleccy and hydraulic etc will all do the job but be very wary of doing that with drum braked jobbies unless they are made to do that job
    Dolphins are so smart that within a few weeks of captivity, they can train people to stand on the very edge of the pool and throw them fish.

  6. The Following 2 Users Say Thank You to the evil twin For This Useful Post:

    MB (18th April 2018), PeeBee (18th April 2018)

  7. #4
    ......... MB's Avatar
    Join Date
    Nov 2015
    Location
    Yarra Valley
    Posts
    8,592
    Thanks
    22,662
    Thanked 11,215 Times in 4,942 Posts
    Mentioned
    468 Post(s)
    Tagged
    0 Thread(s)
    Thank you Gents, appreciate the top advice as always!

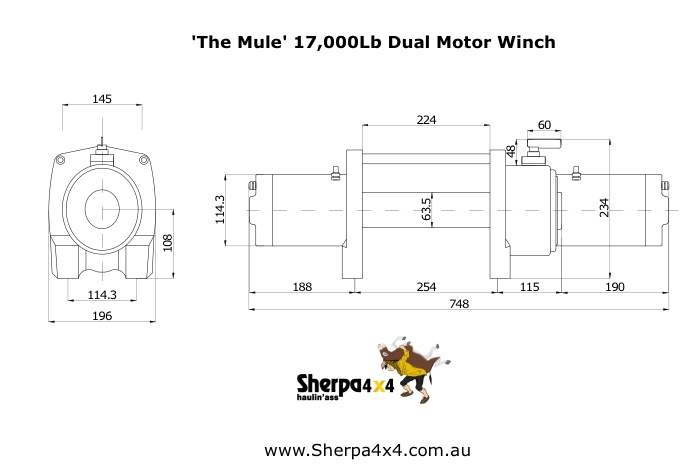

    Found this ‘Sherpa 4x4’ Mule beast on Google, would be really great to hear your thoughts on them in this rear mount application.
    https://www.sherpa4x4.com.au/collect...inch-australia
    They appear very aware of drum heat issues within the link and pasted below also:
    “Braking Design - Beware of cheap imitations! Many winches on the market use a ‘Brake in drum’ design which causes heat to build up in the winch damaging synthetic rope. ‘Brake in Drum’ winches are not designed for synthetic rope, this will become obvious at the most inconvenient time. Sherpa 4x4 winches are compatible with all types of synthetic rope as the brake is designed into the gearbox. This innovative design results in a trouble and heat free winch and braking combination.”

    Cheers!!


    Sent from my iPhone using Tapatalk

  8. #5
    Legendary
    PeeBee's Avatar
    Join Date
    Sep 2016
    Location
    Melbourne South east
    Posts
    4,702
    Thanks
    4,571
    Thanked 4,647 Times in 2,645 Posts
    Mentioned
    189 Post(s)
    Tagged
    0 Thread(s)
    I think the internal brakes using friction surfaces are the killers. My electric 12000lb Milemarker winch, which I think is simply a chinese derivative, has a spring coil mechanism and I punished that for a while without detriment to the synthetic rope, always seemed to run cool. By comparison my 8000lb Warn low mount with a friction cone assy would certainly heat up very quickly. This unit obviously focuses on the brake issue, and it looks very robust. Run a tape over the length and room first as it looks really long with the two motors

  9. The Following User Says Thank You to PeeBee For This Useful Post:

    MB (18th April 2018)

  10. #6
    ......... MB's Avatar
    Join Date
    Nov 2015
    Location
    Yarra Valley
    Posts
    8,592
    Thanks
    22,662
    Thanked 11,215 Times in 4,942 Posts
    Mentioned
    468 Post(s)
    Tagged
    0 Thread(s)
    Thanks Phil, should fit no problem on the GU as is 748mm wide its spec sheet appears.


    Sent from my iPhone using Tapatalk

  11. #7
    Legendary Rossco's Avatar
    Join Date
    Jun 2010
    Posts
    4,552
    Thanks
    10,263
    Thanked 6,915 Times in 2,749 Posts
    Mentioned
    190 Post(s)
    Tagged
    0 Thread(s)
    Just watched the crushing 4wd vid, always heard this story but never seen it happen- sure stuffed it. . . I Like how they state "don't try this at home" lol , bugger as just about to give it a go . . .

    Sent from my SM-G930F using Tapatalk

  12. The Following 2 Users Say Thank You to Rossco For This Useful Post:

    MB (18th April 2018), PeeBee (18th April 2018)

  13. #8
    Legendary
    PeeBee's Avatar
    Join Date
    Sep 2016
    Location
    Melbourne South east
    Posts
    4,702
    Thanks
    4,571
    Thanked 4,647 Times in 2,645 Posts
    Mentioned
    189 Post(s)
    Tagged
    0 Thread(s)
    Quote Originally Posted by MB View Post
    Thanks Phil, should fit no problem on the GU as is 748mm wide its spec sheet appears.


    Sent from my iPhone using Tapatalk
    Rails on the GQ are maybe 640 from memory - certainly can't fit a warn 12000lb low mount.

  14. #9
    ......... MB's Avatar
    Join Date
    Nov 2015
    Location
    Yarra Valley
    Posts
    8,592
    Thanks
    22,662
    Thanked 11,215 Times in 4,942 Posts
    Mentioned
    468 Post(s)
    Tagged
    0 Thread(s)
    Just measured AB’s GQ work ute rails at 1005mm inside to inside.
    640mm is tiny you whacker :-)!


    Sent from my iPhone using Tapatalk

  15. #10
    Legendary
    PeeBee's Avatar
    Join Date
    Sep 2016
    Location
    Melbourne South east
    Posts
    4,702
    Thanks
    4,571
    Thanked 4,647 Times in 2,645 Posts
    Mentioned
    189 Post(s)
    Tagged
    0 Thread(s)
    Quote Originally Posted by MB View Post
    Just measured AB’s GQ work ute rails at 1005mm inside to inside.
    640mm is tiny you whacker :-)!


    Sent from my iPhone using Tapatalk
    Yeah, sorry, was thinking about that on the way home and the 640 is between the front rails, and the chassis does flare out just behind the rear seat from memory.

  16. The Following User Says Thank You to PeeBee For This Useful Post:

    MB (18th April 2018)
