Thread: Show me your solar panel connections!?!

  1. #1
    Expert bishbashbosh's Avatar
    Join Date
    Nov 2014
    Location
    Melbourne
    Posts
    199
    Thanks
    153
    Thanked 100 Times in 39 Posts
    Mentioned
    0 Post(s)
    Tagged
    0 Thread(s)

    Show me your solar panel connections!?!

    i'll not be using the regulator on the panels i buy as i got the ctek - if anyone else does similar can you please show me how you connect from your solar panels? i.e. what plug types and what size cable

    i'll be hooking up with an SB50 Anderson Plug from my truck to 5 metres of 8B&S cable - but once i get to the ned of that cable i'm lost on how to attach to the 120watt foldable panels?

    Do I just connect them with a SB50 Anderson Plug or something different?

    Also whats the difference between an SB50 and an SBS50?

    thanks heap!
    Last edited by bishbashbosh; 9th December 2014 at 10:35 PM.

  2. # ADS
    Circuit advertisement
    Join Date
    Always
    Location
    Advertising world
    Posts
    Many



  3. #2
    Travelling Podologist Cuppa's Avatar
    Join Date
    Jan 2011
    Location
    Ballarat, Vic
    Posts
    6,100
    Thanks
    1,570
    Thanked 5,873 Times in 2,509 Posts
    Mentioned
    108 Post(s)
    Tagged
    0 Thread(s)
    Hi Billy, have a look at the beginning of my video & you might see how I used anderson plugs to connect to the solar panels.
    https://www.youtube.com/watch?v=rsRR0z69t3I

    The Anderson web site might be useful too - http://andersonpower.com.au, not sure what the difference between SBS & SB is.

    2006 4.2TDi ex-Telstra Remote area Camper. 425w roof mounted solar, 360Ah Aux batts, BCDC1240, Onboard hot & cold pressurised & filtered water, (25 litre hot water calorifier), ARB fridge, ARB freezer, Built in kitchen, 240v, 3” Genie exhaust + dynotune, 2” lift, Lovells GVM upgrade, ROH Blaktrak steel wheels, Bridgestone D697’s, Redarc gauges/pillarpod, Hema HX-1, CB, dual rear view cameras, Onboard 30amp Victron mains charger, second glovebox, dual seat conversion, Tyredog TPMS, Boss PX7 onboard air with 9 litre tank, 350w inverter, Steel bullbar, Harrop Eaton diff lock (front), Warn winch, Snorkel, Dual spares , 160 litre water tank, 2010 Tvan Tanami. (incl another 70 litre water tank) with matching wheels/tyres (& 3rd spare)
    A Nomadic Life
    The Big Trip Blog

  4. The Following User Says Thank You to Cuppa For This Useful Post:

    bishbashbosh (10th December 2014)

  5. #3
    Patrol God
    Join Date
    Mar 2012
    Location
    brisbane
    Posts
    5,039
    Thanks
    963
    Thanked 1,830 Times in 1,250 Posts
    Mentioned
    0 Post(s)
    Tagged
    0 Thread(s)
    By the looks mine is Much the same as cuppa.

    I've just removed the reg and replaced it with an Anderson plug on each of my panels. I've also made a splitter as I've got 2x 120w and run them to the splitter then via 2x 10m extension to the car/camper(if needed obviously less is best).

    I've got a plug on the bull bar that runs to the ctek so connecting it is easy, if camping for extended periods with the camper I have a ctek in that also with a plug on the front and back

    Your ctek can take 250w of solar also

    You can get pack of 10 Anderson plugs on ebay for a good price also

  6. The Following User Says Thank You to megatexture For This Useful Post:

    bishbashbosh (10th December 2014)

  7. #4
    Expert bishbashbosh's Avatar
    Join Date
    Nov 2014
    Location
    Melbourne
    Posts
    199
    Thanks
    153
    Thanked 100 Times in 39 Posts
    Mentioned
    0 Post(s)
    Tagged
    0 Thread(s)
    thanks guys - have put an order through at andersonpower.. the owner shane seems pretty decent and responds quick and helpful!

  8. #5
    Patrol God threedogs's Avatar
    Join Date
    Jun 2012
    Location
    Melb
    Posts
    33,028
    Thanks
    10,163
    Thanked 9,676 Times in 7,261 Posts
    Mentioned
    96 Post(s)
    Tagged
    2 Thread(s)
    Also only buy the grey Anderson plugs the coloured ones dont fit the grey and vice versa.
    Best to use what everyone else uses in case you need to swap/share gear out bush
    04 ST 3lt auto, not enough Mods to keep me happy, but getting there

  9. The Following User Says Thank You to threedogs For This Useful Post:

    bishbashbosh (10th December 2014)

  10. #6
    Expert bishbashbosh's Avatar
    Join Date
    Nov 2014
    Location
    Melbourne
    Posts
    199
    Thanks
    153
    Thanked 100 Times in 39 Posts
    Mentioned
    0 Post(s)
    Tagged
    0 Thread(s)
    yup i thought that so am all grey in plugs!!!

  11. #7
    Patrol God
    Join Date
    Mar 2012
    Location
    brisbane
    Posts
    5,039
    Thanks
    963
    Thanked 1,830 Times in 1,250 Posts
    Mentioned
    0 Post(s)
    Tagged
    0 Thread(s)
    Quote Originally Posted by threedogs View Post
    Also only buy the grey Anderson plugs the coloured ones dont fit the grey and vice versa.
    Best to use what everyone else uses in case you need to swap/share gear out bush
    If you mean the coloured ones that pull apart they do fit the grey ones but you have to pull them apart and plug them in separately

  12. #8
    Advanced georges80's Avatar
    Join Date
    Nov 2012
    Location
    W.A. and California
    Posts
    32
    Thanks
    0
    Thanked 52 Times in 18 Posts
    Mentioned
    0 Post(s)
    Tagged
    0 Thread(s)
    IF you want to follow the Anderson recommendation, the YELLOW ones are for 12V. Of course it seems many folk have NOT followed their recommendation so end up with GREY which are 36V. It appears a) many males don't (or won't) read instructions and b) many distributors stock GREY preferentially to continue propagating the misconception that it is the standard for 12V.

    The coloured Anderson connectors typically have different keyways in the plastic so that they only mate with the same colour. e.g. a yellow SB50 wont mate with a grey SB50.

    To learn about this:

    http://www.andersonpower.com/literature/datasheets.html

    and download and READ the "Powerpole and Multipole Power Connectors" datasheet.

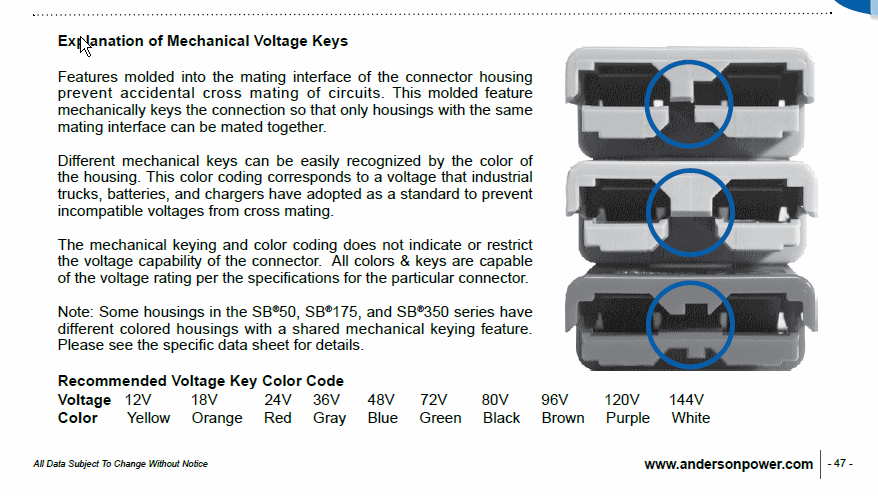

    This is the pertinent page on colour selection:



    I use YELLOW SB50 Anderson connectors on my vehicles. I do have a yellow/grey short 'extension' so that if necessary I can interface to the non-reading population...

    cheers,
    george.
    US: '97 S/C 1FZ 80 Cruiser White, lock^3,sliders,arb,kaymar,m12000,dual bats,FOX IFP front/Radflo Remotes rear,LEDs,etc..... ki6ibx
    OZ: '80 T/C SD33 MQ Patrol White, locked F/R, rack,sliders,arb,tyre carrier,8274,dual bats,LEDs,etc....

  13. The Following User Says Thank You to georges80 For This Useful Post:

    threedogs (13th May 2019)

  14. #9
    Travelling Podologist Cuppa's Avatar
    Join Date
    Jan 2011
    Location
    Ballarat, Vic
    Posts
    6,100
    Thanks
    1,570
    Thanked 5,873 Times in 2,509 Posts
    Mentioned
    108 Post(s)
    Tagged
    0 Thread(s)
    Thanks George, I hadn’t been aware of that, good to learn something new.

    I suppose it’s fair to say that most folk use a single voltage regime & that any of the Anderson plugs would work, but the prevention of ‘cross use’ between different voltage setups is necessary in some environments.

    2006 4.2TDi ex-Telstra Remote area Camper. 425w roof mounted solar, 360Ah Aux batts, BCDC1240, Onboard hot & cold pressurised & filtered water, (25 litre hot water calorifier), ARB fridge, ARB freezer, Built in kitchen, 240v, 3” Genie exhaust + dynotune, 2” lift, Lovells GVM upgrade, ROH Blaktrak steel wheels, Bridgestone D697’s, Redarc gauges/pillarpod, Hema HX-1, CB, dual rear view cameras, Onboard 30amp Victron mains charger, second glovebox, dual seat conversion, Tyredog TPMS, Boss PX7 onboard air with 9 litre tank, 350w inverter, Steel bullbar, Harrop Eaton diff lock (front), Warn winch, Snorkel, Dual spares , 160 litre water tank, 2010 Tvan Tanami. (incl another 70 litre water tank) with matching wheels/tyres (& 3rd spare)
    A Nomadic Life
    The Big Trip Blog

  15. #10
    Expert Agronaught's Avatar
    Join Date
    Sep 2012
    Location
    Sydney, NSW
    Posts
    446
    Thanks
    9
    Thanked 189 Times in 104 Posts
    Mentioned
    0 Post(s)
    Tagged
    0 Thread(s)
    i use both.

    The 55 amper for battery connections, the smaller plugs for equipment. The smaller andersons are fairly standard in amateur radio and growing in popularity in some of the rescue organisations.
