    Custom Snorkel setups

    Id like to start a thread where people can post pictures of their custom snorkel setups to help out others that are planning to do the same.
    Here are a few pictures of mine and a mates.
    Please feel free to upload any pictures you have of your custom snorkel setup, especially if it is out of the ordinary.

    Here is a detailed DIY thread on making a custom stainless steel 4" snorkel for a TD42. Compiled by our very own AB.... http://www.nissanpatrol.com.au/forum...-steel-snorkel
    Last edited by taslucas; 20th March 2013 at 09:41 AM.
    91 GQ Ti TB42 Wagon/Pertronix 2/Nomad Heavy Duty Auto/33"STTs/2"Springs/Uniden/Stainless Snorkel/Spotties
    --TAS--Under Down under--


    Get your forum stickers here!

  2. # ADS
    Circuit advertisement
    Join Date
    Always
    Location
    Advertising world
    Posts
    Many



  3. #2
    Patrol God taslucas's Avatar
    Join Date
    Aug 2011
    Location
    North West Tas
    Posts
    10,647
    Thanks
    3,261
    Thanked 6,617 Times in 3,583 Posts
    Mentioned
    51 Post(s)
    Tagged
    1 Thread(s)
    Heres mine:
    (note the flexi pipe outside the engine bay was fitted by the previous owner and is long gone...)




    The cylinder filter is off a gutlux (yes it hurts to say it!). The elbow on it was cut off, rotated and braised back on to suit the engine bay.


    I only had to make the hole a little bigger so i just snipped with tin snips and folded over the edge



    Tough as stainless steel brackets from a truck shop



    I used door trim off an old car to go around the hole.
    This is the only way i could figure out how to join the flexi pipe to the rubber elbow



    Nice 3" stainless pipe


    Good quality fittings


    Finished product. Im still not sure how much water gets in the end when its raining, especially when when parked on a bit of a hill, but ive checked plenty of times and ive never found any decent amount of water in the filter...
    Also note that i have spun the hose clamps around so that the nut is pointing down and hidden from view now.
    Last edited by taslucas; 20th March 2013 at 08:03 AM.
    91 GQ Ti TB42 Wagon/Pertronix 2/Nomad Heavy Duty Auto/33"STTs/2"Springs/Uniden/Stainless Snorkel/Spotties
    --TAS--Under Down under--


    Get your forum stickers here!

  4. The Following 3 Users Say Thank You to taslucas For This Useful Post:

    bigguwesty (20th March 2013), blocko05 (2nd August 2015), MC97GQ (20th March 2013)

  5. #3
    Patrol God taslucas's Avatar
    Join Date
    Aug 2011
    Location
    North West Tas
    Posts
    10,647
    Thanks
    3,261
    Thanked 6,617 Times in 3,583 Posts
    Mentioned
    51 Post(s)
    Tagged
    1 Thread(s)
    Heres a mates.
    He got rid of the LPG setup and wanted to use the original airbox and filter. The idea was to run steel over the hot side of the engine so that the heat wouldnt affect the flexi pipe etc. The work was done by the local plumbing shop from his design. To save money he just got them to spot weld instead of seam weld and then just ran some sickaflex around the joins.





    The old square to round conundrum


    Pretty good workmanship
















    Last edited by taslucas; 24th March 2013 at 04:04 PM.
    91 GQ Ti TB42 Wagon/Pertronix 2/Nomad Heavy Duty Auto/33"STTs/2"Springs/Uniden/Stainless Snorkel/Spotties
    --TAS--Under Down under--


    Get your forum stickers here!

  6. The Following 2 Users Say Thank You to taslucas For This Useful Post:

    blocko05 (2nd August 2015), MC97GQ (20th March 2013)

  7. #4
    Advanced
    Join Date
    Dec 2012
    Location
    Picton
    Posts
    37
    Thanks
    3
    Thanked 1 Time in 1 Post
    Mentioned
    0 Post(s)
    Tagged
    0 Thread(s)
    Have you got any closer shots of what you did on top of the carby ? Or can you describe what you did ? Looks good tho that's what I've been looking for cheers

  8. #5
    Patrol God threedogs's Avatar
    Join Date
    Jun 2012
    Location
    Melb
    Posts
    31,638
    Thanks
    10,350
    Thanked 9,962 Times in 7,394 Posts
    Mentioned
    113 Post(s)
    Tagged
    2 Thread(s)
    Just putting this out there but is there any kind of formula to work all this out or is it just extend it??????????
    As Too long may not be ideal, Just asking.??
    04 ST 3lt auto, not enough Mods to keep me happy, but getting there

  9. #6
    Patrol God taslucas's Avatar
    Join Date
    Aug 2011
    Location
    North West Tas
    Posts
    10,647
    Thanks
    3,261
    Thanked 6,617 Times in 3,583 Posts
    Mentioned
    51 Post(s)
    Tagged
    1 Thread(s)

    Re: Custom Snorkel setups

    Quote Originally Posted by Matty13 View Post
    Have you got any closer shots of what you did on top of the carby ? Or can you describe what you did ? Looks good tho that's what I've been looking for cheers

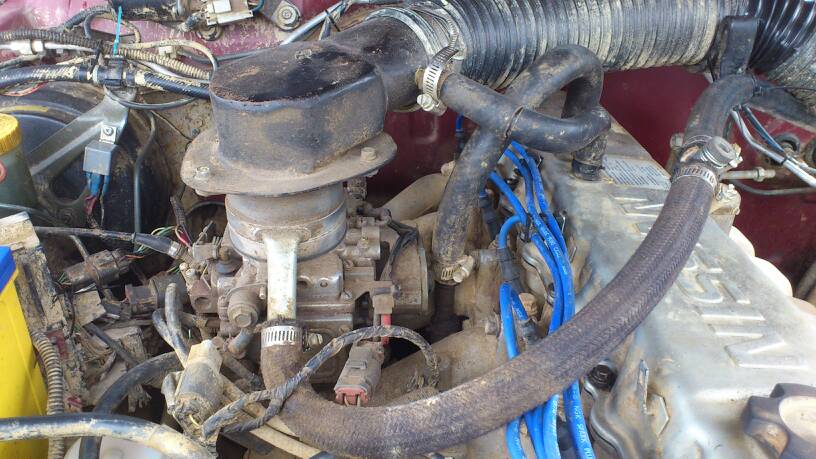

    Here you go, This was on the car when I got so I don't know what it's been made out of.
